Powerflow_zh | Rev. 4a
Ersa GmbH
502 / 561
9 |

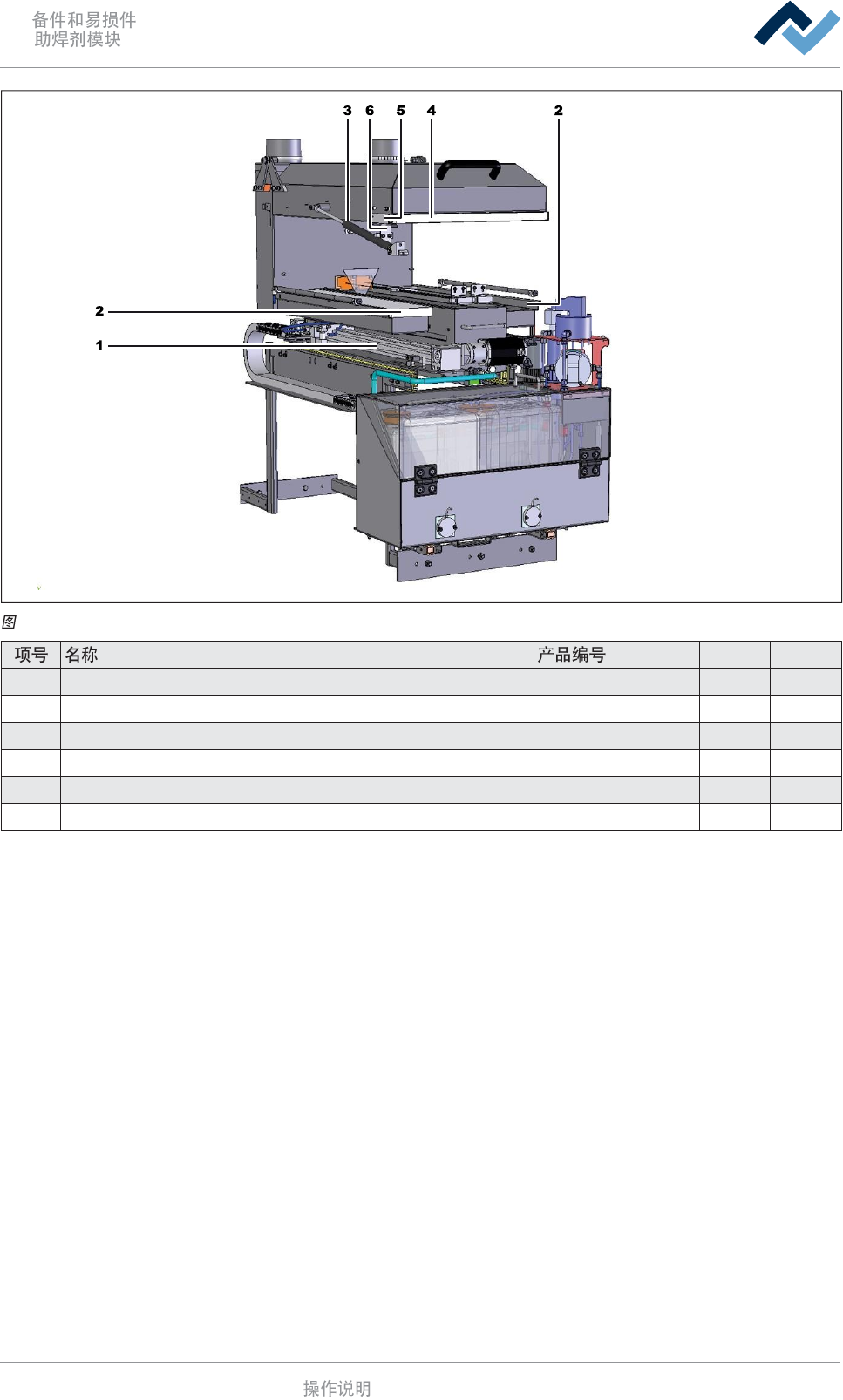

188: EM100-26-00a
A
B
1
伸缩轨 Telescope Rail 1066mm
169597
x
2
不锈钢过滤网 Metal Filter SS 785 x 120 x 22 *15
176957
x
3
Gas spring (160 N)
6FE-GAS-160N-1
x
4
不锈钢过滤网 Metal Filter 460x760x22
177112
x
5
Safety sensor, actuator
6ESCHN25-ZT1
x
6
Safety sensor
6ESCHN25
x
Powerflow_zh | Rev. 4a
Ersa GmbH
503 / 561
9 |
9.3.2
一
[普通喷头] [超声波喷头]
【普通喷头】
[X]
189: EM100-26-07-00Af
A
B
1
Metal tube
202345
x
2
Quick coupling body for control cabinet assembly
91090
x
2
Sharp ring kit for quick coupling 91090, 91091 (without image)
213396
x
3
Quick coupling, with closing
91091
x
4
助焊区马达泵 Dunker BG45x30SI (轴直径5mm,NEW)
374209
x
5
Screw-in angle
180994
x
6
Filter with bolting
129951
x
7
Straight screwing
95010
x
8
助焊剂泵 Fluxer Pump 24V, 1500 1/min, 1/8"NPT
6PUMG204-3
x
Powerflow_zh | Rev. 4a
Ersa GmbH
504 / 561
9 |
[Z]
190: EM100-26-07-00Ag
A
B
1
Angle screwing G1/8, D6
6BO387
x
2
Screw-in angle M5
94178
x
3
Screw-in angle with cap nut
128566
x
4
Tube 6x1 LW4, PU, blue, bulk stock
6BO230
x
5
Hose, PTFE, bulk stock
6SPTFE04.0X0.8
x
6
Hose Ø 6/4, PTFE, bulk stock
6SPTFE06X1
x
7
Pressure spring, 08x8x1000
177580
x
