Powerflow_zh | Rev. 4a
Ersa GmbH
538 / 561
9 |
213: EM100-61-08-00f
A
B
1
Insertion aid, left side
231224
x
2
Insertion aid, right side
231225
x
3
Clamping plate, right side
232793
x
4
Clamping plate, left side
231275
x
5
垫片 Washer
231286
x
6
Guide piece
231431
x
7
Distance piece
231287
x
8
Adapter
231273
x
Powerflow_zh | Rev. 4a
Ersa GmbH
539 / 561
9 |

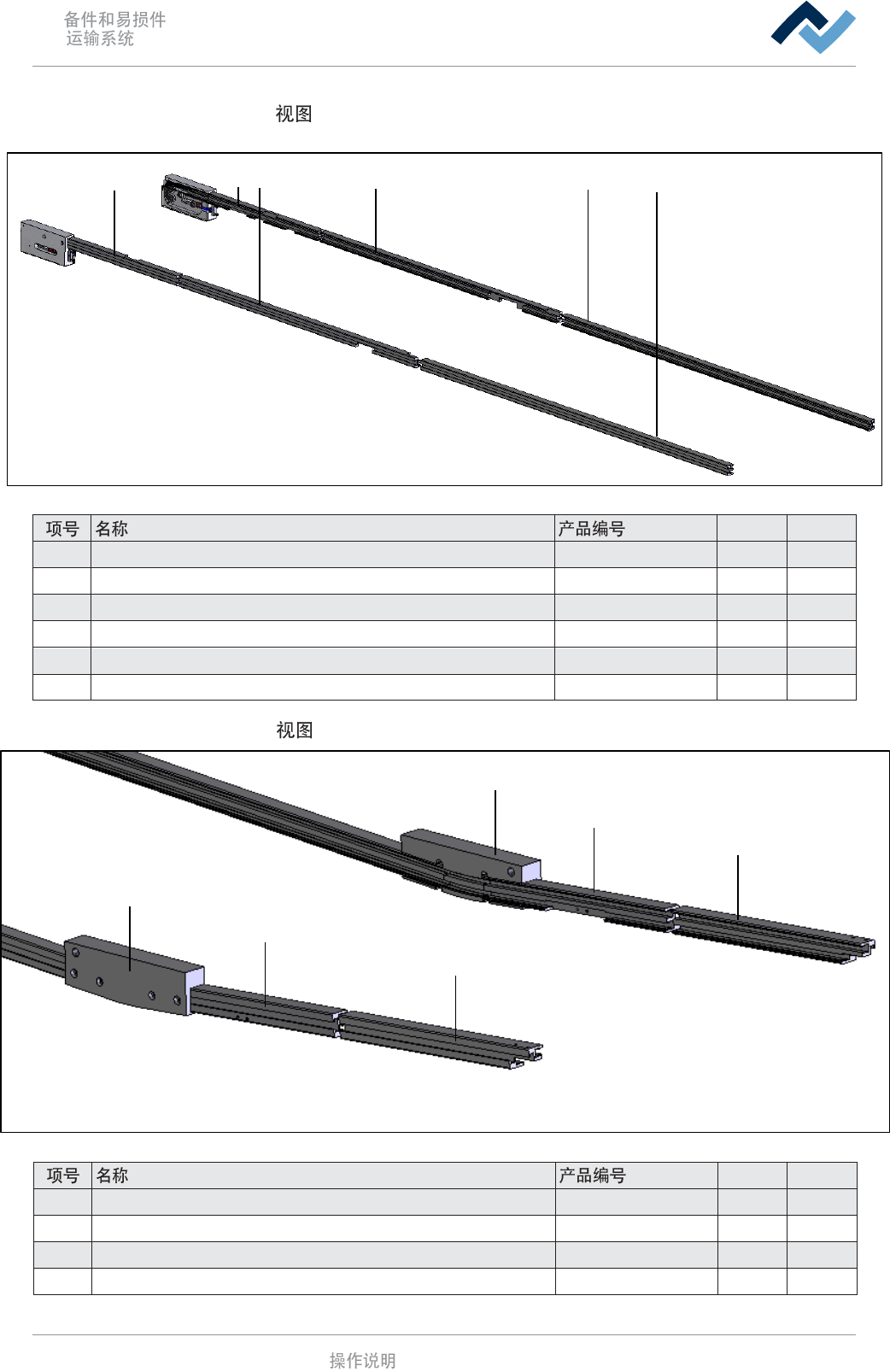

[X]
[Y]
A
B
1
Connection Curve 7°
97145
x
2
Guiding Rail for drive,290mm
97186
x
3
Rail 3,left
86899A
x
4
Rail 3,right
86895A
x
A
B
1
Rail Fixed Rail 875mm
227614
x
2
Rail Flexible Rail 875mm
227615
x
3
Rail 1140mm(3 zone)
227611
x
4
Rail 1890mm(4 zone)
227610
x
5
Rail Infeed Flexible Rail left 515mm
227613
x
6
Rail Infeed Flexible Rail right 515mm
227612
x
1
2
3
,4
3
,4
1
2
4
1
2
3
6
5
Powerflow_zh | Rev. 4a
Ersa GmbH
540 / 561
9 |
9.6.2
214: EM155-61-01-00a
[W]
215: EM155-61-01-00b
A
B
1
Pressure spring, 11N
269950
x
2
Downholder
86506
x
3
Chain wheel
86495
x
4
Bearing SS625-2TS/C3, thermostable up to 280°C
100877
x
5
锥齿轮1:1 V90型，E型 Bevel gear, 1:1, type V90, version E
6WGTRETSF
x
1 3 2 5 4
