Powerflow_zh | Re v. 4a Ersa Gm bH 550 / 561 9 | 9.6.4 223: EM15 5- 62 - 01 - 00a [X ] 224: EM15 5- 62 - 01 - 00b A B 1 Sliding piec e 94 091 x 2 Chain wheel Z =1 7 94 095 x 3 Gear motor BG65x25 PL G52 288:1 6MO-00 4 x 4…
Powerflow_zh | Rev. 4a
Ersa GmbH
549 / 561
9 |
视图 [X]
13
图

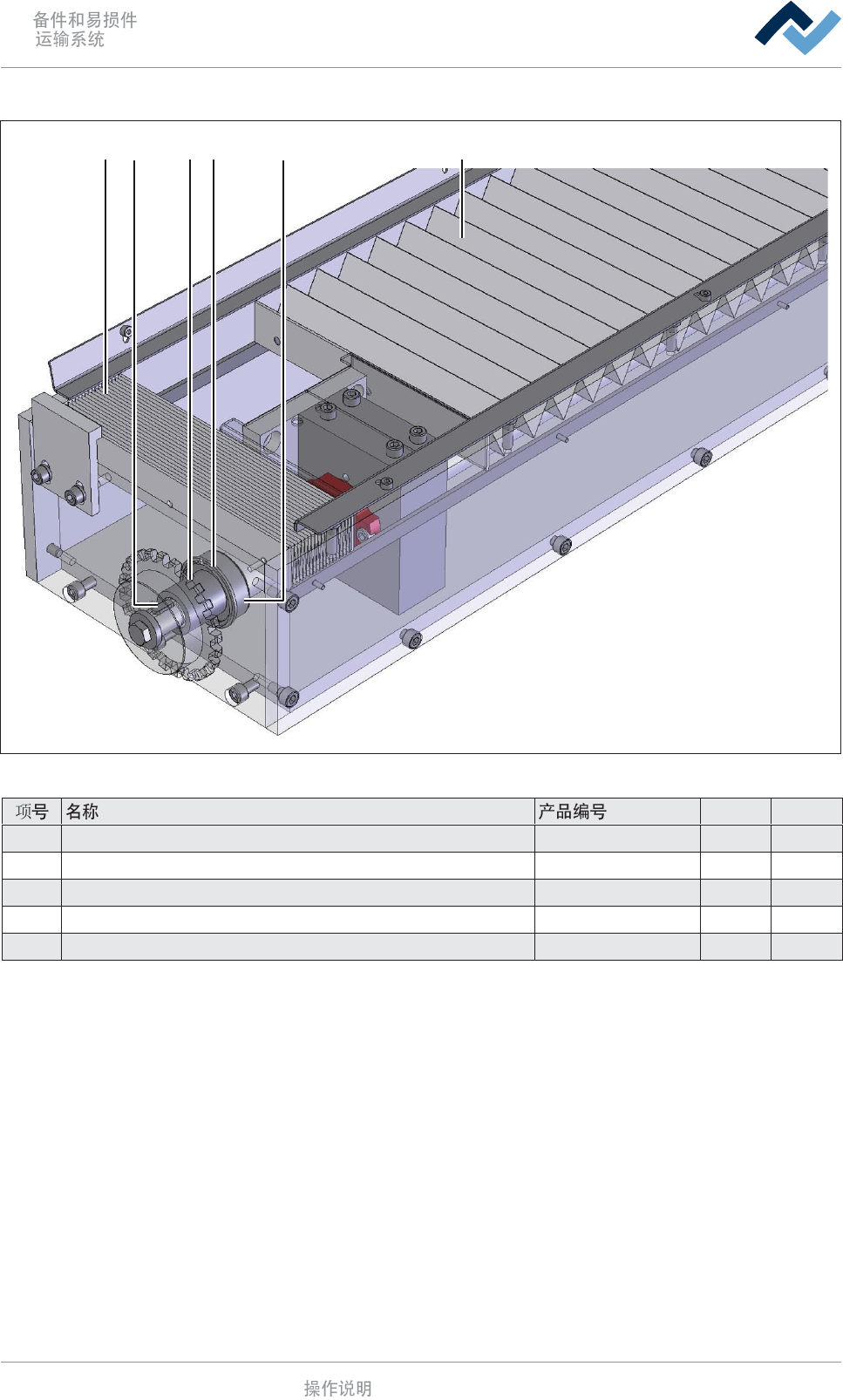

222: EM155-61-05-00c
项
A
B
1
Expansion bellows
177906
x
2
Locking ring
6SER-I420472
x
3
Chain wheel Z=26
94153
x
4
Bearing 6004.2ZR/HT, thermostable up to 150°C
6LA60042ZR-T
x
5
Feather key DIN 6885 A 5x5x14
98347
x
1 5 3 2 4 1
Powerflow_zh | Rev. 4a
Ersa GmbH
550 / 561
9 |
9.6.4

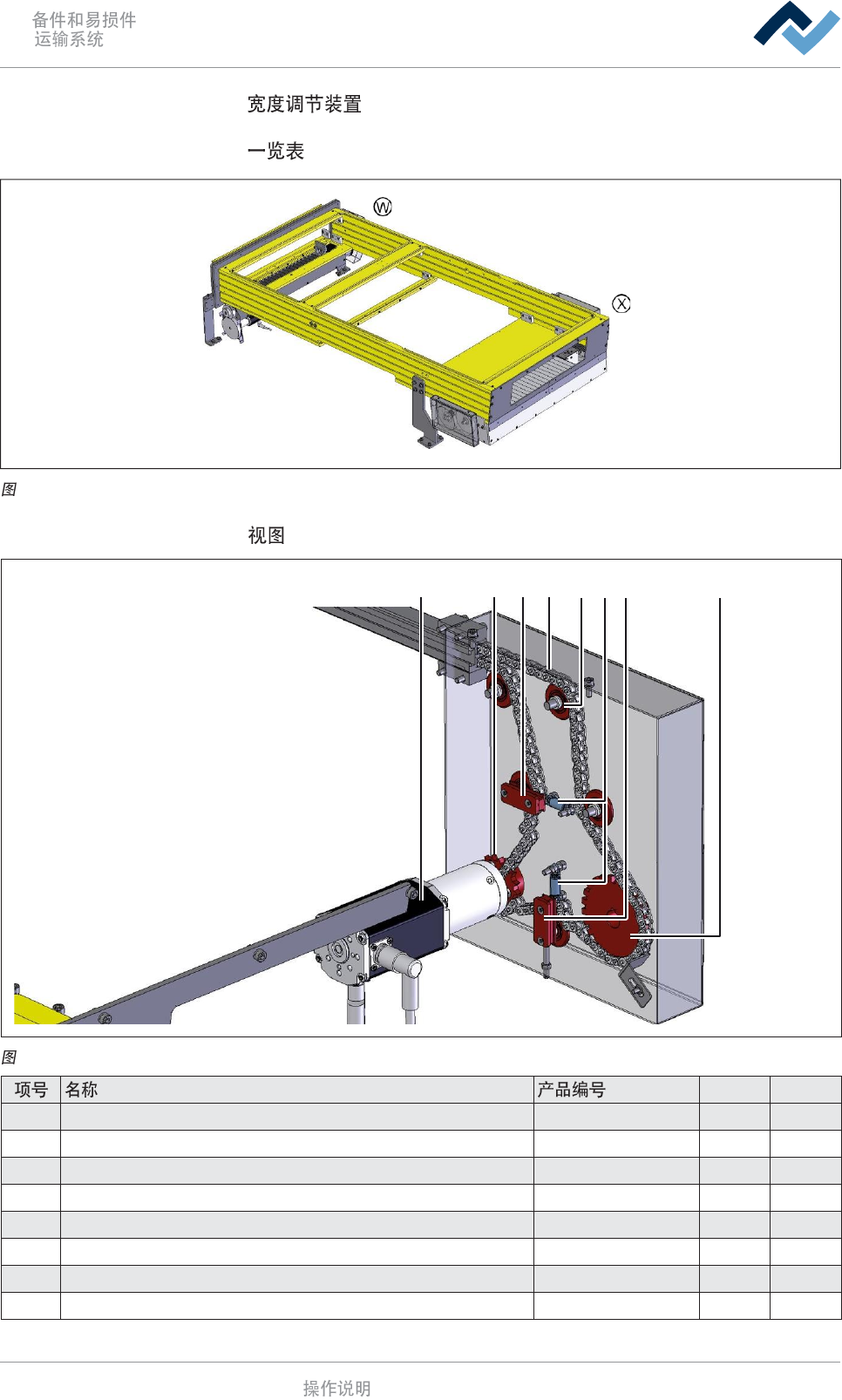

223: EM155-62-01-00a
[X]
224: EM155-62-01-00b
A
B
1
Sliding piece
94091
x
2
Chain wheel Z=17
94095
x
3
Gear motor BG65x25 PLG52 288:1
6MO-004
x
4
Traction spring RZ-110I
94170
x
5
Chain 9.525 x 5.72, 4,5 m length
6KE06B-1G67NS
x
6
Chain joint
6KES06B-1G67NS
x
7
带滚珠的惰轮 Reversing pulley with bearing
6IN249-0
x
8
Chain wheel Z=26
94153
x
3 2 1 5/6 7 4 1 8
Powerflow_zh | Rev. 4a
Ersa GmbH
551 / 561
9 |
[W]
225: EM155-62-01-00c
A
B
1
Chain wheel Z=26
94153
x
