SIPLACE HF Replacing the Gantry [030 06781-xx ] Serv ice Gan tri es 3 Copy ri ght © 2 00 3 S iem ens D emat ic SDEA 1 0019 4307- 01 Iss ue 12/2 003 3-3 2 1 Unplug the p roximity switc h cable (2) a nd pull it forwards …
3
Service
Gantries
SIPLACE HF
Replacing the Gantry [03006781-xx]
3-2
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
5
5
6
1 4
3
2
1. X-drive (primary) with head mount
2. X-mount with trailing cable
3. Head adapter board
4. Mount with PCB camera
5. Head board
6. Trailing cable console
Dismantle the placement head.
Remove the head adapter board (3). The x-mount fixtures are
now (2) accessible.
Unplug the following cables from the head board (5) and
remove them from the x-mount (2):
X motor cable
X-axis scanner head
Temperature sensor (if supplied).
SIPLACE HF
Replacing the Gantry [03006781-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-3
2
1

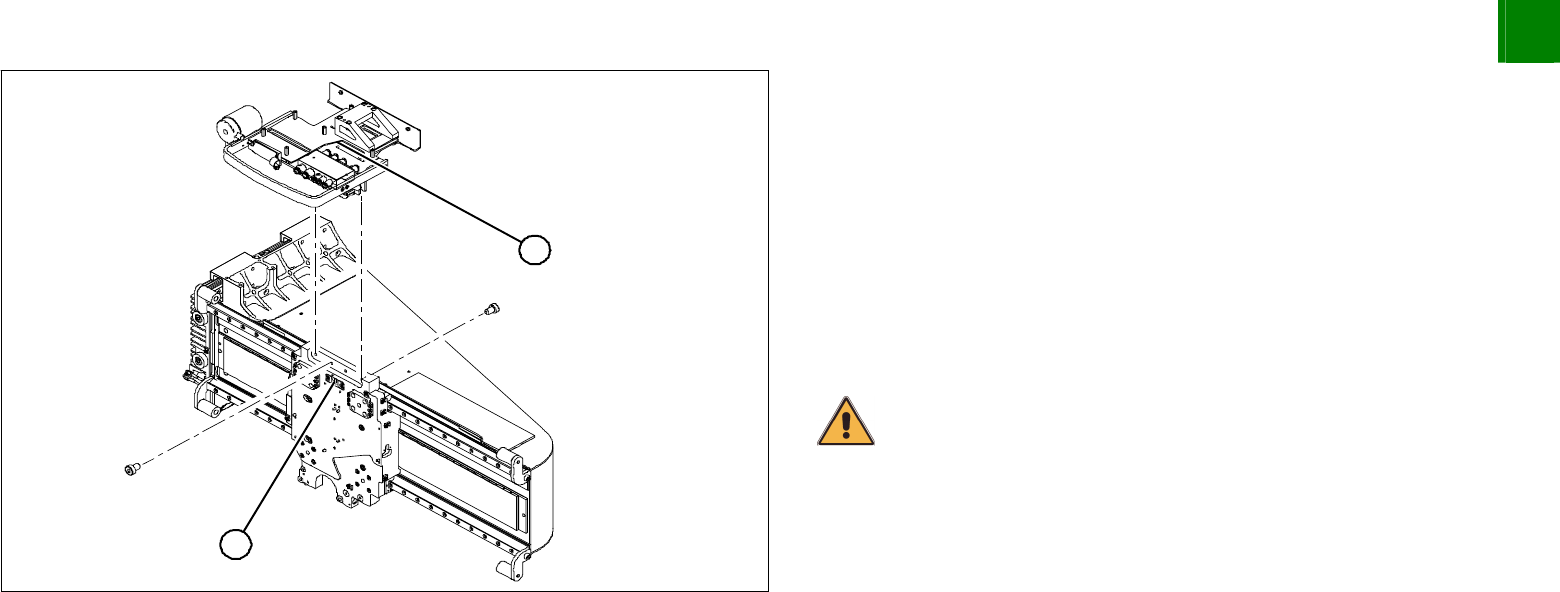

Unplug the proximity switch cable (2) and pull it forwards, out of
the head mount.
Undo the 8 screws (4 x at front/ 4x at back) fastening the x-
mount (1) and pull these up and out, together with the trailing
cable.
Loosen the two pressure plates on the gantry.
Remove the trailing cable as far as the trailing cable console.
Fasten the x-mount at a suitable point.
CAUTION
Make sure that the flat ribbon cable and the pneumatic hoses are not
rubbed against any parts or kinked. Watch out for sharp edges.
3
Service
Gantries
SIPLACE HF
Replacing the Gantry [03006781-xx]
3-4
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
1
3
2
Undo the 4 screws fastening the PCB camera mount (1).
Remove the complete unit, including PCB camera (3) and
damping bracket (2).
Remove the connection cable fixtures from the gantry.
Fasten the mount at a suitable point. Take care not to damage
the camera.
