SIPLACE HF
Replacing the Trailing Cable [03003706-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-17
2
5
4
6
6
1
3
Install the trailing cable console (1). Use loctite 241 to secure it.
Starting from the trailing cable console (1), run the flat ribbon
cable and hoses to the appropriate connections:
Pneumatic distributor (2)
Trailing unit interface gantry (3)
Gantry interface (4)
Gantry distributor (5)
Plug in all connections/terminals. Observe the correct connector
assignment.
Install the two pressure plates (6) at the power track chain. Use
loctite 241 to secure it.
3
Service
Gantries
SIPLACE HF
Replacing the Trailing Cable [03003706-xx]
3-18
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
5
1
3
2

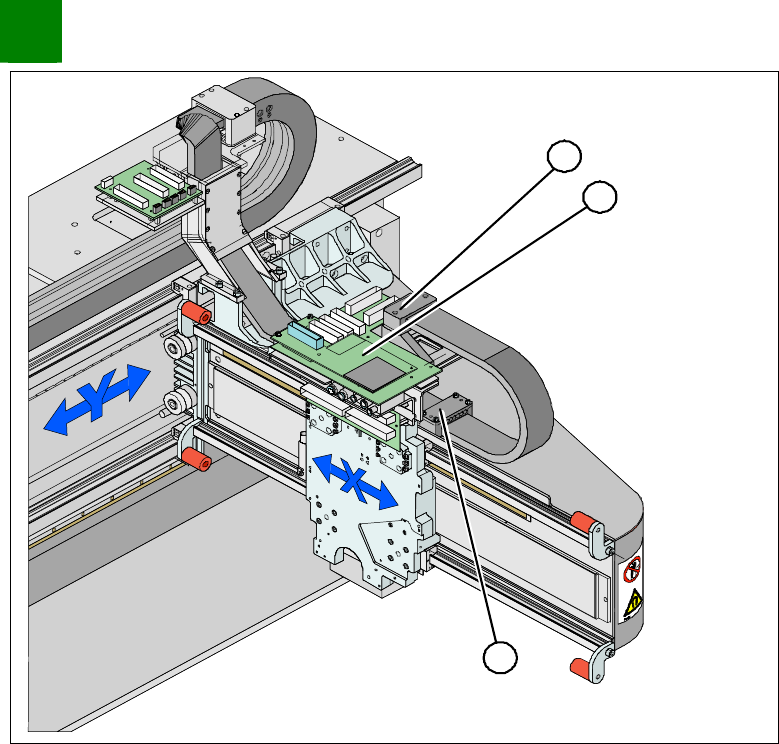

Reconnect the cooling tubes to the Y-axis motor.
Install the 3 pressure plates (1) on the gantry and head mount
(2).
Install the head board (3). Make sure you do not lose the
contact disks or spacer bolts.
Plug in all connections/terminals. Observe the correct connector
assignment.
Fasten new cable ties at the original points.
SIPLACE HF
Replacing the Y-Drive (Primary) [03006768-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-19
3.1.3 Replacing the Y-Drive (Primary) [03006768-xx]
Disassembly
2
3
1
3
Dismantle the gantry and put it in a suitable place (1).
Remove the cable ties holding the connection cable.
Remove the proximity switch mount (2) and proximity switches.
Undo the 16 fastening screws (3). Make sure you do not lose
the insulating plates underneath the screws. These must be
replaced after completing service work.
CAUTION
The fastening screws have been secured with loctite.
