3 Serv ice Gan tri es SIPLACE HF Replacing the T railing Cable [03003706 -xx] 3-16 0019 4307- 01 Iss ue 12/2 003 Copyr igh t © 2 003 S ie mens D em atic SD EA 1 Installation 2 5 1 4 3 2 CAUTION Handle the new trailing ca…
SIPLACE HF
Replacing the Trailing Cable [03003706-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-15
1
1
2

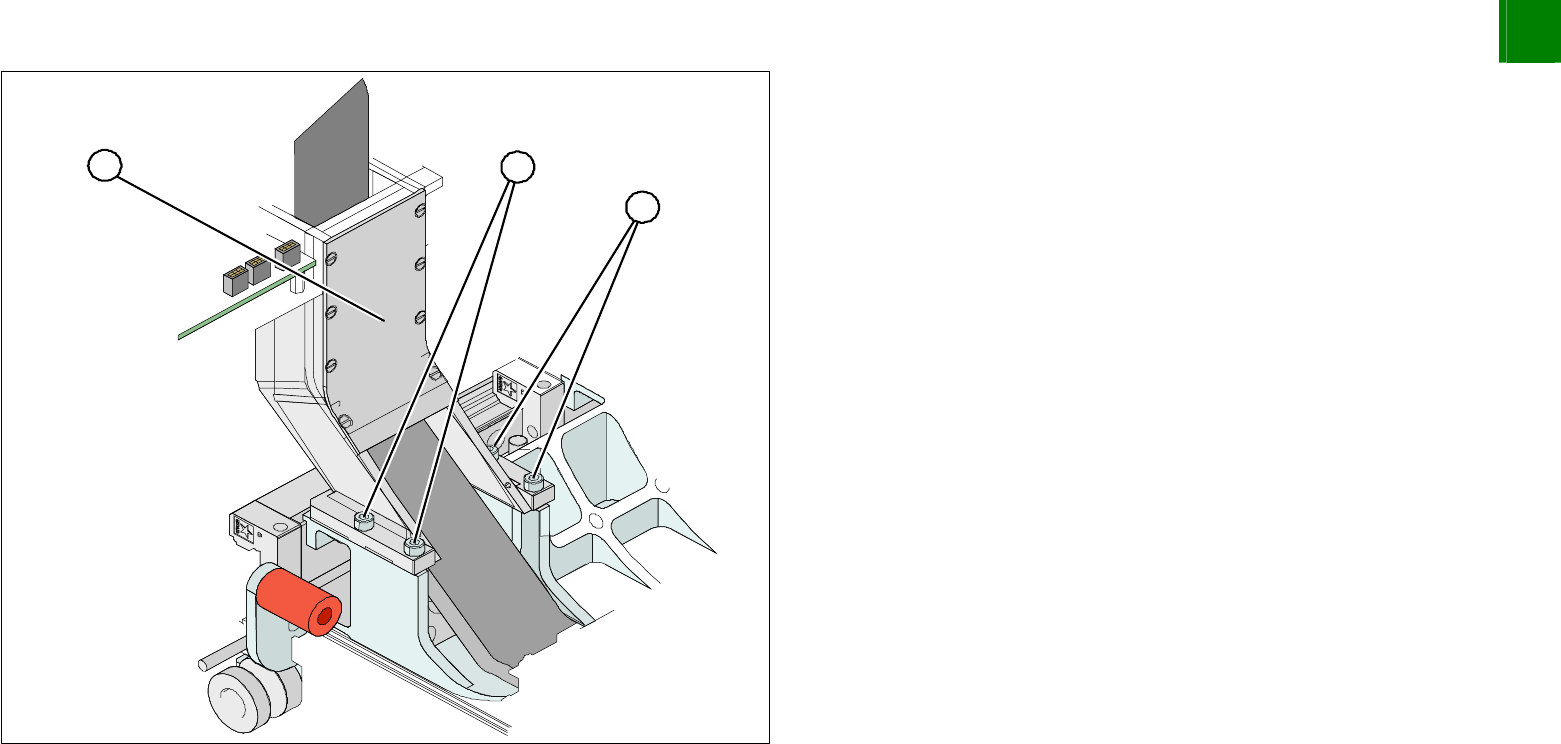

Undo the 4 screws (1) fastening the trailing cable console (2)
and carefully remove the complete trailing cable from the
machine.
If you have dismantled the pneumatic distributor, now
disconnect the hoses.
3
Service
Gantries
SIPLACE HF
Replacing the Trailing Cable [03003706-xx]
3-16
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
Installation
2
5
1
4
3
2
CAUTION
Handle the new trailing cable with care and enlist the help of a
second person. Make sure that the flat ribbon cable and the
pneumatic hoses are not rubbed against any parts or kinked. Look
out for sharp edges.

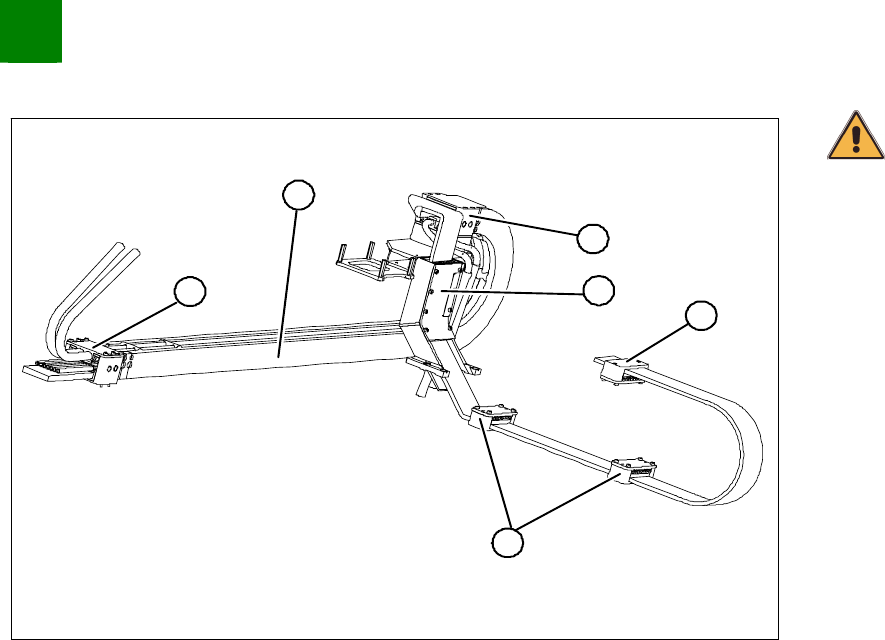

1. Complete trailing cable unit
2. Pressure plates on the power track chain
3. Pressure plates on the gantry
4. Pressure plate on the head mount
5. Trailing cable console
Carefully insert the new trailing cable (1) into the prescribed
position. Make sure you do not twist it.
Temporarily fasten the ends to the machine frame (by tying
them etc.).
SIPLACE HF
Replacing the Trailing Cable [03003706-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-17
2
5
4
6
6
1
3

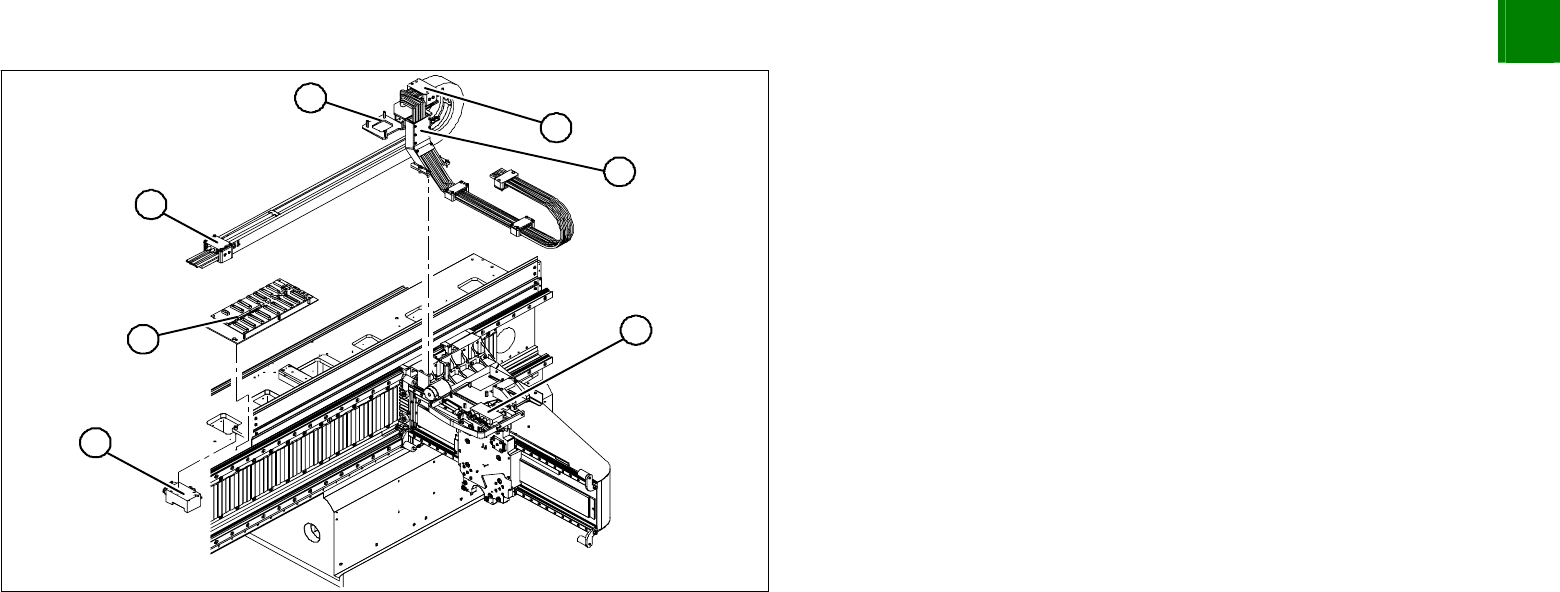

Install the trailing cable console (1). Use loctite 241 to secure it.
Starting from the trailing cable console (1), run the flat ribbon
cable and hoses to the appropriate connections:
Pneumatic distributor (2)
Trailing unit interface gantry (3)
Gantry interface (4)
Gantry distributor (5)
Plug in all connections/terminals. Observe the correct connector
assignment.
Install the two pressure plates (6) at the power track chain. Use
loctite 241 to secure it.
