Sealing Drill Holes Where Necessary
Depending on the head configuration, different holes are used to fasten the head. Those not required must be sealed.
This prevents cooling air from escaping.
Template for 12/6 C+P head (03011690-xx)
Template for twin head (03011693-xx)
Grub screws M 4x6-ST (00309422-xx)
1
2
Clean all holes with a pipecleaner and ethanol, to remove
residual adhesive.
Place the respective template on the centering pins of the head
mount and attach it.
Screw the grub screws through the holes on the template
(secure with Loctite 241) into the head mount.
The grub screws must be sunk into the head mount.
SIPLACE HF
Replacing the X-Drive (Primary) [00375245-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-31
3.1.4.1 Installation Checks for Guide Slide with Diaphragm Gland
Installation Check

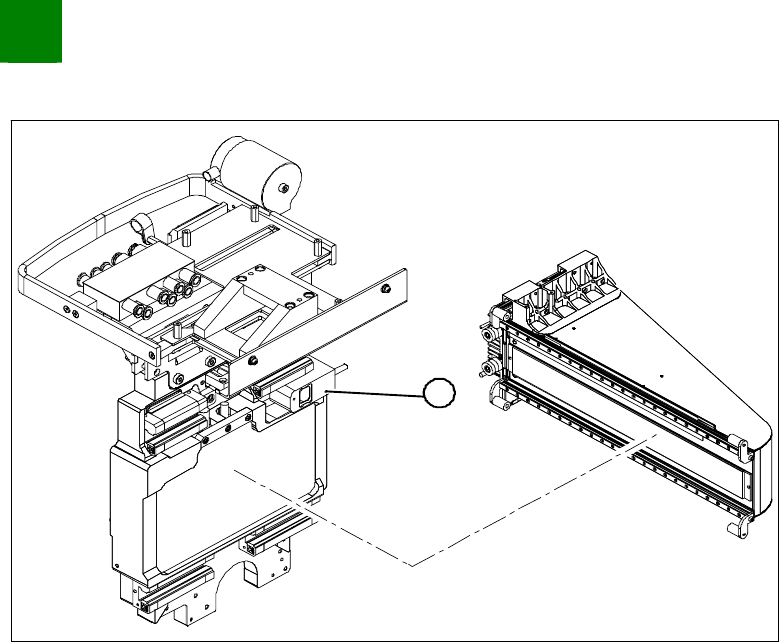

1
3
2
From behind, shine a nonmagnetic Xenon flashlight between
the X-drive and the magnetic strip (1).
Between the motor support (2) and the guide slide (3) you
should see a gap.
If not, the X-drive must be dismantled again and remounted.
Check the distance between the X-drive and the magnet cover
with a 0.4 mm thickness gauge (plastic).
To do this, place the thickness gauge between the X-drive and
the magnet cover and then push the X-drive back and forth,
along the entire length - movement should be smooth with no
sticking or jamming.
3
Service
Gantries
SIPLACE HF
Replacing the X-Axis Read Head [03006472]
3-32
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
3.1.5 Replacing the X-Axis Read Head [03006472]

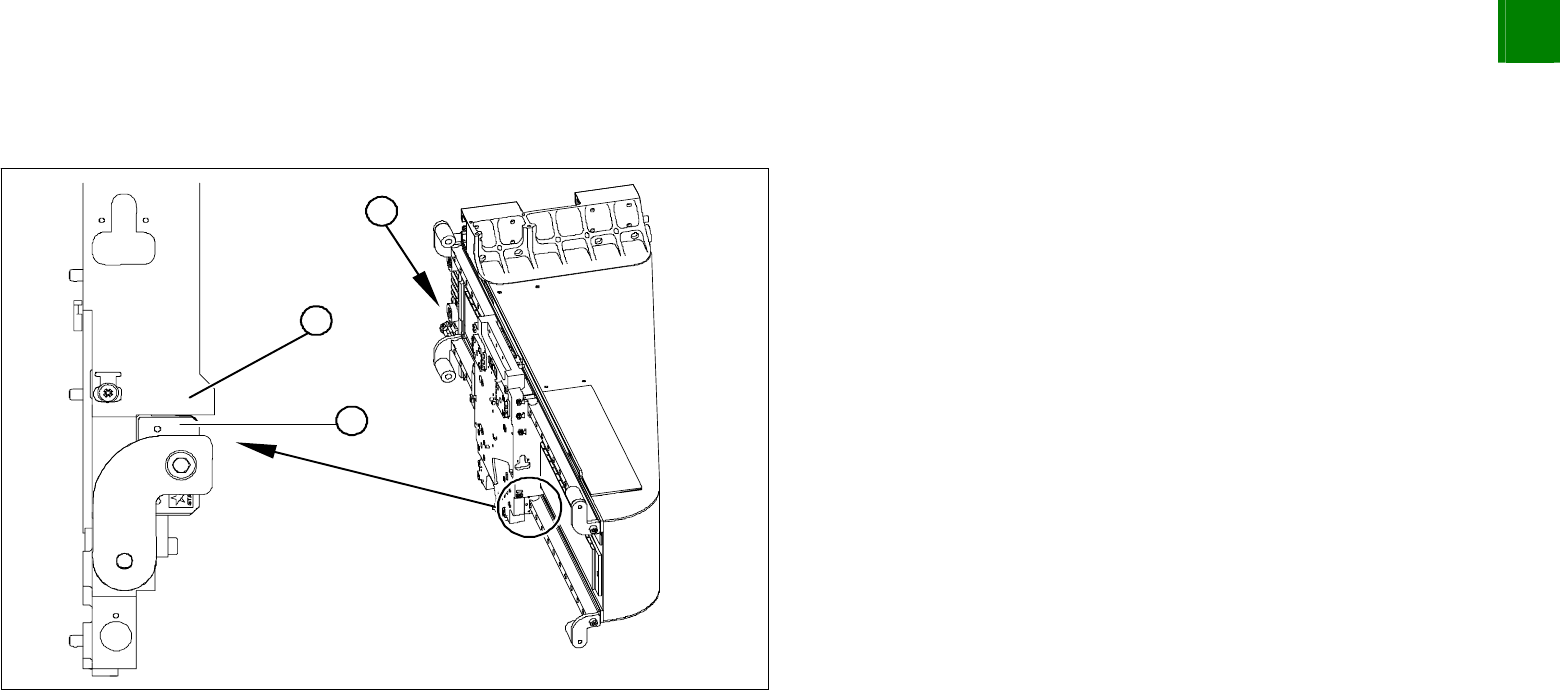

1
1. Position of the X-axis read head
