SIPLACE HF
Replacing the Gantry [03006781-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-7
Installation
2
2
1
2

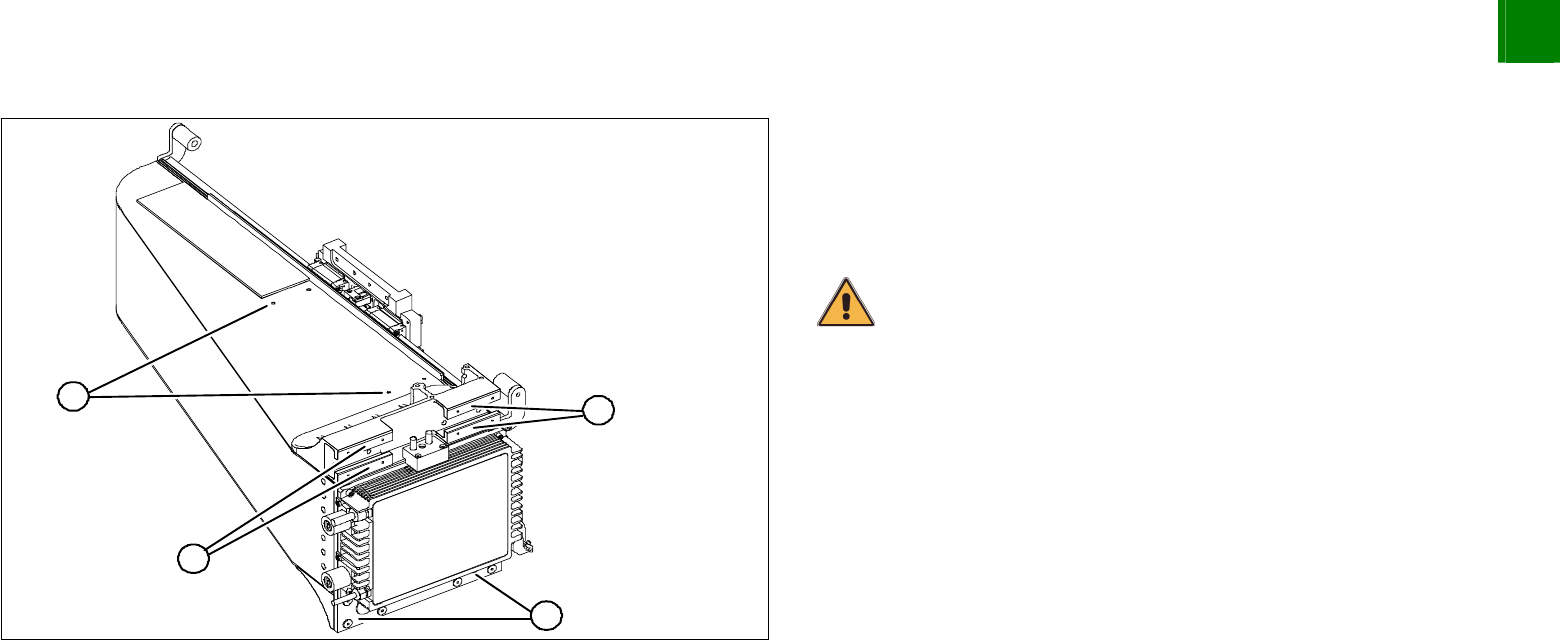

Check whether the holes (4 x M3) for the trailing cable pressure
plates (1) on the new gantry have been properly drilled through.
If not, drill through with the aid of a 2.5 mm drill and then cut a
M3 thread.
CAUTION
Take care not to damage the surface of the gantry during drilling.
Carefully rub the contact surfaces (2) of the new gantry with a
dressing stone and wipe clean with a cloth and ethanol.
3
Service
Gantries
SIPLACE HF
Replacing the Gantry [03006781-xx]
3-8
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
1
3
2

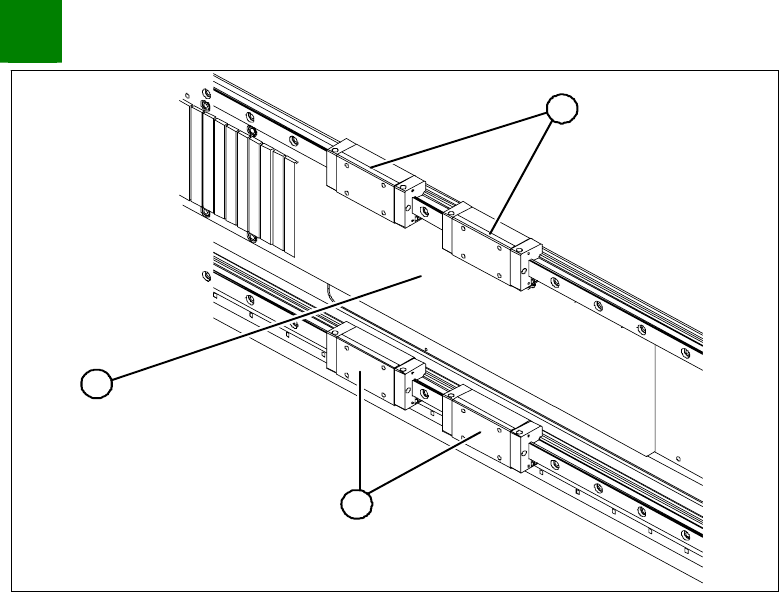

Carefully rub the following contact surfaces with a dressing
stone and wipe clean with a cloth and ethanol.
1. Magnet support
2. Contact surfaces of the 4 guide slides
3. Contact edges of the 4 guide slides
Enlist the help of a second strong person. Lift the gantry up to
the guide slides and secure the gantry at the top with two
screws (M4 x 14).
Then loosely screw in the remaining screws. Observe the
correct screw lengths.
SIPLACE HF
Replacing the Gantry [03006781-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-9
2
1
2
Do not tighten the fastening screws yet!

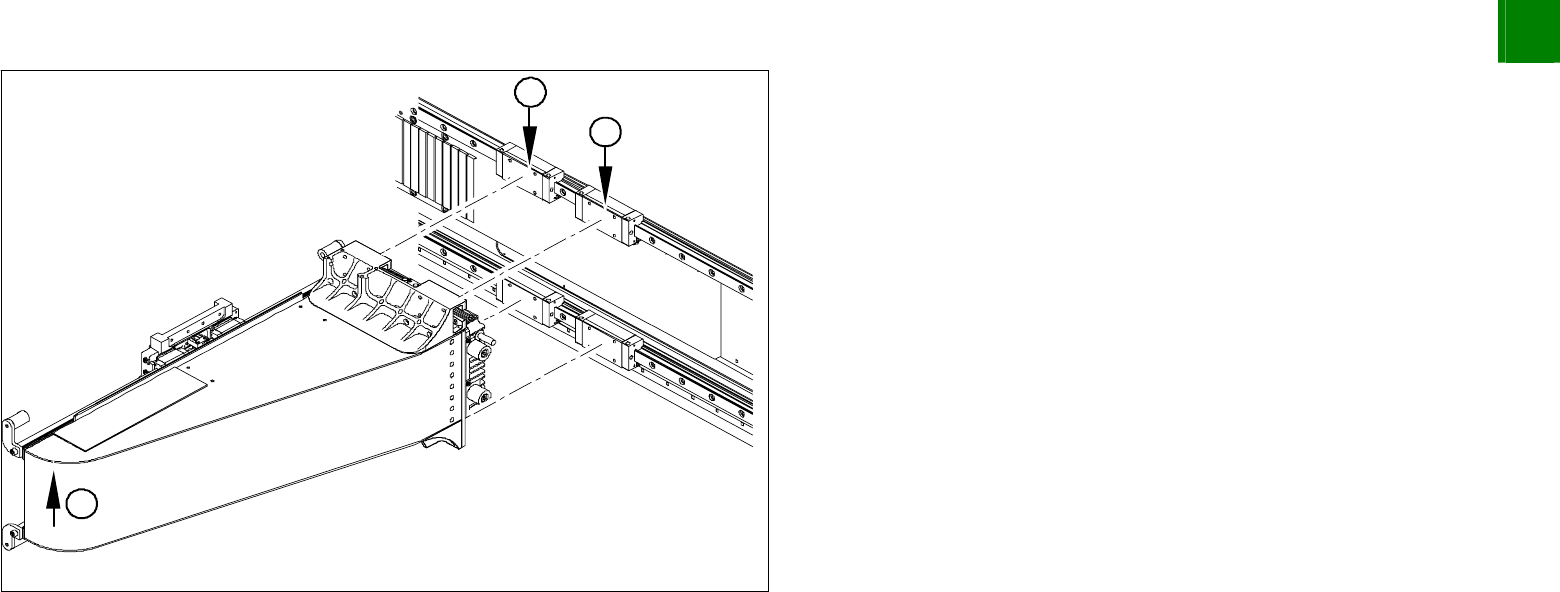

Lift the far end of the gantry (1) so that the gantry rests on the
contact edges of the top guide slide (2).
Tighten the top fastening screws.
Then tighten all 16 fastening screws with the aid of the special
torque wrench (9.5 N).
