SIPLACE HF
Replacing the X-Drive (Primary) [00375245-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-25
1
3
2

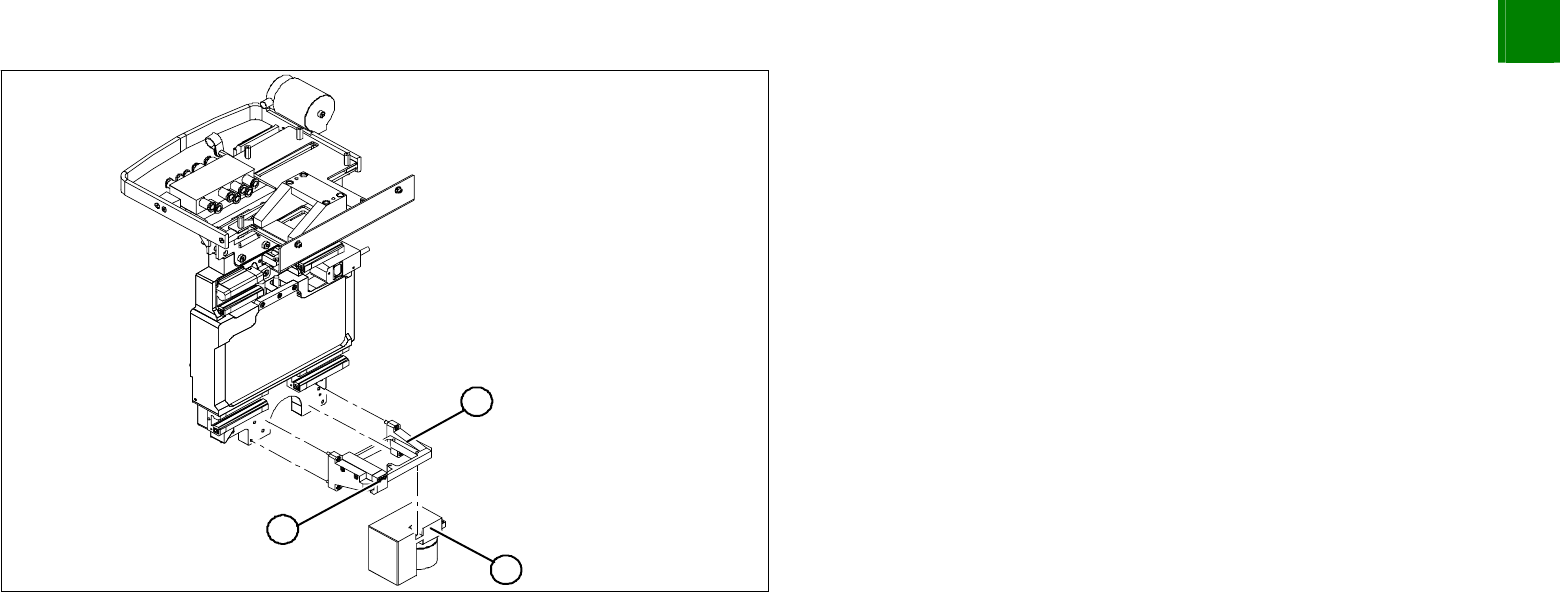

Undo the 4 screws fastening the PCB camera mount (1).
Remove the complete unit, including PCB camera (3) and
damping bracket (2).
Fasten the mount to a suitable part of the machine frame. Take
care not to damage the camera.
3
Service
Gantries
SIPLACE HF
Replacing the X-Drive (Primary) [00375245-xx]
3-26
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
1
2
2
1
2

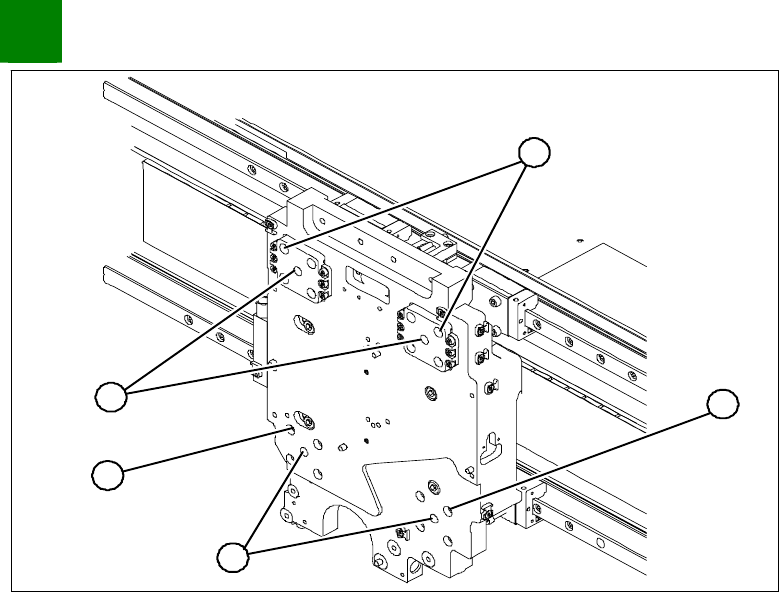

1. Insert the forcing screws
2. Locking screw M4x60
Screw 1 forcing screw (1) into each side, tightening until it
reaches the plate.
Remove one fastening screw (2) from each of the 4 sides.
Replace the fastening screw with a M4x60 locking screw. The
motor has now been secured against falling.
SIPLACE HF
Replacing the X-Drive (Primary) [00375245-xx]
Service
Gantries
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-27
1
1
1
2
2
M4 x 8
M4 x 18
M4 x 14
1

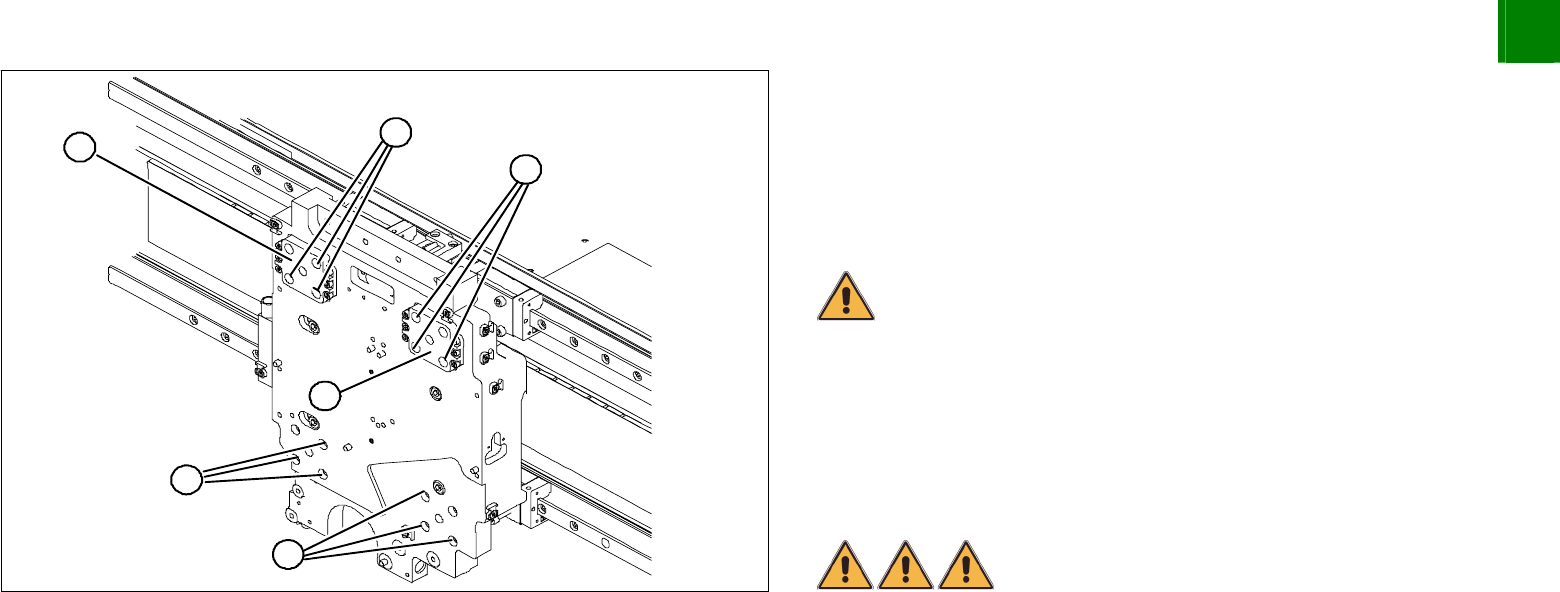

Unscrew the remaining 12 fastening screws (1).
CAUTION
The screws are of different lengths. These will need to be correctly
replaced later. To make sure there are no mistakes, mark the
positions of the screws.
CAUTION
Do not loosen or unscrew the screws secured with loctite on the Z-
axis compensation (2).
Tighten the forcing screws alternately so that the X-drive is
evenly pushed away from the magnetic field of the magnetic
strip. The X-drive is held by the 4 locking screws.
DANGER
Risk of serious or fatal injuries through trapping limbs.
Place a foam mat between the X-drive and the magnetic strip for
your own safety.
For additional safety, leave the forcing screws in place until the X-
drive has been removed from the machine.
Once the X-drive has left the strong magnetic field, it can be
taken out of the machine. To do this, remove the 4 locking
screws.
