SIPLACE HF Replacing the T oot h ed Belt fo r the Width Adju stment System Driv e [00369662-xx] Serv ice Modular PCB Convey or System 3 Copy ri ght © 2 00 3 S iem ens D emat ic SDEA 1 0019 4307- 01 Iss ue 12/2 003 3-37 3…
3
Service
Gantries
SIPLACE HF
Replacing the X-Axis Read Head [03006472]
3-36
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
1-

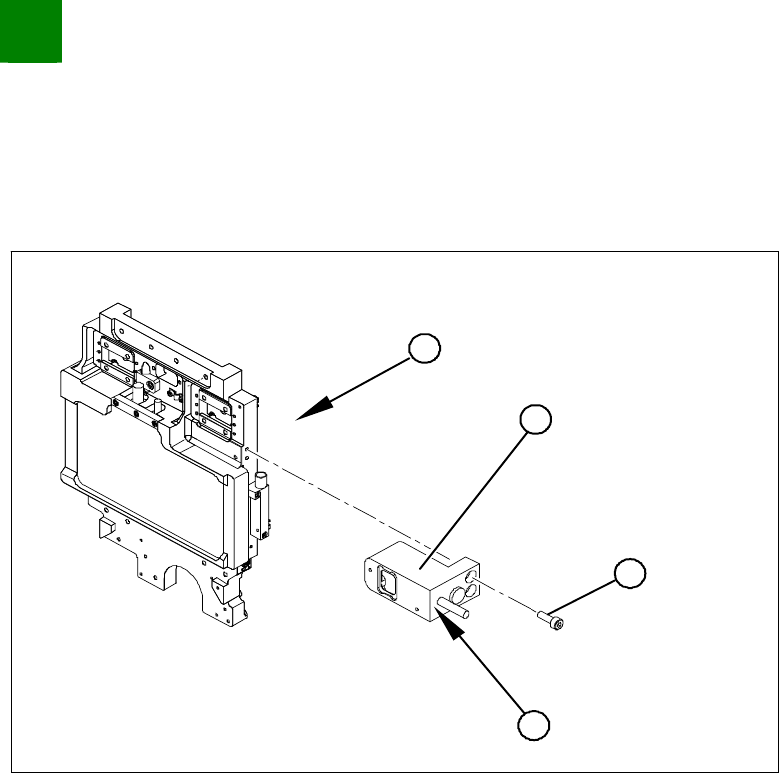

3.1.5.1 Adjusting the Grub Screw (trained service personnel only!)
Long Allen wrench size 1.5 for the grub screw on the read head
Varnished grub screw or locking varnish (Loctite No. 243)
4
3
1
2
Use the long Allen wrench (no ball head) to loosen the grub
screw (4) on the read head (2). The grub screw applies
pressure to the head mount and prevents unwanted movement
of the read head.
Remove the grub screw (4) and apply a little locking varnish
(Loctite No. 243) to it.
Screw the grub screw back in (4) until you are almost at the end
of the thread.
Install the read head (2) with the three fastening screws (3) so
that there is a gap of 0.4 mm between the read head and the
scale. Use the corresponding thickness gauge (plastic).
Tighten the grub screw (4) until you feel a slight resistance (not
too tight).
The read head is now fastened correctly.
SIPLACE HF
Replacing the Toothed Belt for the Width Adjustment System Drive [00369662-xx]
Service
Modular PCB Conveyor System
3
Copyright © 2003 Siemens Dematic SDEA 1 00194307-01 Issue 12/2003 3-37
3.2 Modular PCB Conveyor System
3.2.1 Replacing the Toothed Belt for the Width Adjustment System Drive [00369662-xx]
Tools
3 small or medium screw clamps
Overview
1
1
2
4
4
1
5
3
1. Adjustment units 1,2 and 3 with ball screws
2. Stepping motor for width adjustment system
3. Toothed belt for the drive
4. Lifting table plates BB1 and BB2
5. Direction of transport
Move the conveyor system to minimum width.
Undo the screws fastening the lifting table plates and remove
the lifting table plates from the lifting table unit.
3
Service
Modular PCB Conveyor System
SIPLACE HF
Replacing the Toothed Belt for the Width Adjustment System Drive [00369662-xx]
3-38
00194307-01 Issue 12/2003 Copyright © 2003 Siemens Dematic SDEA 1
Remove the sliders (1) on the deflection bearings of the width
adjustment system motor
