Service

Modular PCB Conveyor System

SIPLACE HF

Replacing the Toothed Belt for the Width Adjustment System Drive [00369662-xx]

3-42

3.2.1.1 Resetting the Parallelism of the Adjustment Unit

If a ball screw and adjustment unit have twisted out of position (the conveyor system will no longer run parallel), please

proceed as follows:



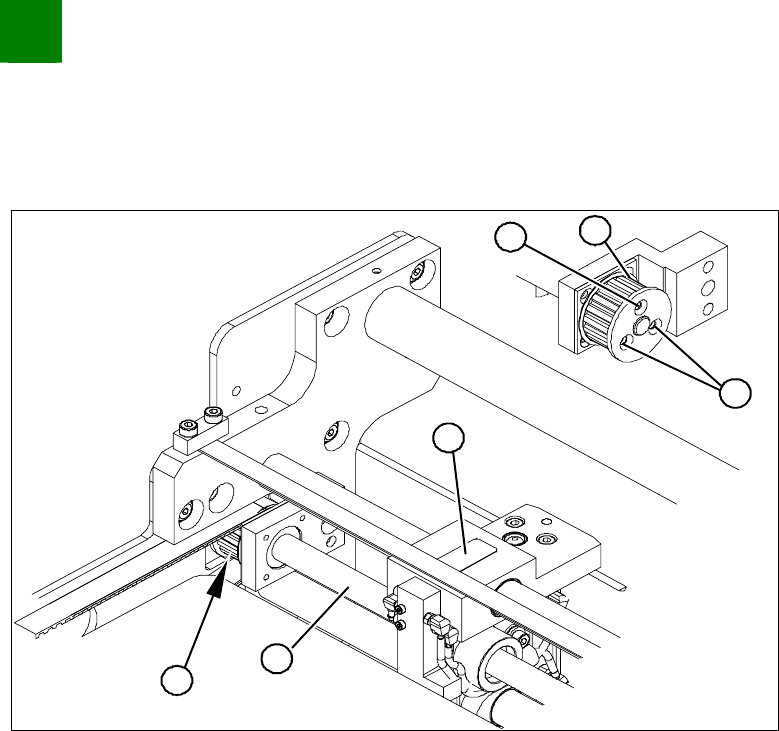

Unscrew the three fastening screws (2) on the toothed wheel

(1).

The ball screw (3) and adjustment unit (4) can now be manually

turned (hold onto the toothed wheel and revolve the ball screw).



Measure the distance between a fixed adjustment unit and the

fixed conveyor side.



Turn the loose ball screw (3) until the adjustment unit (4) is set

to this value.



Fix the position with the 3 fastening screws (2) on the toothed

wheel (1).

Index

Ball screws 3-39

Belt tension

Width adjustment 3-41

Cooling tubes 3-13

Diaphragm gland 3-22

Gap 3-31

Dressing stone 3-7

Drive toothed belt 3-41

Ethanol 3-7

Excenter axis 3-40

Flashlight

Xenon 3-31

Flat ribbon cable 3-13

Forcing screws 3-26

Guide slide 3-6

Head adapter board 3-2

Head board 3-2

Insulating plates 3-20

Locking screw 3-26

Loctite 3-13

Loctite 241 3-17, 3-20, 3-30

Magnet cover 3-5

Pneumatic hoses 3-24

Pressure plates 3-3, 3-13

Screw clamps 3-37

Sliders 3-38

Thickness gauge 3-10

Torque wrench 3-1, 3-20

Trailing cable 3-11

Trailing cable console 3-3, 3-12

X-drive 3-2

X-drive 3-23

Index

X-drive service pack 3-21 Y-drive 3-20
