2.3.4. Detailed explanation of the badmark transfer mode
In the badmark transfer, it is necessary to link the board succeeded from the upstream
machine to the badmark recognition result file.
Normally, it is enough to link the board to the badmark recognition result file at the board
carryin timing. However, when carrying in from the buffer conveyor, the board that has been
removed may not be linked to the badmark recognition result file. When operating with such
configuration, use the board ID. As the board ID is included in the badmark recognition
result file, the board can be strictly linked to the badmark recognition result file. This also
ensures the transferred data even in the configuration that carries in the board from the
buffer conveyor.
For details about settings, see section 4.1.2 Machine common setting.
A) “NON”
The board ID is not used. The badmark recognized by the upstream machine is saved
into the shared folder on the network as the badmark recognition result file.
This operation cannot be performed in the configuration including other machine.
Write
Read
BadMark_Inf.csv BadMark_Inf.csv
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50116 11/48

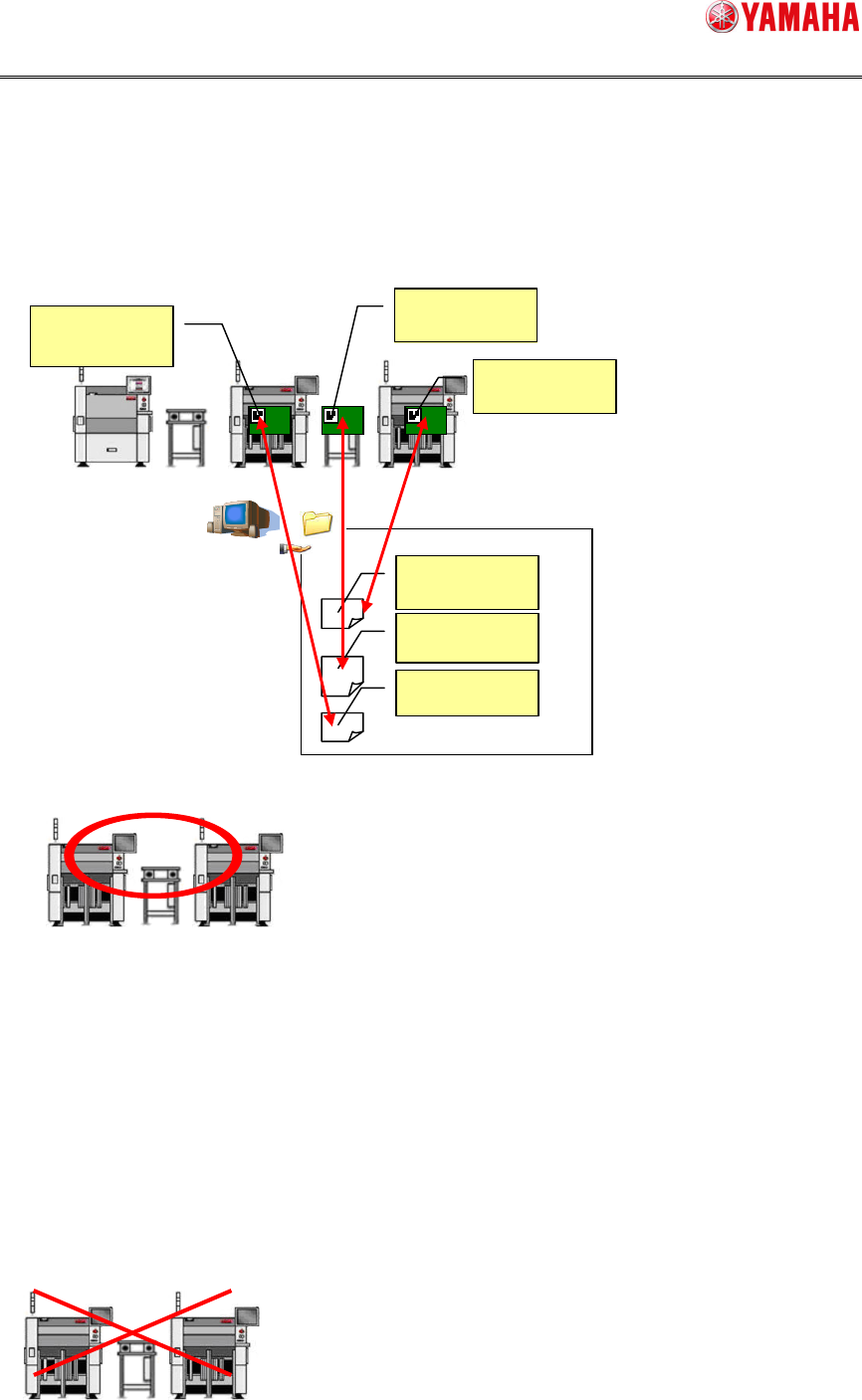

B) ”BOARD ID”
The operation is performed using the board ID. In this operation, the board ID is
included in the badmark recognition result file name. This identifies the board from the
badmark recognition result file.
(Caution) Do not use, when it is not "Actualfirst production".
This operation can be performed in the configuration including other machine.
C) ”TAKE OVER”
Bad mark transfer is performed in "Actualfirst production".
To use this function, an option function (Op003: Auto Program Change Over) is needed.
About "AutoPlanMode", it is necessary for top machine of the line to set it in "BOARD ID ".
And it is necessary for following machine to set it in "TAKE OVER".
(Caution) Do not use, when it is not "Actualfirst production".
This operation cannot be performed in the configuration including other machine.
YAMAHA01
YAMAHA02
YAMAHA03
YAMAHA01
YAMAHA02
YAMAHA03
BadMark_Inf_YAMAHA01.csv
BadMark_Inf_YAMAHA02.csv
BadMark_Inf_YAMAHA03.csv
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50116 12/48
D) ”NON (UNIQUE ID)”
The board ID is not used. In this operation, the badmark recognition order and
recognition result that can identify the board from multiple badmark recognition result files
are calculated. The board that has been carried in recognizes the badmark on the board
according to the calculated results. As a result, the board that is identified successfully is
linked to the badmark recognition result file. This can execute the badmark transfer in the
configuration including other machine without using the board ID.
Please use only Board Badmark, Block Badmark, one of Local Badmark.
Downstream machine
1.Reading all badmark recognition result files
2.Identifying the badmark to be recognized
Finds a badmark with features that can identify one board from multiple badmark
recognition result files.
In this data, when the badmark is detected (NG) at the lower left portion, this board
can be identified as the second board.
3.Recognizing the badmark on the board
4.Evaluating the badmark recognition result
When the badmark meets the badmark recognition result on the board, the
badmark recognition result is used.
OK,OK
OK,OK
OK,NG
NG,OK
OK,NG
OK,OK
OK,OK
OK,OK
OK,NG
NG,OK
OK,NG
OK,OK
OK,NG
NG,OK
?
FIND
Not found
