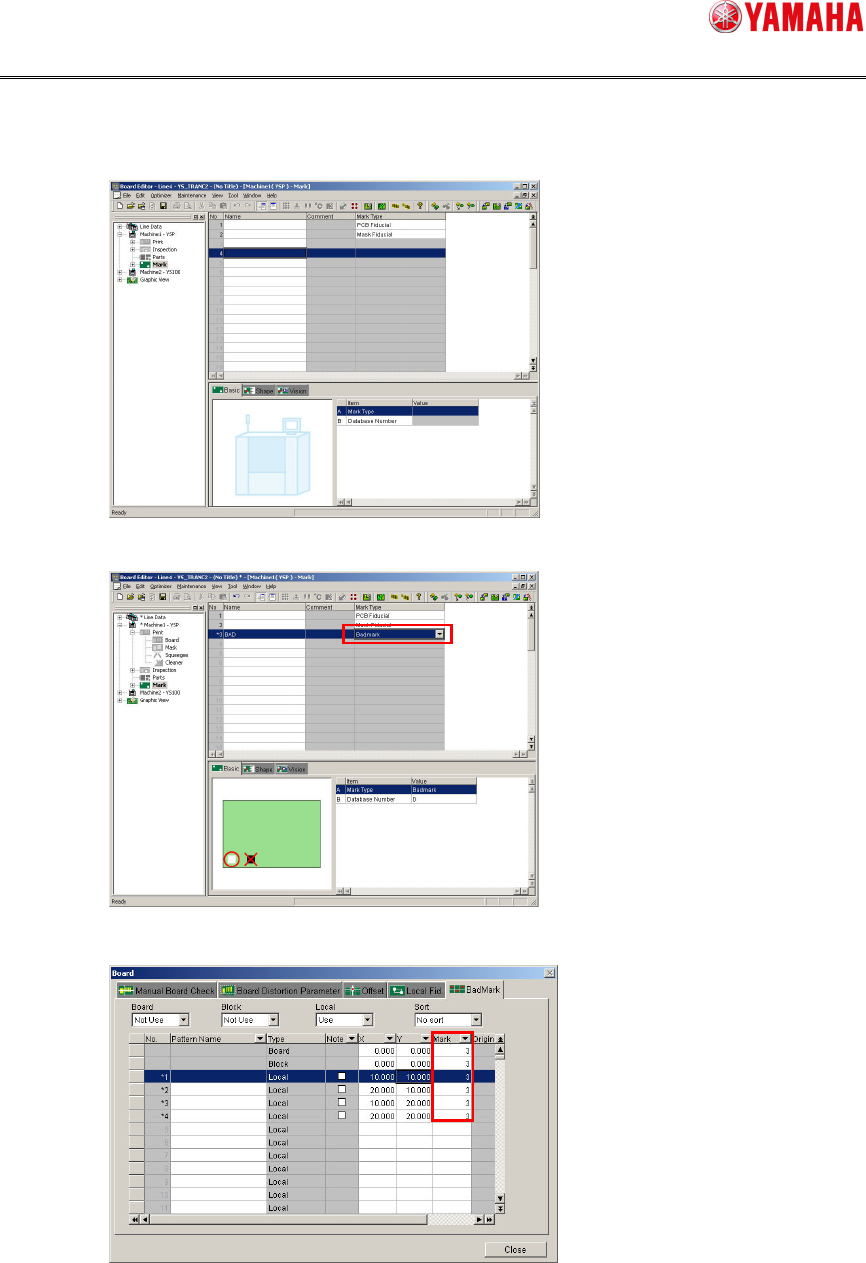

②. Choose [Mark] from the individual data of the printer.
Check the mark No from the screen.
When the mark No you have checked is other than the badmark, register the badmark.
Change the mark No of the badmark from the individual data of the printer.
③. Check with the actual machine.
With the actual machine, check the coordinates of the board data after the line data
import. Correct the origin position to correct errors by each machine.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50116 36/48
5. Error messages
The following shows the error messages that are displayed by this function. Follow the
instructions stated in the error message to take corrective actions.
Error No. Contents
In the transfer data check of the badmark recognition results, the board name of the
transferred data differs from the board name currently being selected.
[Cause]
The board name currently being selected differs from the board name of the
transfer data.
[Action]
Correct the unmatched data and load the board from the upstream machine
again.
When the bpard name check is not needed, check off [Board Name Check].
Check the [Software setting][TakeOver Information] screen.
Ea12852
Program name
Board data
Transfer
data
In the transfer data check of the badmark recognition results, the board data differs from
the transfer data.
[Cause]
The number of badmark recognition result data to be used is different between
the board data and transfer data.
[Action]
Correct the unmatched data and load the board from the upstream machine
again.
Ea12853
Board Block Local
Board data
Transfer
data
In the transfer data check of the badmark recognition results, data other than that already
recognized is detected.
[Cause]
In the transfer data check of the badmark recognition results, data other than
that already recognized is detected. Data that all inspections are not completed
is not applicable to the processing.
Ea12854
[Action]
Correct the data and load the board from the upstream machine again.
It is failed to read the badmark recognition result file.
[Cause]
It is failed to read the badmark recognition result file.
Ea12855
[Action]
Check that the folder set in “Upload” can be read.
Check the setting contents of [Software setting][TakeOver Information].
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50116 37/48
Error No. Contents
It is failed to write the badmark recognition result file.
[Cause]
It is failed to write the badmark recognition result file.
[Action]
Check that the folder set in “Download” can be written.
Check the setting contents of [Software setting][TakeOver Information].
When the output is not needed, control the output.
Check off the [Download] check box on the [Software setting][Take Over
Information] screen.
Ea12856
File name
File name
Combinations that cannot be operated are specified.
[Cause]
Even when “Upload” is not used, the recovery function is also set disabled.
Ea12859
[Action]
When “Upload” is not used, set the recovery function enabled.
Combinations that cannot be operated are specified.
[Cause]
Machine with [Machine][Mechanical][Position][Badmark][TakeOver][Enable
(Leadoff)] set has the following setting.
・ [Upload] is checked on.
・ Recovery function is set disabled.
Ea12872
[Action]
For the machine with
[Machine][Mechanical][Position][Badmark][TakeOver][Enable (Leadoff)] set,
check off [Upload] and set the recovery function enabled.
No move destination folder is specified.
[Cause]
No move destination folder is specified.
Ea12977
[Action]
Set a move destination folder.
The same folder as the move source is set for the move destination folder.
[Cause]
The same folder as the move source is set for the move destination folder.
Ea12978
[Action]
Change the move destination folder to a folder different from the move source
folder.
The badmark recognition result file cannot de identified.
[Cause]
The badmark recognition result file cannot be identified.
・ No badmark recognition result file is found.
・ The badmark recognition result is different from that of the upstream
machine.
Ea12979
[Action]
Correct the unmatched data and load the board from the upstream machine
again.
A block No is set that does not exist in the original block Nos of the print inspection object.
[Cause]
A block No is set that does not exist in the original block Nos of the print
inspection object.
[Action]
Check the offset information and set a valid block No.
Ea24609
Print inspection object nn
Original block No. nn
A local badmark No is set that does not exist in the bad of the print inspection object.
[Cause] A local badmark No is set that does not exist in the bad of the print inspection
object.
[Action] Check the badmark information and set a valid local badmark No.
Ea24610
Print inspection object nn
Bad nn
