SMT Software Engineering Group

IM Operations YAMAHA MOTOR CO., LTD.

MDOC-SOFT50116 32/48

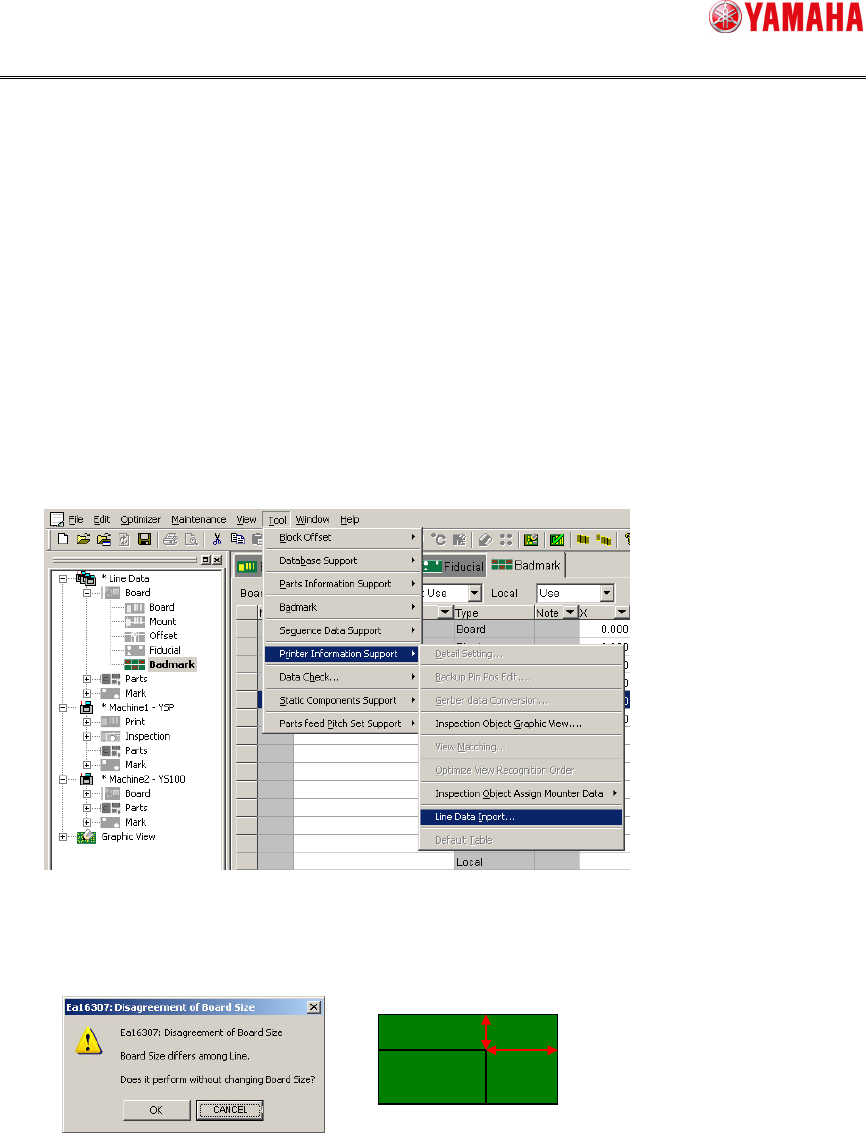

4.2.2.1. Line data import

This function copies useful data from the board data of the mounter to the printer.

1. Preparing board data

Prepare board data that is already operated. When the block distribution or optimization

is needed, prepare data, the block distribution or optimization of which has been

completed.

2. Reading the board data

Read the board data of the printer and mounter.

3. Executing the line data import

Open the Line Data Import screen.

4. Changing the board size

If the board size of the mounter differs from that of the printer, the response dialog box

will appear. When the board size is not adjusted to the mounter, click [OK].

SMT Software Engineering Group

IM Operations YAMAHA MOTOR CO., LTD.

MDOC-SOFT50116 33/48

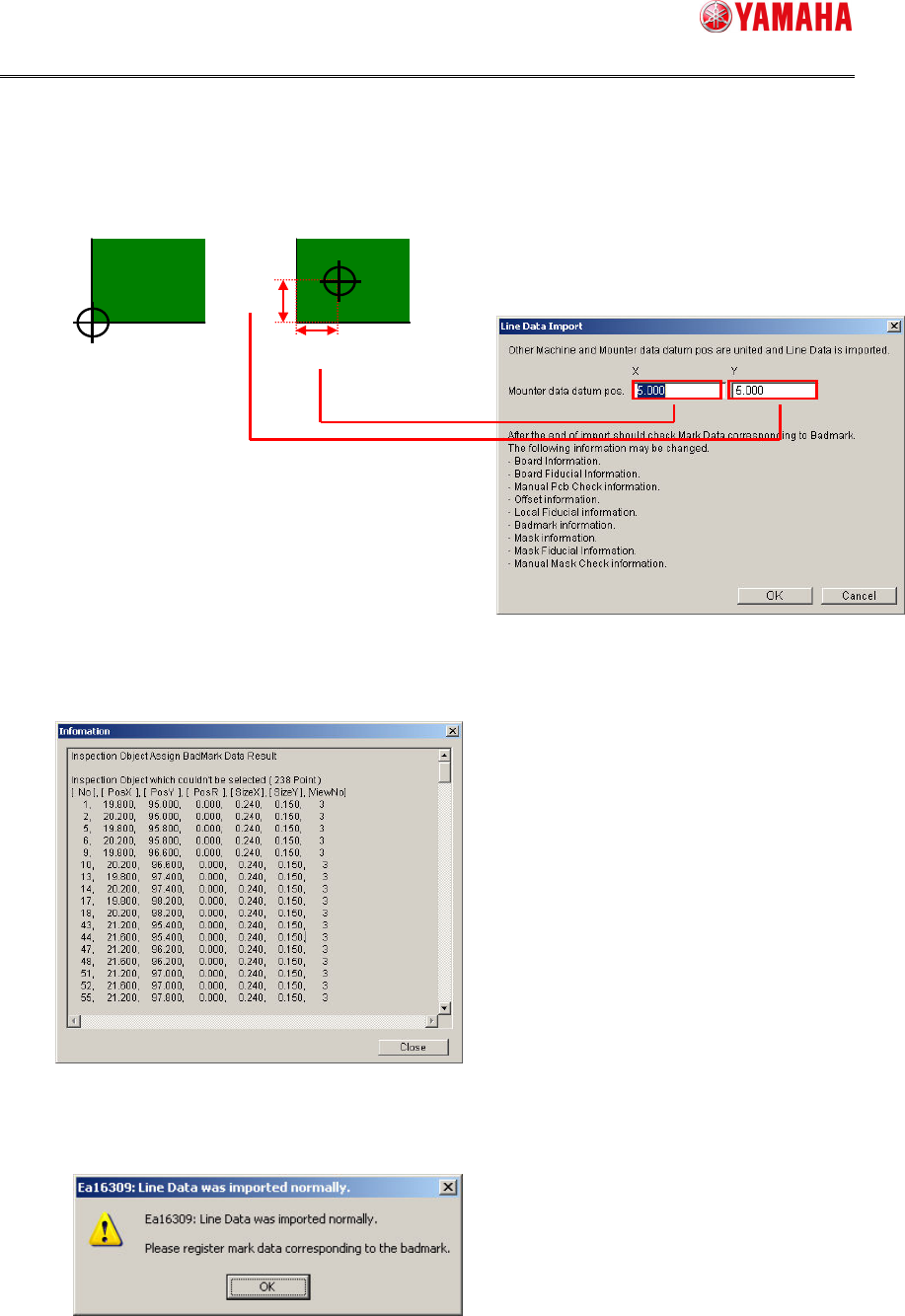

5. Changing the board datum position

The board datum position of the mounter differs from that of the printer. Set differences

(mm) in datum position so that the mounter and printer use the same board datum

position.

6. Displaying the result check screen

If there is inspection object data that cannot be identified from the mounter data, its list

is displayed.

7. Displaying the line data import completion screen

The line data import completion is displayed.

Follow the display contents to check the data.

Mounter

5 mm

Printer

SMT Software Engineering Group

IM Operations YAMAHA MOTOR CO., LTD.

MDOC-SOFT50116 34/48

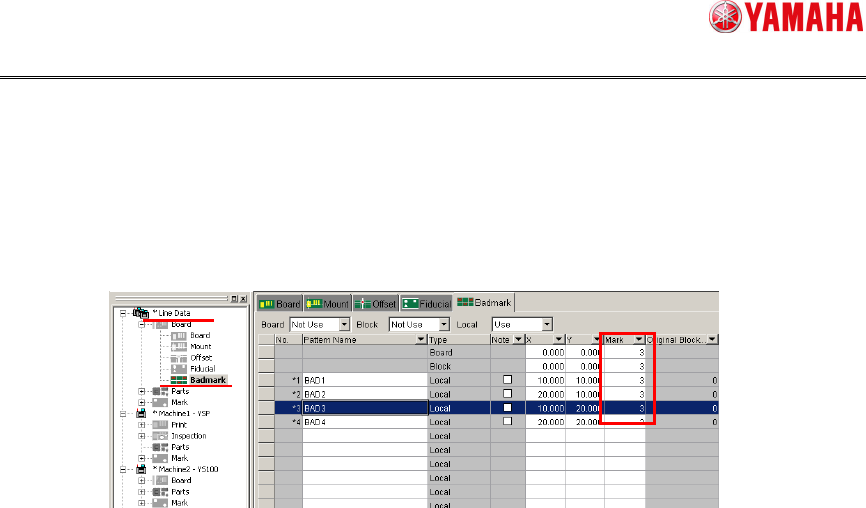

8. Checking the mark data

Check the mark data of the registered badmark.

①. Check the mark No of the registered badmark.

Open the badmark from the line data. Check the mark No used for the registered

badmark.
