3.2.5 Fitting the HCUs and HCU Base Adapter Fitting the Gantry
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 113

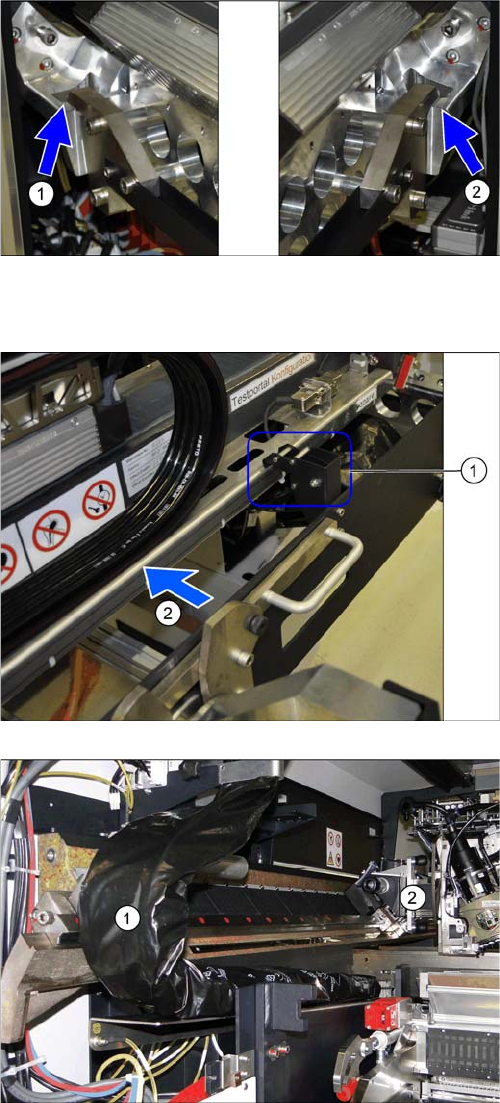

Remove the tilt guard and move in the gantry
The docking hooks are hooked into place on the left (1)
and right (2) sides.
The gantry carrier with the gantry is now fixed reliably
onto the machine.
► Open the tilt guard (1).
► Push the gantry (2) into the machine so that both
sides of the gantry rest on the two linear guides.
► Move the gantry lift with the gantry carrier out of the
location.
► Move the gantry (2) into the machine so that the trail
-
ing cable (1) can be pulled underneath, through the
gantry.
assembly
Fitting the Gantry 3.5.1 Replacing/Fitting the End Position Buffers
114 Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Por
-
3.5.1
3.5.1 Replacing/Fitting the End Position Buffers
Replacing/Fitting the End Position Buffers
Overview
► Carefully place the flat ribbon cable (1) and the pneu
-
matic connections (2) over the gantry.
► Remove the black plastic foil. A cable tie fixes the
black plastic foil to the trailing cable (1).
When upgrading from an SX1 to an SX2, you need to fit
the short end position buffers at location 2.
When downgrading from an SX2 to an SX1, fit the buffer
with distance pipe at location 2.
When fitting a 40 mm gantry, you need to fit the buffer
with distance pipe at location 2 of the SX1. (Buffer labe
-
ling: "LOC2, VHF SX1")
1. Location 1
2. Location 2
3. Security switch
4. Buffer with distance pipe at an SX1
Standard: 226.5 mm
Twin VHF: 174 mm
5. Short buffer on an SX2 (standard and Twin VHF)
assembly
3.5.1 Replacing/Fitting the End Position Buffers Fitting the Gantry
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 115
Installation

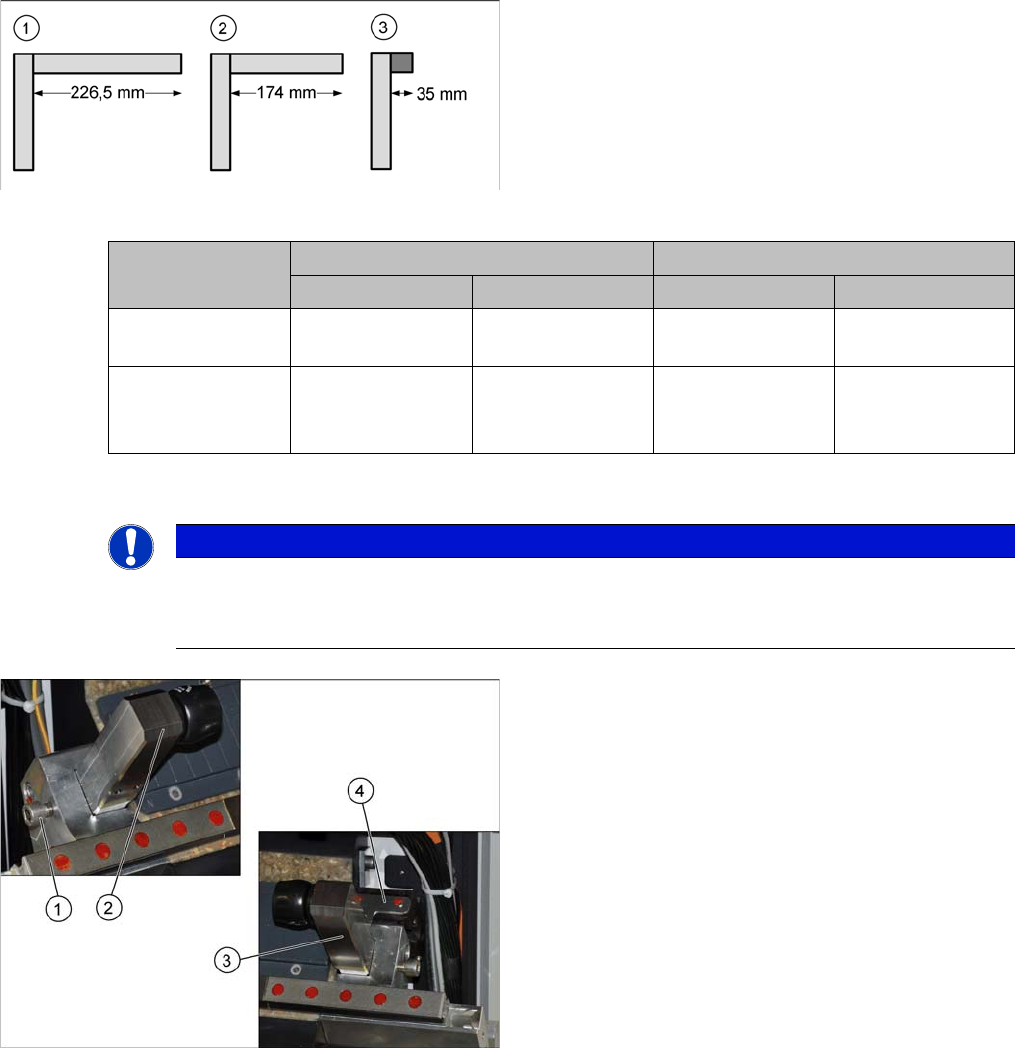

Buffer types:
1. Standard: long buffer with distance pipe for location 2
of an SX1 (226.5 mm)
2. Twin VHF: buffer with shortened distance pipe
[03105259-xx] for location 2 of an SX1 (174 mm)
Buffer labeling: "LOC2, VHF SX1"
3. Standard and Twin VHF: short buffer with rubber
damper for both locations on an SX2 (35 mm)
Machine SX 1 SX2
Location 1 Location 2 Location 1 Location 2
Standard 35 mm rubber
dampers
226.5 mm
distance pipe
35 mm rubber
dampers
35 mm rubber
dampers
40 mm gantry for
Twin VHF
35 mm rubber
dampers
174 mm distance
pipe (shortened)
LOC2, VHF SX1
35 mm rubber
dampers
35 mm rubber
dampers
NOTICE
Holder and distance pipe
► You might need to fit the holder from one distance pipe onto the other distance pipe. When
doing so, hand-tighten the distance pipe on the holder.
► Fit the end position buffer (2) to the left side.
► Fit the end position buffer (3) to the right side. The
safety switch (4) for the buffer monitoring function
must engage in the Schmersal switch.
► Tighten the fastening screws (1) for the buffers with a
torque of 14 Nm.
