assembly
3.5.1 Replacing/Fitting the End Position Buffers Trailing Cable Connection
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 117
Trailing cable mount
Restore the electrical and pneumatic connections
Connections established

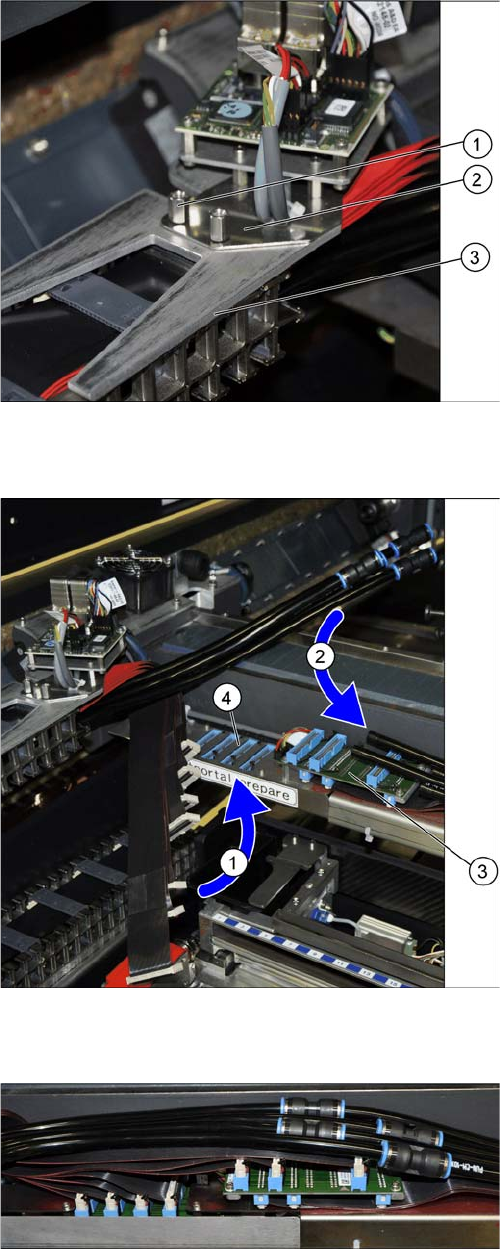

1. Two hexagon spacer bolts M4 x 10 mm.
2. Gantry board holder
3. Trailing cable holder
► Loosen the two hexagon spacer bolts M4 x 10 mm on
the trailing cable holder.
► Hold the trailing cable holder from below, on the gan
-
try board holder.
► Screw the two hexagon spacer bolts from above, into
the trailing cable holder.
► Secure the two hexagon spacer bolts with Loctite
241.
► First connect the 7 flat ribbon cables (1) to the boards
for the gantry interface of the X axis (3) and the gantry
interface of the Y axis (4). The sequence depends on
the different cable lengths. Work your way from back
to front.
► Remove the dummy plugs from the pneumatic hose
couplings.
► Connect the four pneumatic connections for the trail
-
ing cable to the gantry connections (2). The se
-
quence depends on the different hose lengths..
This diagram shows the precisely run and correctly ar
-
ranged connections.
assembly
Trailing Cable Connection 3.5.1 Replacing/Fitting the End Position Buffers
118 Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Por
-

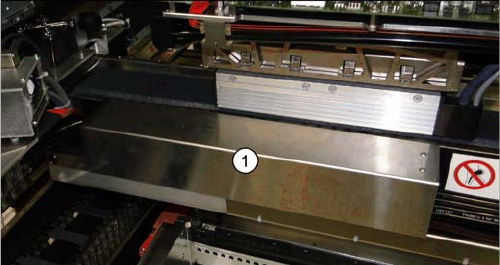

► Fit the cover (1) over the gantry interface.
assembly
3.7.1 Empty Tape Duct Intermediate Plate Final Work
Reconfiguration Kit Twin VHF with Gantry Reconfiguration Kit Twin VHF mit Portal 119
3.7
3.7 Final Work
Final Work
3.7.1
3.7.1 Empty Tape Duct Intermediate Plate
Empty Tape Duct Intermediate Plate
If tapes with high components are processed, you will need to remove the empty tape duct intermediate
plate when upgrading a gantry with TwinHead or CPP head and stationary camera.
If you are only using component with tapes up to 12 mm, keep the intermediate plate in the empty tape
duct.
3.7.2
3.7.2 Stowing the Gantry Carrier and the Prepared Case
Stowing the Gantry Carrier and the Prepared Case
Stowing the gantry carrier in the transportation crate
► Use the gantry lift to move the gantry carrier into the transportation crate.
► Fix the gantry carrier into place in the transportation crate, with the 4 fastening screws.
► Release the gantry carrier from the gantry lift and move the gantry lift to one side.
► Place the foam cover for the placement head in the transportation crate.
► Close the front and top cover on the transportation crate.
Placing assembly parts in the "Prepared" case

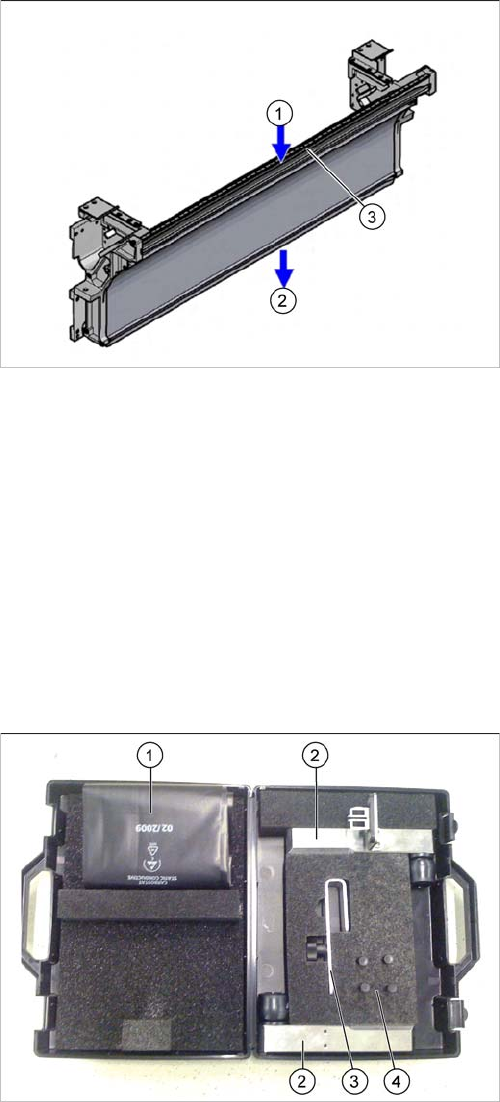

1. Inlet slot for empty tapes
2. Outlet slot for the empty tapes above the pneumatic
tape cutter
3. Dividing plate for tapes < 12 mm (can be removed for
tapes > 12 mm)
You have removed the following parts which you will
need to dismantle the gantry later on. Keep these parts in
the "Prepared" case.
▪ The long end position buffer
▪ A green lever as transportation lock for the gantry
▪ Two transportation locks for the placement head
▪ Black plastic foil for trailing cable
▪ Trailing cable holder with knurled head screw
