Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
17 of 46
4.4 SIPLACE CA-Series Hardware Components
NOTICE
The hardware configuration of the station computer and the optional Vision computer can
only be combined with a particular hardware configuration for the machine controller. See
the following table for details.
Station computer
Machine controller Vision computer
(wit 3D coplanarity sensor option)
SIMATIC Box PC 627
SIMATIC Box PC 627 SIMATIC Box PC 627
4.4.1 Station Computer
Name
SIMATIC Box PC 627
CPU / clock frequency
Pentium M / 2 GHz
RAM
1 GB
Hard disk
40 GB
External DVD drive
Yes
Serial interfaces
1
USB interfaces
and external USB hub
Yes
Network
2x 100 Mbit
Table 4-10: Station computer hardware (configuration of SIPLACE CA-series)
4.4.2 Machine Controller
Name
SIMATIC Box PC 627
CPU / clock frequency
Pentium M / 2 GHz
RAM
1 GB
Hard disk
40 GB
External DVD drive
Yes
Serial interfaces
1
USB interfaces
and external USB hub
Yes
Network
2x 100 Mbit
Table 4-11: Machine controller hardware (configuration of SIPLACE CA-series)
Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
18 of 46
4.4.3 Vision Computer (Optional)
Name
SIMATIC Box PC 627
CPU / clock frequency
Pentium M / 2 GHz
RAM
1 GB
Hard disk
40 GB
External DVD drive
Yes
Serial interfaces
1
USB interfaces and external USB hub
Yes
Network
2x 100 MBit
Table 4-12: Vision computer hardware (optional for SIPLACE CA3 with 3D coplanarity sensor)
Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
19 of 46
4.5 Network Configuration
Station computer
Machine controller
10Base-T
100Base-T
Private network between
station computer,
Vision computer (optional)
and machine controller
SIPLACE LAN
SIPLACE Pro
Twisted Pair TP
(100 MB)
Twisted Pair TP
(10 MB)
Vision computer
(optional)
100Base-T

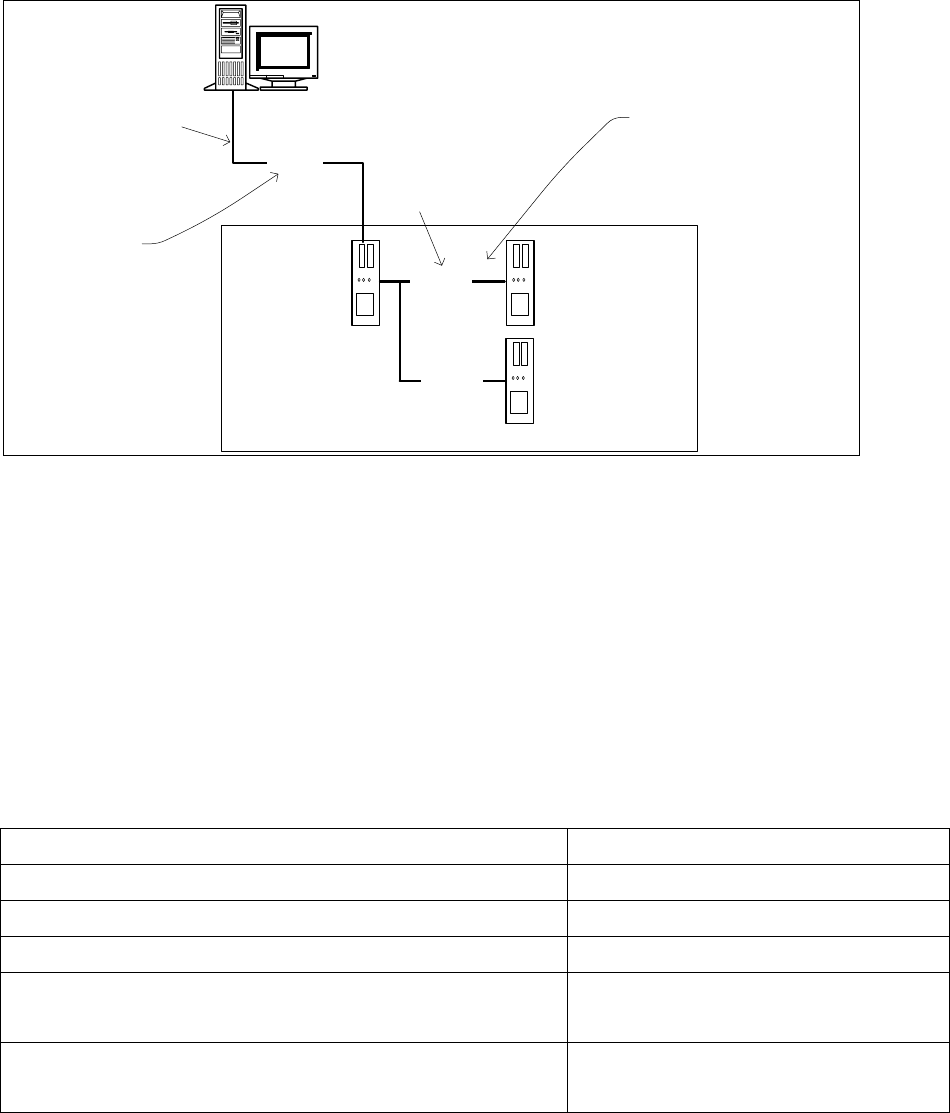

Fig. 4-1: Network connections between the machine and SIPLACE Pro
A separate private network (100 Mbit) is set up between the station computer (and optionally the Vision
computer) and the machine controller via a subnet mask.
Fixed IP addresses for the station computer, Vision computer and machine controller can thus be assigned
for all SIPLACE machines. These IP addresses are not known outside the private network, for instance in
the SIPLACE LAN or customer LAN.
These IP addresses need not be further configured by the operator while the station software is being
installed.
IP address, station computer
192.168.255.249
IP address, machine controller
192.168.255.250
Vision computer IP Address
192.168.255.251
Subnet mask, station computer/machine controller
255.255.255.248
IP address range, SIPLACE LAN or
IP address range, customer LAN
172.22.xxx.xxx
is configured on-site
Subnet mask for SIPLACE-LAN or
subnet mask for customer LAN
255.255.0.0
is configured on-site
Table 4-13: Network configuration
