5.3.3.2 Calibrating the Touch Screen for the D-Series
→ Select Start Program Files PenMount Utilities PenMount Control Panel to start the touch
screen calibration applet.

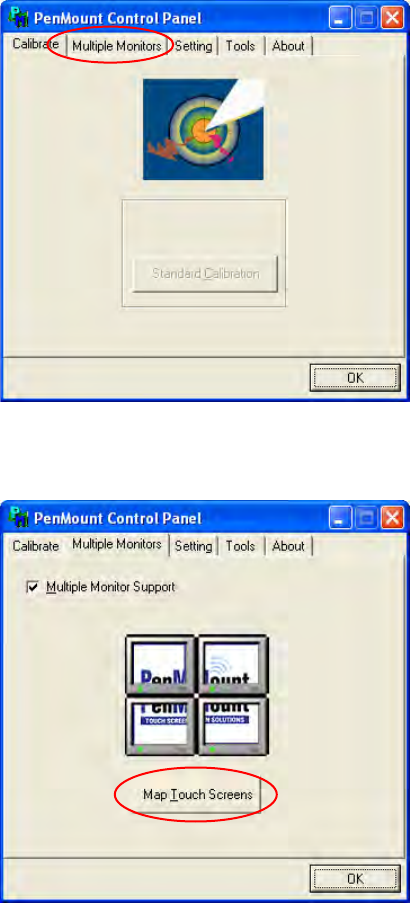

Fig. 5-9: PenMount Control Panel
→ Open the Multiple Monitors tab.
Fig. 5-10: PenMount Control Panel – Multiple Monitors tab
→ Check the Multiple Monitor Support box.
→ Click the Map Touch Screens button.
The "Mapping" dialog box opens.
Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
28 of 46

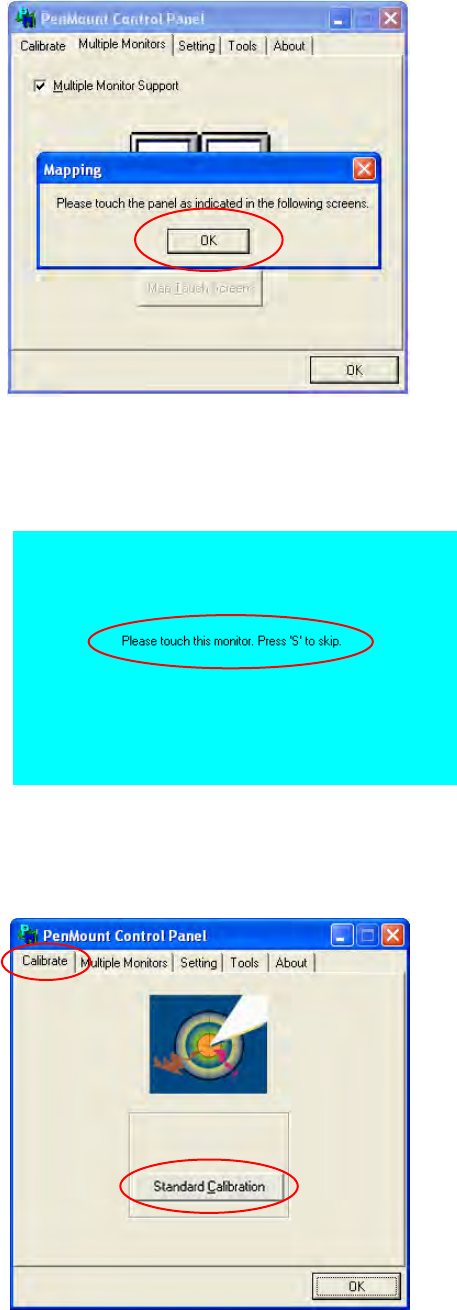

Fig. 5-11: PenMount Control Panel – "Mapping" dialog box
→ Acknowledge the "Mapping" dialog box by clicking on OK.
→ Touch the monitor showing Please touch this monitor with your finger.
Fig. 5-12: Mapping the touch screens
The touch screens are now mapped and the PenMount Control Panel is displayed again.
→ Open the Calibrate tab.
Fig. 5-13: PenMount Control Panel – Calibrate tab
→ Click the Standard Calibration button. The Calibrate dialog box opens.
Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
29 of 46

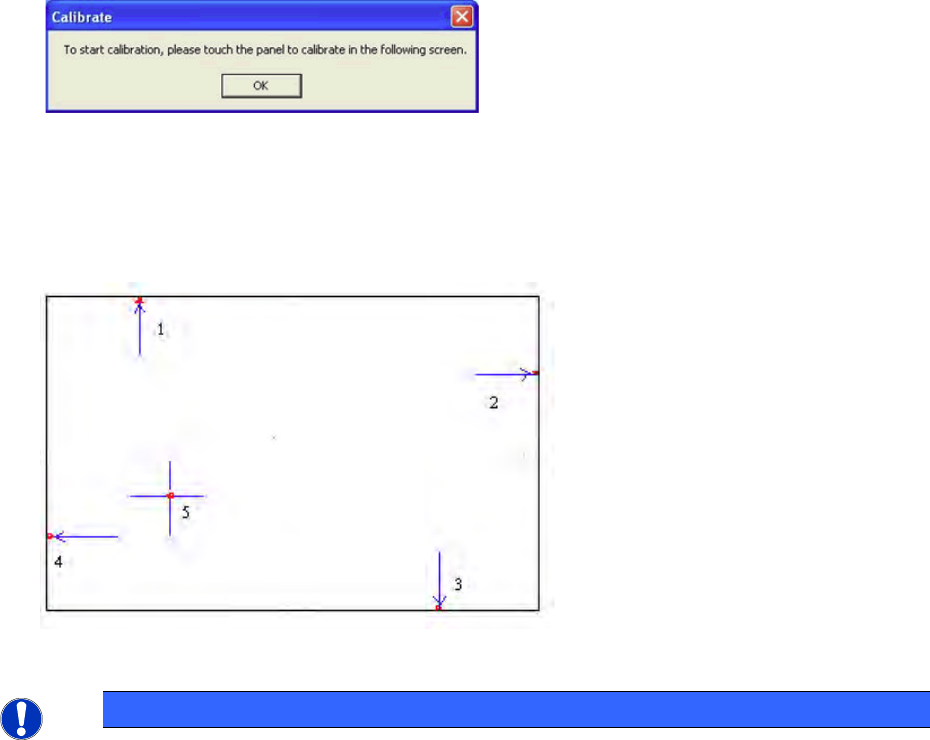

Fig. 5-14: "Calibrate" dialog box
→ Acknowledge the dialog box by clicking on OK.
→ Touch the monitor you wish to calibrate with the pen supplied. You are now prompted to Touch the
red square.
Fig. 5-15: Calibration marks
NOTICE
→ Touch the calibration icon within 20 seconds, otherwise calibration is automatically
canceled.
→ Make sure that you are standing directly in front of the monitor.
→ Carry out calibration in the position (standing or seated) you normally adopt when
working at this screen.
→ Touch the calibration icon firmly and accurately with your fingertip.
→ Make sure that you do not inadvertently touch the screen with any other finger.
→ Touch the red calibration marks with the pen in the numbered sequence shown.
→ Carry out the steps described above for the second screen as well.
→ Click OK in the PenMount Control Panel to close the program.
