Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
39 of 46
The installation program now uninstalls the SIPLACE software including the SIPLACE hot fixes, SIPLACE
Language Pack and SIPLACE Vision.

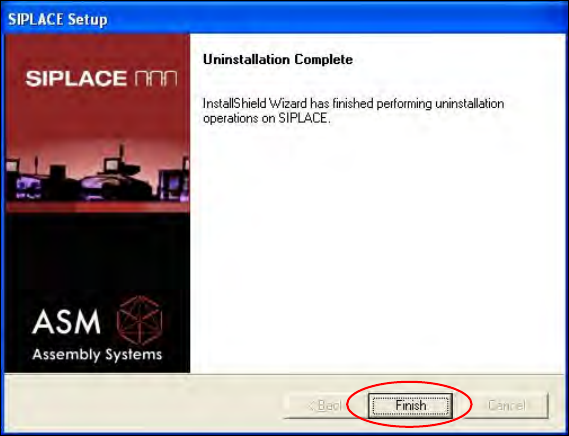

Fig.6-3: Finalizing uninstallation
→ Click the Finish button.
The SIPLACE software and SIPLACE Vision have now been uninstalled correctly.
Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
40 of 46
7 Installing the Vision Computer Software (Option)
NOTICE
The Vision computer is only required if the optional 3D coplanarity sensor is used.
In one-computer operation the Vision computer software
is automatically installed during the
station software installation.
In two-computer operation the Vision computer software has to be installed explicitly.
The installation requires approx. 20 minutes.
→ Connect the USB keyboard to the Vision computer.
→ Switch the video multiplexer from the station computer to the Vision computer.
→ Switch on the SIPLACE placement machine.
→ Log in to the Vision computer as Administrator.
(Keep the Shift key pressed as soon as the Windows XP logo appears)
→ Insert the installation CD in the drive.
→ Open the Explorer and start "setup.exe" under drive E: by double clicking it.
The "SIPLACE Choice Center" dialog box is opened.

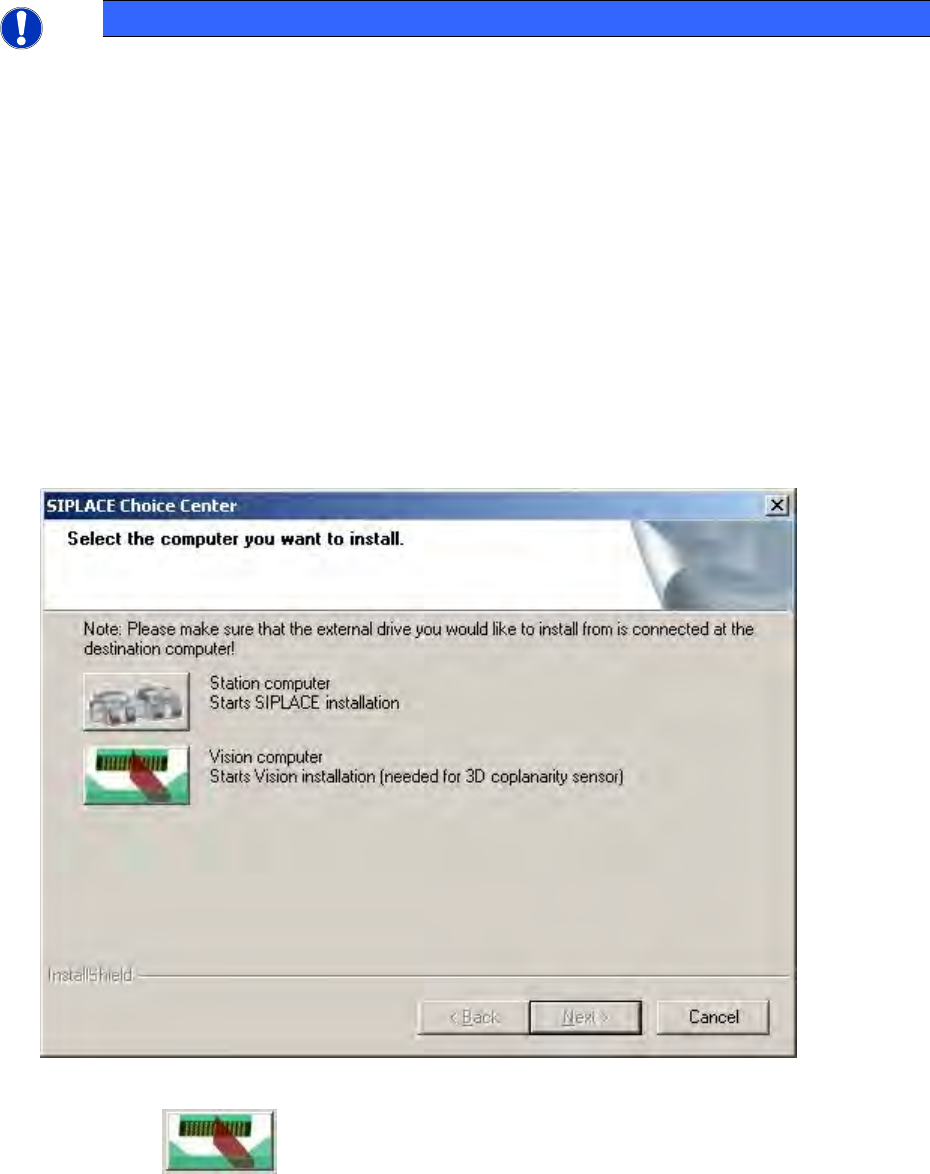

Fig.7-1: "SIPLACE Choice Center" dialog box
→ Click the "Vision computer" button.
Installation Manual, Station Software Version 605.03 SP3 12/2012 Edition
41 of 46
Installation of the vision computer software continues with the welcome screen.
7.1 Welcome Screen

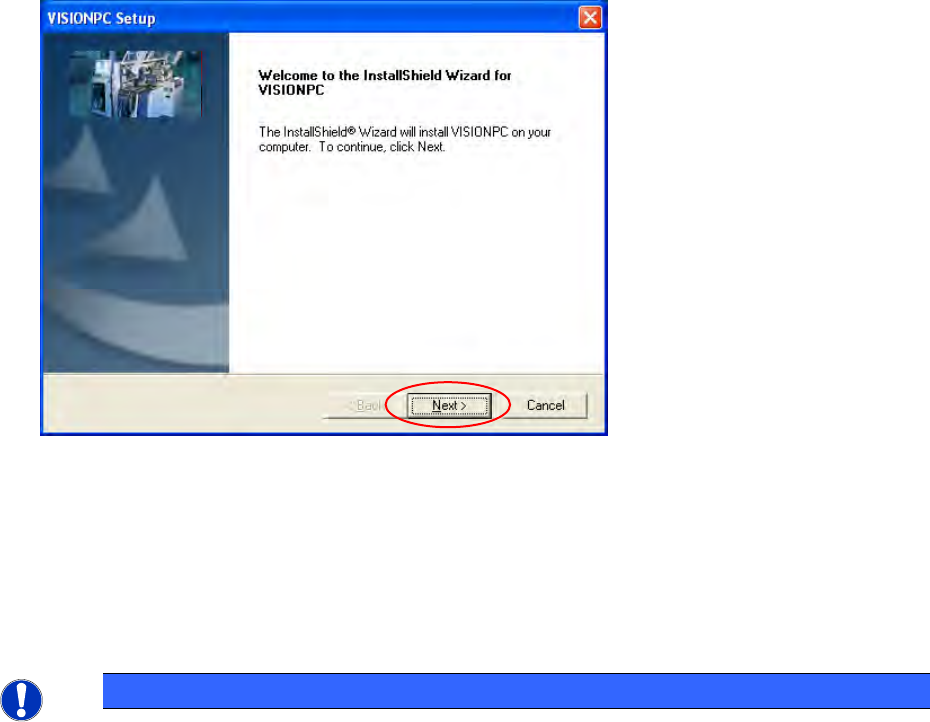

Fig.7-2 Welcome screen
→ Click the Next button.
The necessary files are installed on the Vision computer.
7.2 Finalizing the Installation
NOTICE
The status only lists the programs that have just been installed.
If errors occurred during installation, the status is indicated by the Error button being
displayed next to the program name instead of the Ok button.
→ If you wish to read the log of the installation of any program, click the Ok (or Error) button next to the
name of the program. Notepad is started and displays the appropriate file.
