4.3.1.2 Selecting the line(s)
Once a template has been selected, the Line Server selection list shows all the known lines
selected by the template. The following icons indicate the status of the line. Further details are
displayed in the tooltip for the icon and in the Status field of the Line Server selection list.
The Line Server is available and can receive data packages.
The Clearing Pool contains unprocessed entries for this line. The entries in the Clearing
Pool should be checked and removed before data is sent to this Line Server. Nevertheless,
it is possible to push data.
The Clearing Pool contains unprocessed entries for this line. One of these objects in the
Clearing Pool has been added to the Object selection list. The object must be removed
from the Clearing Pool or the Object selection list or the line must be deactivated in the
Line Server selection list before data can be sent to this Line Server.
Something is wrong on the Line Server. The EDM Tool may not be running.
The Line Server is not responding, does not exist (incorrect entry in the EDM configuration
file), the EDM service is not running on the Line Server, or push mode is not enabled
there.
Table 4-1: Icons for line status
The associated check box must be checked to transfer objects to a Line Server. The All (all Line
Servers shown), Valid and None buttons check or uncheck the check boxes of the relevant Line
Server groups.
4.3.1.3 Selecting the objects to be transferred
The Add button opens a dialog box for selecting the objects. The filter function and the context
menu allow the relevant objects to be selected quickly. The checked entries are added to the
Object selection list.

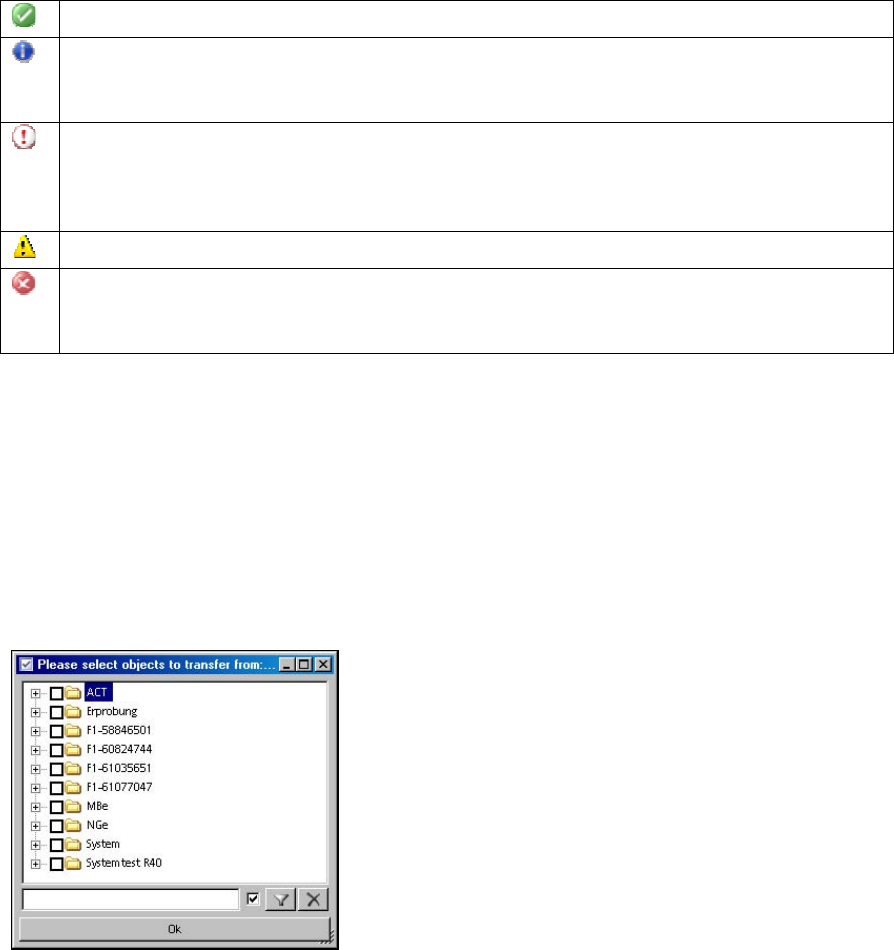

Figure 4-10: Selecting objects to be transferred
4.3.1.4 Entering a comment
A text must be entered in the Comment field. This is subsequently used as a notice and identifies
the content of the push package to the user at the Line Server.
15
EDM V1.10 / Version Description Ausgabe 07/2011 Edition
4.3.1.5 Sending the data package
Once the user has performed all the steps above, the button for transferring the package is
enabled and the error icon next to it is no longer visible.

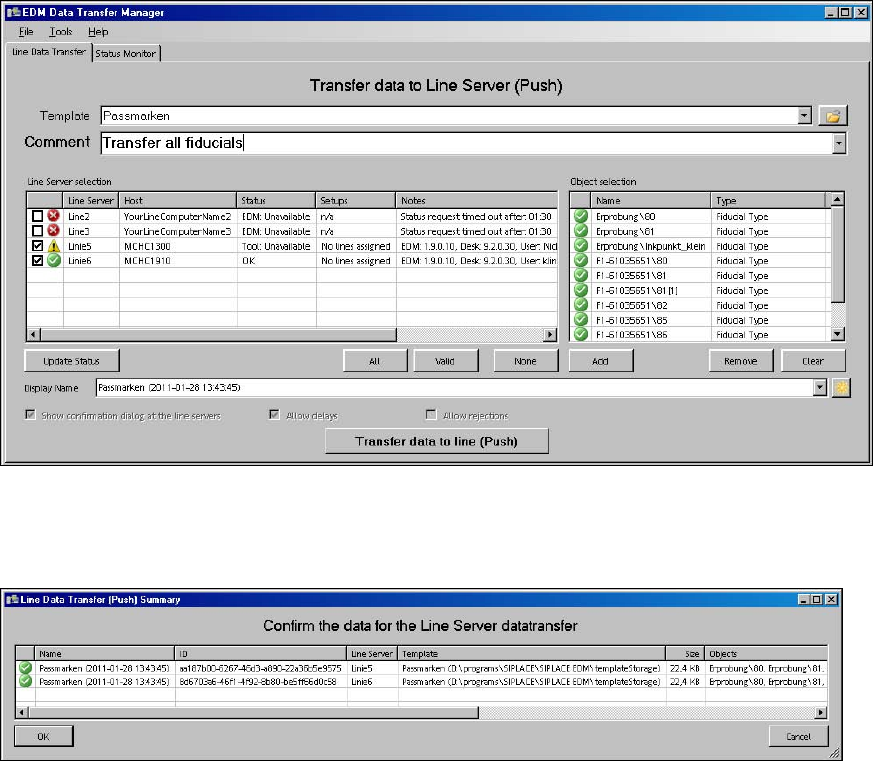

Figure 4-11: Sending the data package
After the Transfer data to line (Push) button is pressed, the selected data is exported from
SIPLACE Pro. The summary has then to be confirmed or the push operation has to be canceled:
Figure 4-12: Confirming/Cancelling the push operation
16
EDM V1.10 / Version Description Ausgabe 07/2011 Edition
4.3.1.6 Checking the data packages
The Status Monitor tab lists the packages sent. This view is used to track the push operations.

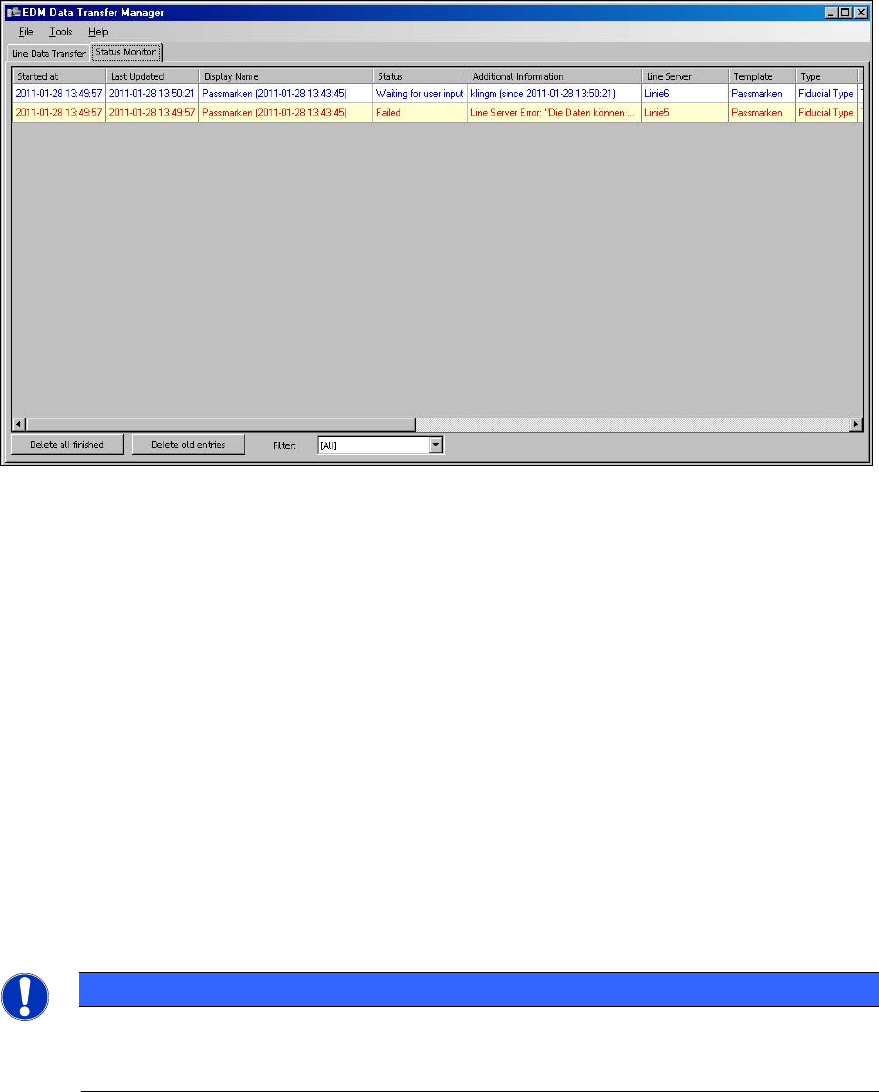

Figure 4-13: Checking the data packages
Depending on the status of the relevant push package, the context menu (right mouse button) in
each row allows you to delete the associated entry, cancel data transfer or create a new data
package on the basis of the current entry in the Line Data Transfer tab (Repeat Push...).
4.3.2 Receiving data on the EDM Line Server
4.3.2.1 Accepting the push data packages
By default, EDM pops up a confirmation dialog box on the Line Server after the push package has
been sent by the Data Transfer Manager.
Depending on the configuration set by the Data Transfer Manager, the user at the Line Server can
reject packages or flag them for resubmission (Delay). EDM can be configured in such a way that
the confirmation dialog box does not appear and the data is imported on the Line Server with no
further intervention by the user. This is described in the EDM Installation Manual.
NOTICE
The EDM Tool must be started on the Line Server to allow the user to confirm receipt of
data packages from the Data Transfer Manager. The EDM Service is sufficient to allow
data to be imported without user interaction.
