EDM V1.10 / Version Description Ausgabe 07/2011 Edition
4.3.3 Automatic push in the Clearing Pool
If Auto Push is enabled, a push data package is created automatically by the Clearing Pool and
sent to the line if changes are rejected. This ensures that the most recent data is available on the
Line Server. The configuration options are described in the EDM Installation Manual, section
5.2.4.2.
4.4 EDM Clearing Pool
The EDM Clearing Pool is the tool used by data preparation to examine the change notifications
from each of the lines in terms of their relevance and, if necessary, integrate them into the
SIPLACE Pro master database. With the functionality already available in SIPLACE Pro, individual
objects of a certain type (components, component shapes, boards and placement lists) can be
compared attribute-by-attribute, and changes can be applied at this low level.
The Clearing Pool can be installed independently of the EDM master service on a separate
workstation computer.
4.4.1 New features
The following features have been added to the EDM Clearing Pool as of the EDM 1.10 Version.
4.4.1.1 Handling changed line Vision data
The handling of changed line Vision data for assigned SIPLACE Pro lines has been optimized as
follows:
Notifications with changed line Vision data and a list of the assigned SIPLACE Pro lines are
transferred from the Line Server to the Clearing Pool. The list of the assigned SIPLACE Pro lines is
passed to the Extended Difference Editor (EDE) in SIPLACE Pro.
By clicking with the right-hand mouse button on an object and selecting the Validate Changes…
entry in the context menu, the EDE is started and displays all differences in the line data.
19
EDM V1.10 / Version Description Ausgabe 07/2011 Edition

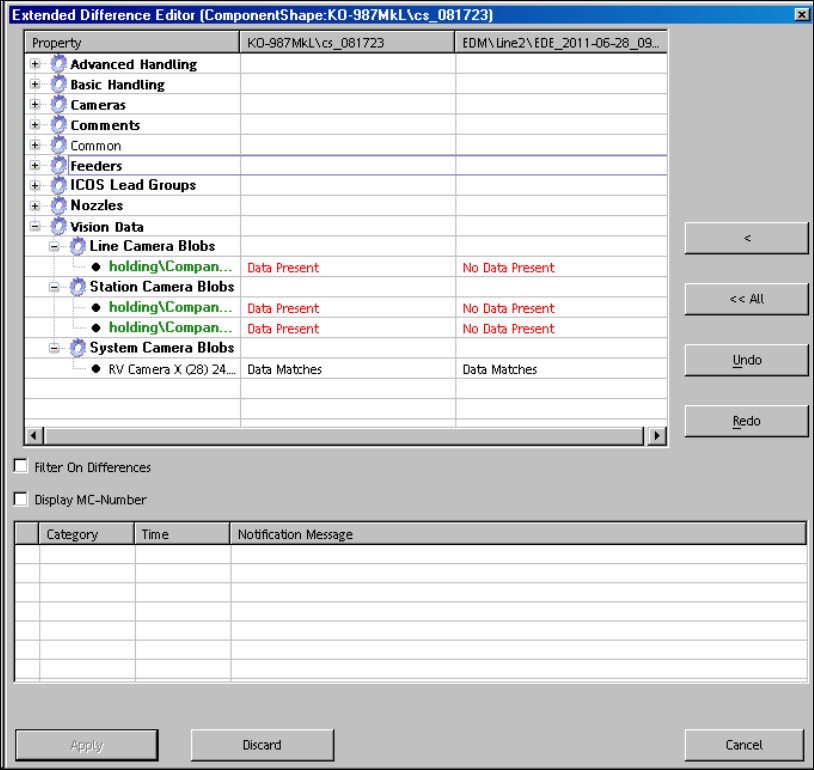

Figure 4-16: Displaying differences in the line data
The master version is displayed on the left side and the client version on the right side and the
assigned SIPLACE Pro lines are highlighted. The data preparation engineer accepts the changed
line Vision data for all assigned SIPLACE Pro lines by clicking the <<All or All>> buttons (or the
Apply button, if repeating the action).
The differences for line data of non-assigned SIPLACE Pro lines can be merged via the < and >
buttons.
20
EDM V1.10 / Version Description Ausgabe 07/2011 Edition
4.4.1.2 Selecting multiple objects
The Clearing Pool has been extended to support the selection of multiple objects to be accepted or
rejected for import.
Single objects from different container nodes have to be selected manually in the context menu of
the object:
Figure 4-17: Manual selection of multiple objects
On a container node, the user can select Accept / Reject / Select - All in the context menu to
perform the changes for all objects of the container node. By selecting Select / Accept / Reject –
Child nodes, the changes are only performed for the objects of the current sub node.
Figure 4-18: Changing all objects
Via the Options – Sort Options menu entry the objects can be sorted Case sensitive,
Alphanumeric or Descending:
Figure 4-19: Sort Options
