INFINITY
MACHINE PROGRAMMING
STAGE 6B - VACUUM TOOLING
User Manual 1.35

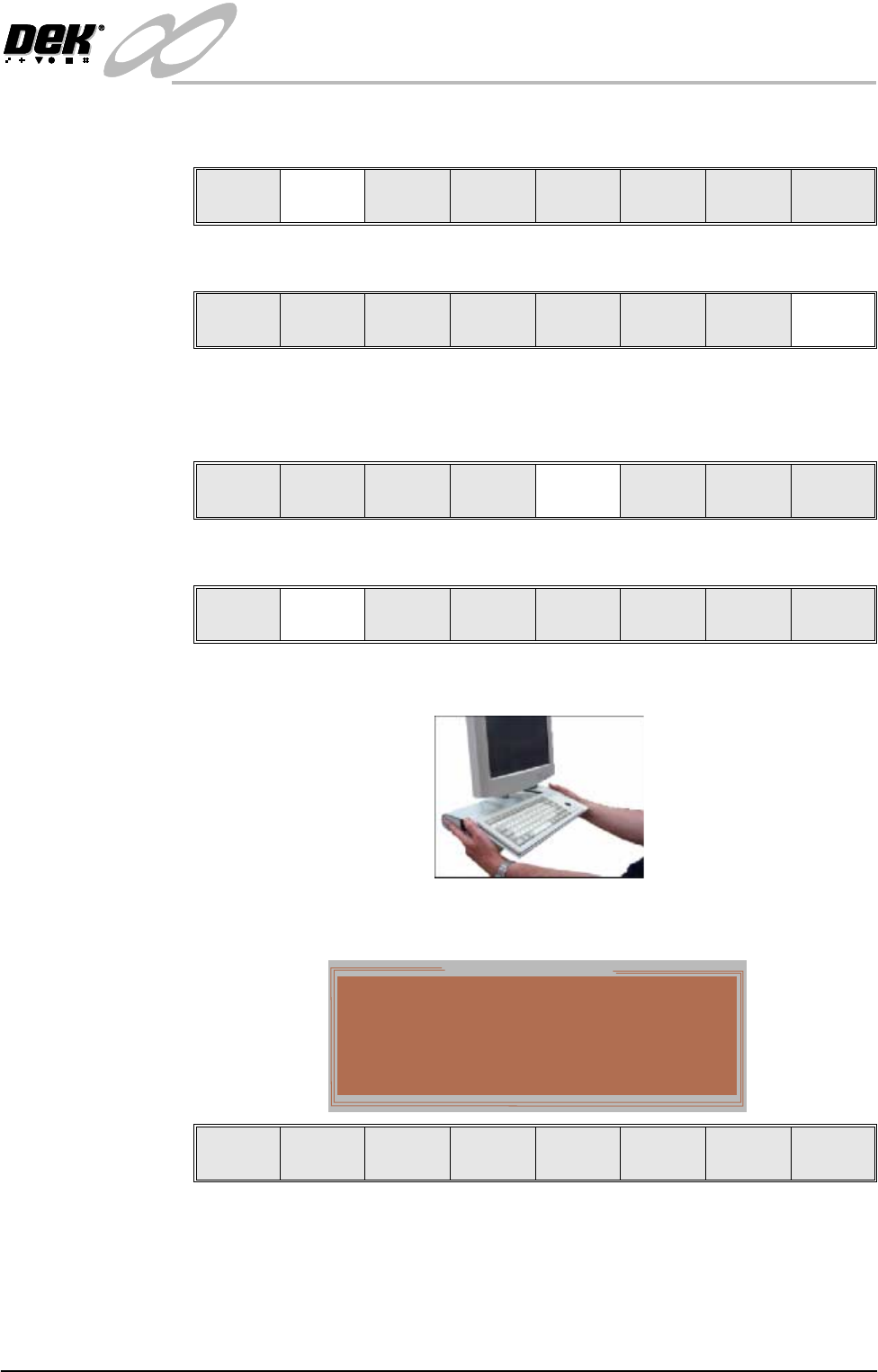

6. Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
7. Select Exit (F8).
8. Select Full Width (F5). The message ‘Checking for a board on the belts’
is displayed. Whilst the rear rail is moving the following message ‘Rail
Moving...’ is displayed.
9. Select Raise Head (F2).
10. Raise the printhead using two button control.
The following window and menu bar is displayed:
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Toolin g
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Toolin g
Exit
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6B - VACUUM TOOLING
1.36 User Manual

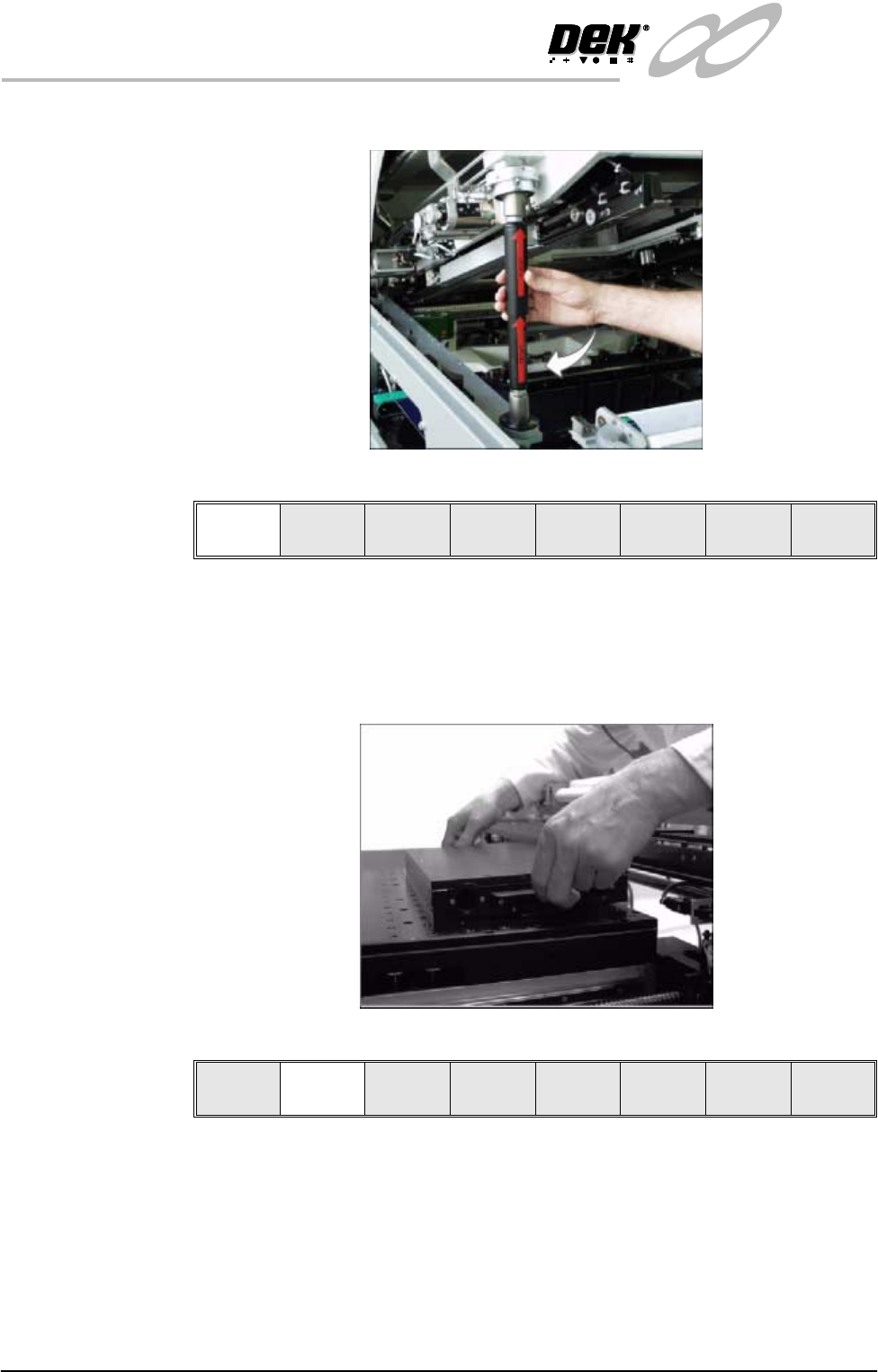

11. Fit the head prop.
12. Press Confirm (F1).
13. The vacuum box can now be fitted into the appropriate location holes in the
tooling plate. Ensure the vacuum box is placed into the correct set of holes
taking regard of the type of screen being used. Connect the vacuum hose
to the vacuum box inlet, ensure the hose is routed clear of any parts.
14. Select Lower Head (F2).
Confirm
Lower
Head
Adjust
Lower
Head
Board
Clamps
Set
Stop
INFINITY
MACHINE PROGRAMMING
STAGE 6B - VACUUM TOOLING
User Manual 1.37

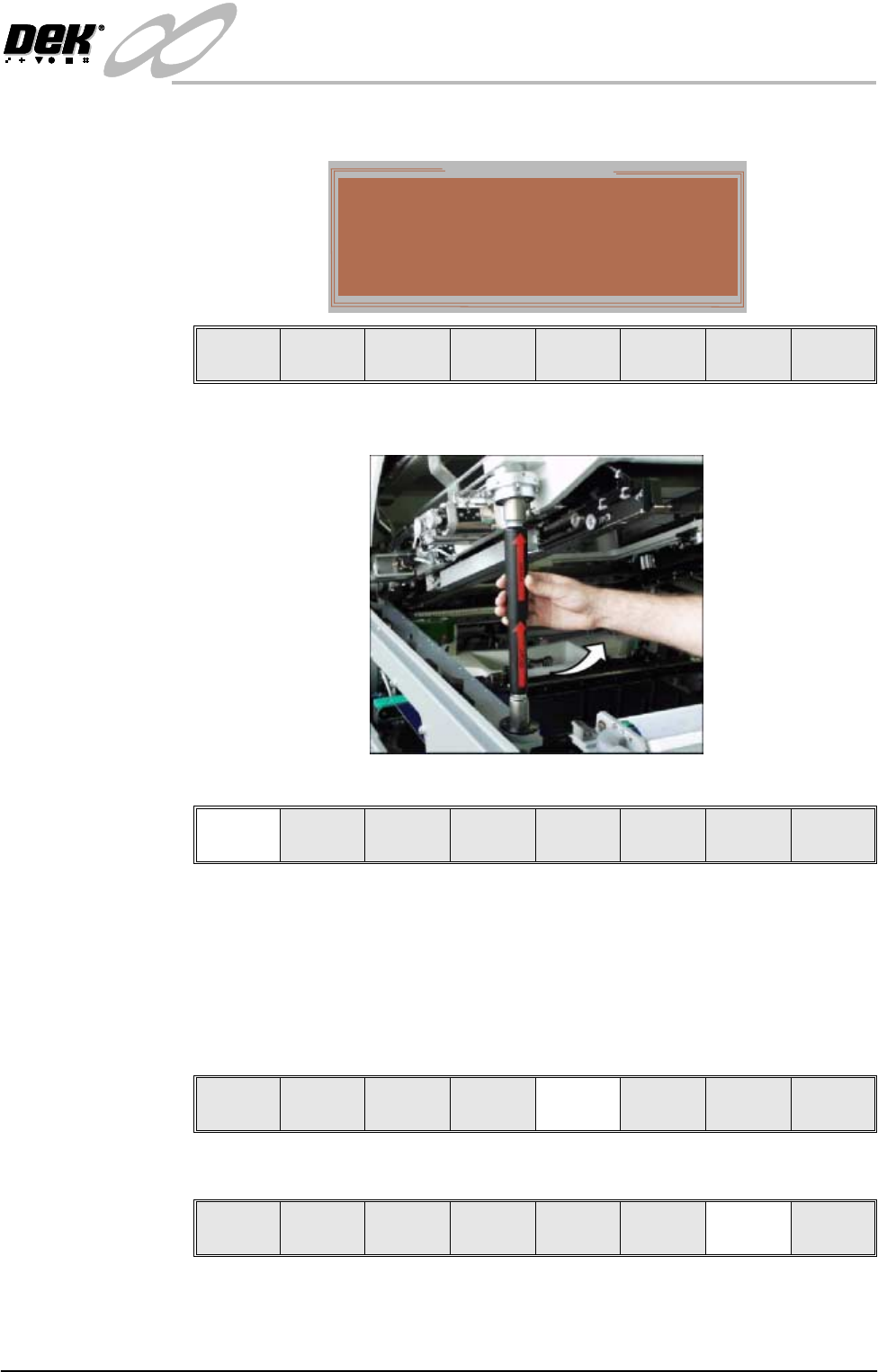

The following window and menu bar is displayed:
15. Remove the head prop.
16. Select Confirm (F1).
17. Lower the printhead using two button control.
18. Close the front printhead cover.
19. Press the System button.
20. Select Board Width (F5). The message ‘Checking for a board on the
belts’ is displayed. Whilst the rear rail is moving the following message ‘Rail
Moving...’ is displayed.
21. Select Generic Tooling (F7).
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
Confirm Cancel
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Toolin g
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
