The following window and menu bar is displayed:
44. Select Continue (F1).
45. Select Auto Board (F1).
46. Remove the board from the downline conveyor.
47. Select Continue (F1).
48. Go to Stage 7.
Universal Set Plate Procedure
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
CAUTION
BOARD CLAMPS.
Care must be taken to ensure that the board clamps are
not damaged when removing or replacing tooling.
NOTE
1. Ensure that Generic Tooling is set to Enabled in Set Prefs.
2. When using FormFlex, the print gap in the product file must be set to zero.
1. Select Change Screen (F5).
2. Raise the front printhead cover and remove the screen if present.
3. Prepare the universal set plate for the current product stencil as follows:
a. For a 20″ I/D stencil, secure the two left hand rod mounts to the plate by
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
Auto
Board
Manual
Board
Continue Head
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Toolin g
Change
Language
Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
1.64 User Manual
means of the two knurled thumbscrews through the outer and centre
mounting holes in the mount assembly.
b. For a 23″ I/D stencil or larger, secure the rod mounts to the plate using
the centre and inner mounting holes.
4. Position the set plate in the stencil centrally over the image, ensuring the
rods of the rod mounts are in contact with the left hand stencil side.
5. Adjust the position of the right hand spring lock assemblies by releasing the
two knurled thumbscrews and sliding the assembly towards the side of the
stencil.
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
User Manual 1.65
6. Ensure there is a 10mm gap between the stencil side and the end of the
spring lock assembly.
7. Tighten the thumbscrews of the two spring lock assemblies.

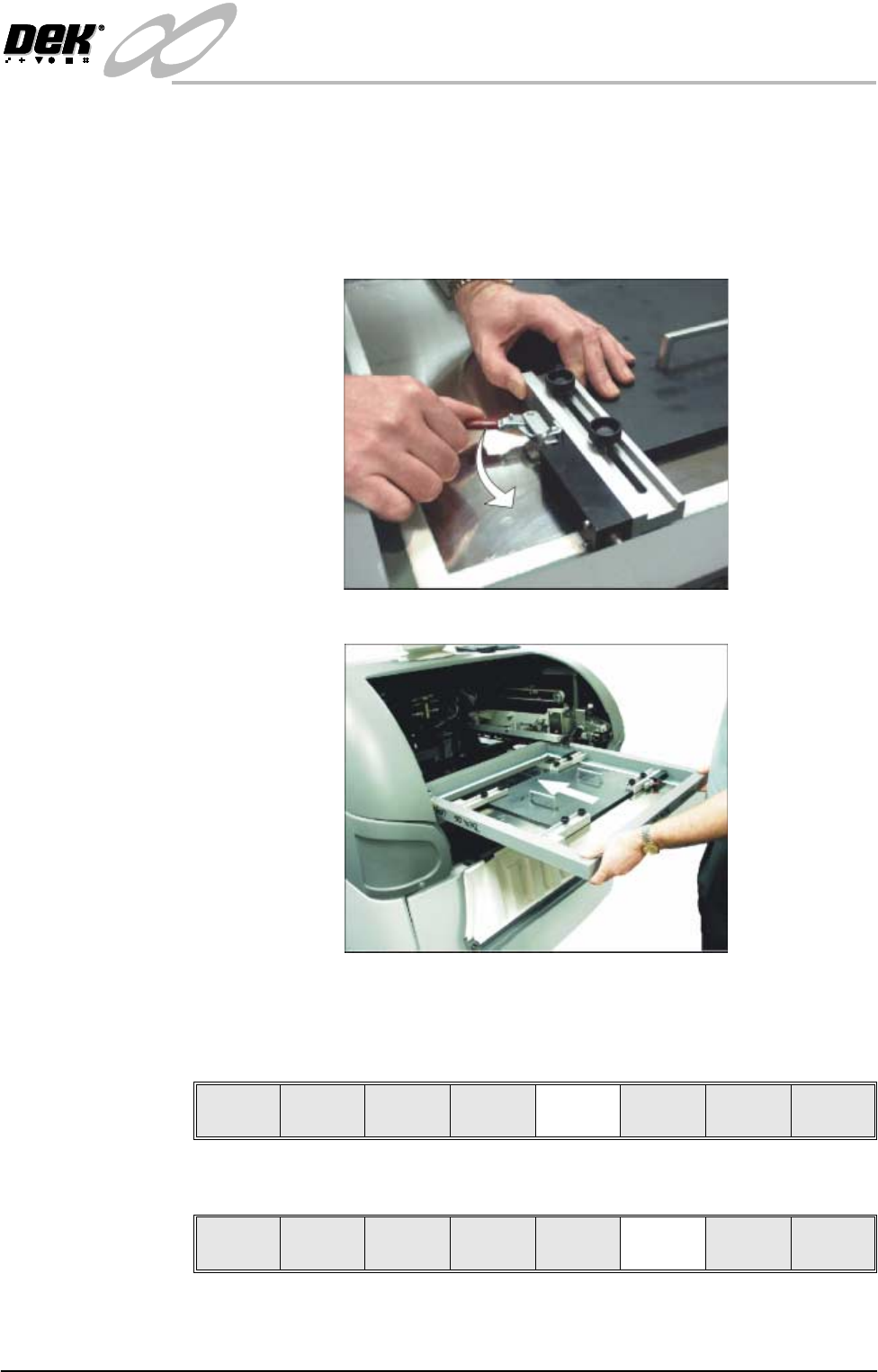

8. Ensuring the set plate remains parallel to the stencil sides operate the toggle
clamps to extend the piston shafts against the right hand stencil side. Thus,
clamping the set plate to the inside of the product stencil.
9. Ensuring correct orientation, load the product stencil into the machine.
10. Lower the front printhead cover.
11. Press the System button.
12. Select Change Screen (F5).
13. Select Change Tooling (F6). The print carriage moves to the front of the
printer.
