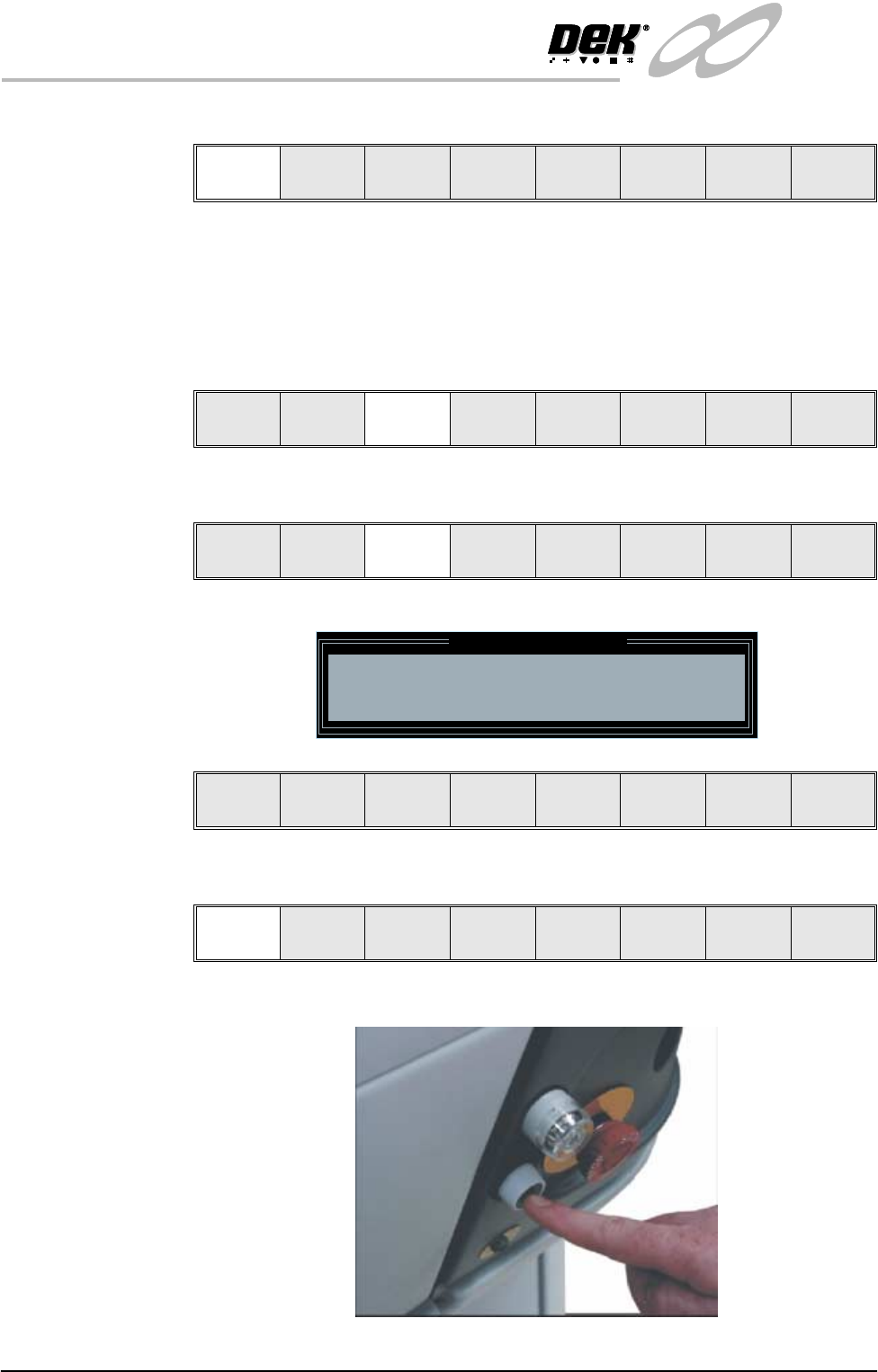

INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
1.68 User Manual
The following window and menu bar are displayed:
28. Fit the head prop.
29. Press Confirm (F1).
30. Slide the appropriate size and number of FormFlex blanking plates on to the
tooling modules outside the area of the squeegees/ProFlow transfer head.
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
User Manual 1.69
Secure the plates using the thumbscrews.
31. Select Lower Head (F2).
The following window and menu bar is displayed:
32. Remove the head prop.
Lower
Head
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
1.70 User Manual
33. Select Confirm (F1).
34. Lower the printhead using two button control.
35. Close the front printhead cover.
36. Press the System button.
37. Select Vision Height (F3), the message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
38. Select Contact Height (F3).
The following window and menu bar are displayed:
39. Select Continue (F1), the message ‘Table at Contact Height. Check
Tooling Clearance.’ is displayed.
40. Press the operator switch on the front of the machine covers.
Confirm Cancel
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Contact
Height
Trans pr t
Height
Change
Screen
Raise
Head
Exit
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
