INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
1.70 User Manual
33. Select Confirm (F1).
34. Lower the printhead using two button control.
35. Close the front printhead cover.
36. Press the System button.
37. Select Vision Height (F3), the message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
38. Select Contact Height (F3).
The following window and menu bar are displayed:
39. Select Continue (F1), the message ‘Table at Contact Height. Check
Tooling Clearance.’ is displayed.
40. Press the operator switch on the front of the machine covers.
Confirm Cancel
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Contact
Height
Trans pr t
Height
Change
Screen
Raise
Head
Exit
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
User Manual 1.71

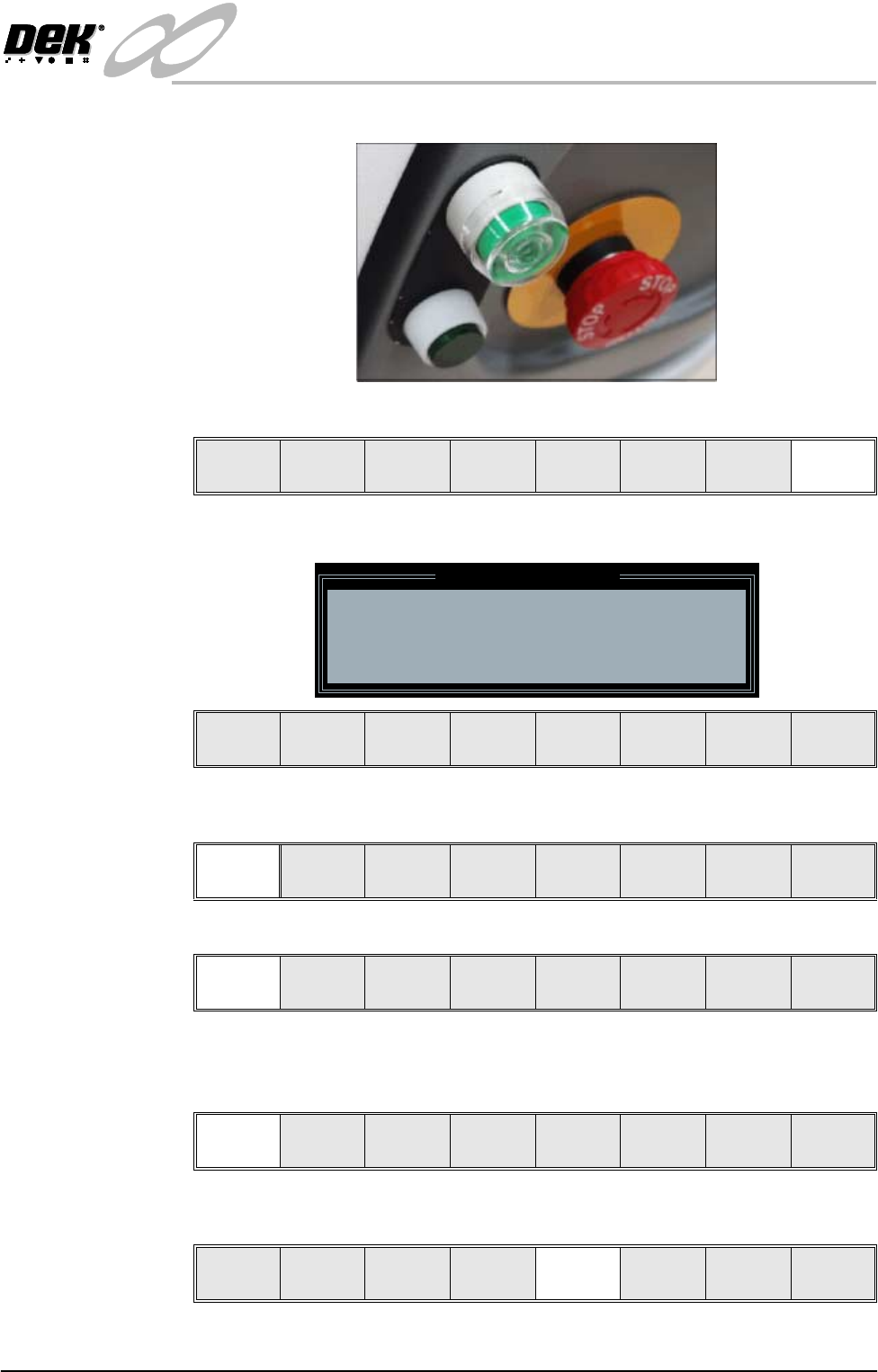

41. Wait until the pneumatic indicator on the front cover displays green.
42. Select Exit (F8).
The following window and menu bar is displayed:
43. Select Continue (F1).
44. Select Auto Board (F1).
45. Remove the board from the downline conveyor.
46. Select Continue (F1).
47. Select Change Screen (F5).
48. Raise the front printhead cover and remove the screen.
Vision
Height
Raise
Head
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
Auto
Board
Manual
Board
Continue Head
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Toolin g
Change
Language
Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
1.72 User Manual

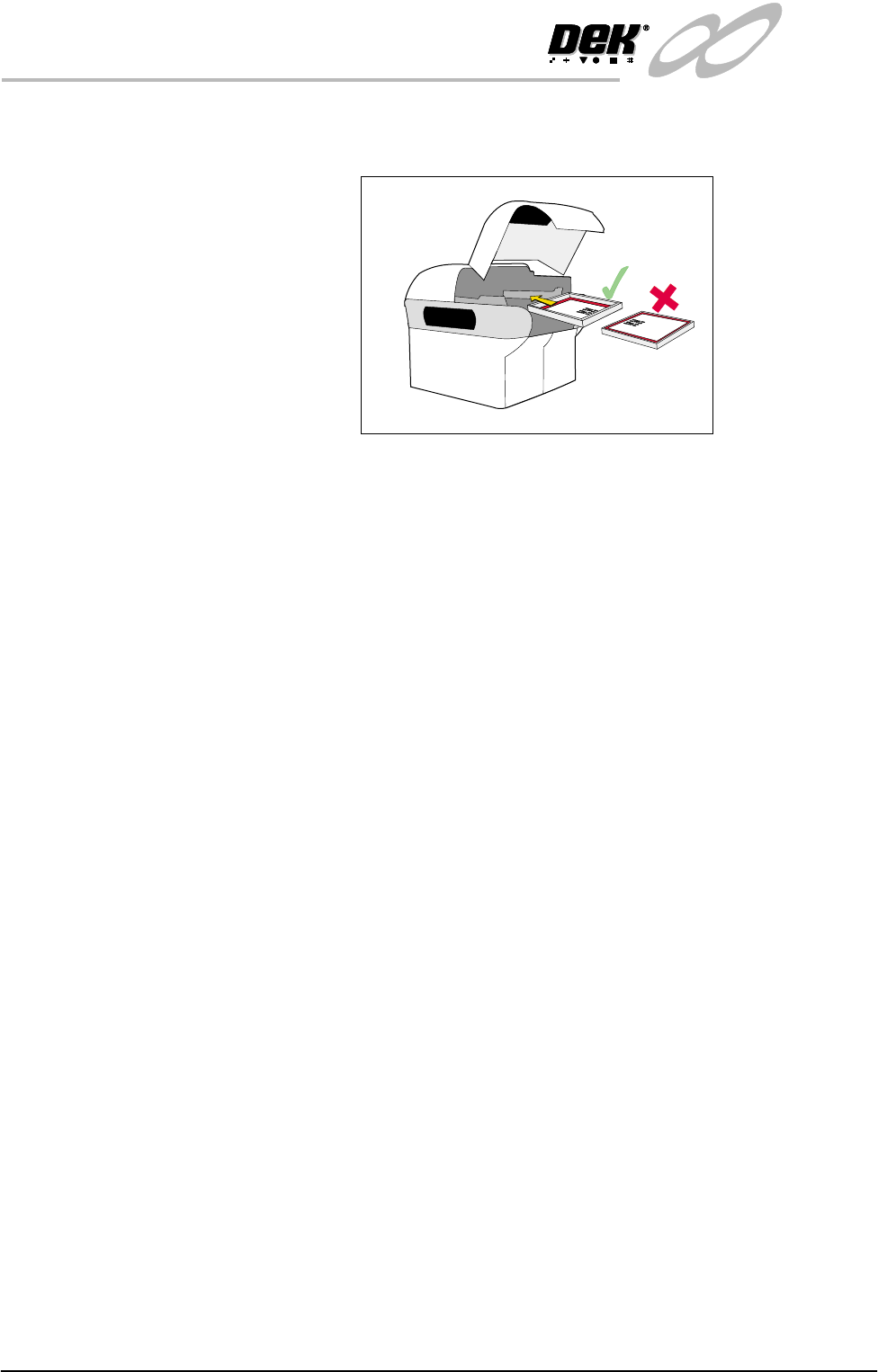

49. Remove the universal set plate from the screen.
50. Ensuring correct orientation, refit the screen.
51. Lower the front printhead cover.
52. Press the System button.
53. Go to Stage 7.
