INFINITY
MACHINE PROGRAMMING
STAGE 6D - MULTIFLEX TOOLING
User Manual 1.49
NOTE
Ensure that Generic Tooling is set to Enabled in Set Prefs.
6. Select Change Tooling (F6). The print carriage moves to the front of the
printer.
The Change Tooling Parameters window is displayed:
NOTE
If the remote board stop is fitted the Board Stop X and Board Stop Y
parameters are replaced by Remote Board Stop X.
7. Setting up the board stop position is automatically done using the board
dimensions previously set in the product file. If they need adjustment to re-
position the board stop for any reason, ie any routing on the board edge or
a badly positioned image on the stencil, this can be done now. If adjustment
is necessary continue with Step 8. If adjustment is not necessary go to Step
13.
8. Select Adjust (F1).
9. Use the Next and Previous keys (F4 - F5) to highlight each parameter.
10. Use the Incr. and Decr. keys (F6 - F7), or the forward slash key (/) on the
keyboard, to change the parameter value.
11. Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Change Tooling Parameters
BOARD WIDTH
BOARD STOP X
BOARD STOP Y
UNDER CLEARANCE
216.0
125.0
142.6
19.0
mm
mm
mm
mm
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Toolin g
Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6D - MULTIFLEX TOOLING
1.50 User Manual

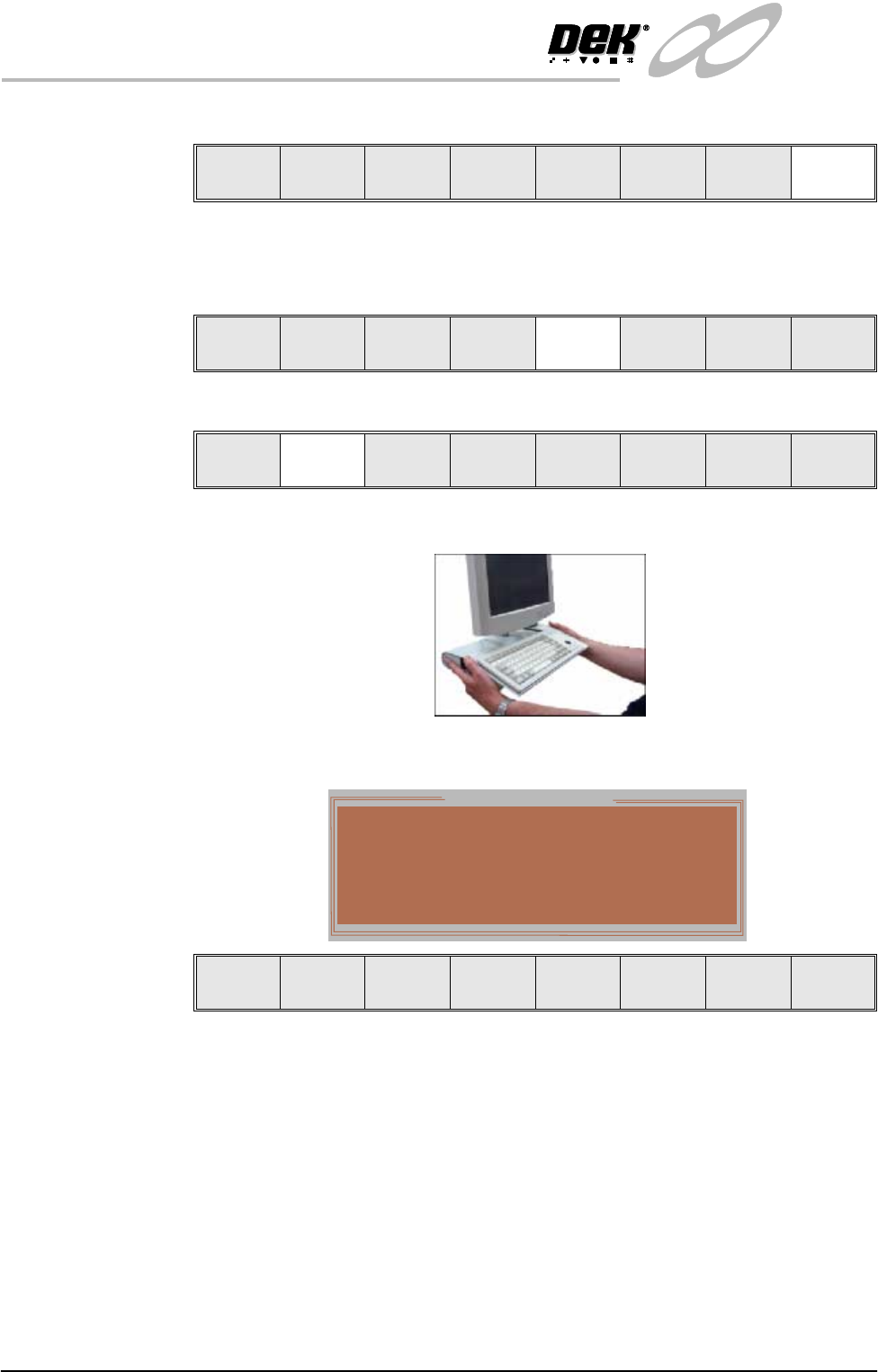

12. Select Exit (F8).
13. Select Full Width (F5). The message ‘Checking for a board on the belts’
is displayed. Whilst the rear rail is moving the following message ‘Rail
moving...’ is displayed.
14. Select Raise Head (F2).
15. Raise the printhead using two button control.
The following window and menu bar is displayed:
Save Next Previous Incr. Decr. Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Toolin g
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Toolin g
Exit
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6D - MULTIFLEX TOOLING
User Manual 1.51

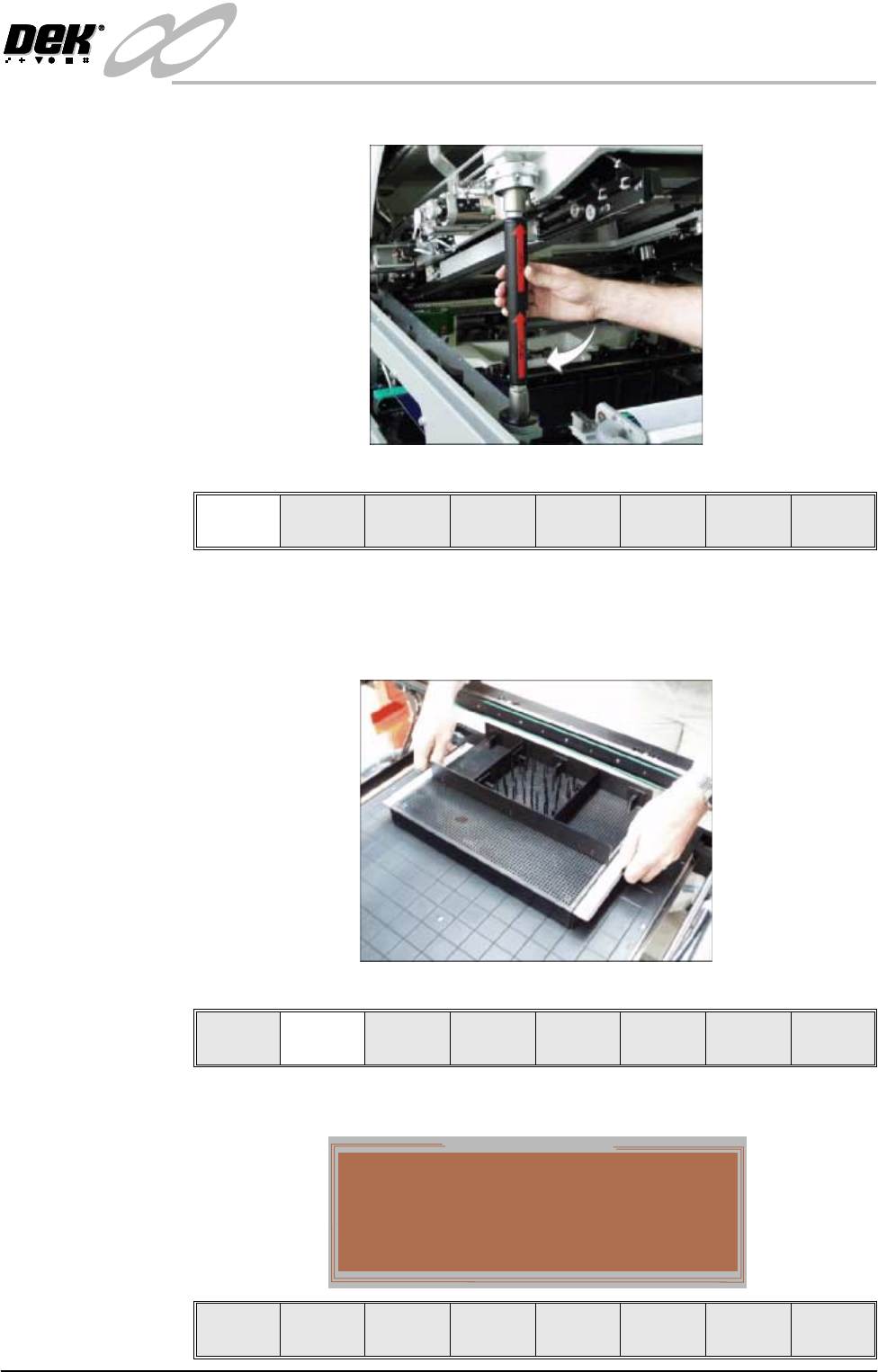

16. Fit the head prop.
17. Press Confirm (F1).
18. The MultiFlex tooling can now be fitted into the appropriate location holes in
the tooling plate. Ensure that the tooling is placed into the correct set of
holes, taking regard of the type of screen being used and hence the position
of the fixed rail.
19. Select Lower Head (F2).
The following window and menu bar is displayed:
Confirm
Lower
Head
Adjust
Lower
Head
Board
Clamps
Set
Stop
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
