INFINITY
MACHINE PROGRAMMING
STAGE 6A - MAGNETIC PILLARS TOOLING
1.28 User Manual
6. Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
7. Select Exit (F8).
8. Select Generic Tooling (F7).
The following window and menu bar is displayed:
NOTE
If contaminated squeegees are fitted, these should be replaced at this point.
9. Select Continue (F1). The print carriage travels to the rear of the machine
and the following message is displayed ‘Table at Home Height’.
10. Select Transprt Height (F3). The message ‘Table at Transport Height’ is
displayed.
11. Place a board on the input sensor of the upline conveyor of the machine.
12. Select Load (F1).
13. Select Auto Board (F1).
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Generic Tooling Warning
WARNING Paste may drip into the machine
Remove Squeegees NOW
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Load
Transprt
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Load
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Auto
Board
Manual
Board
Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6A - MAGNETIC PILLARS TOOLING
User Manual 1.29

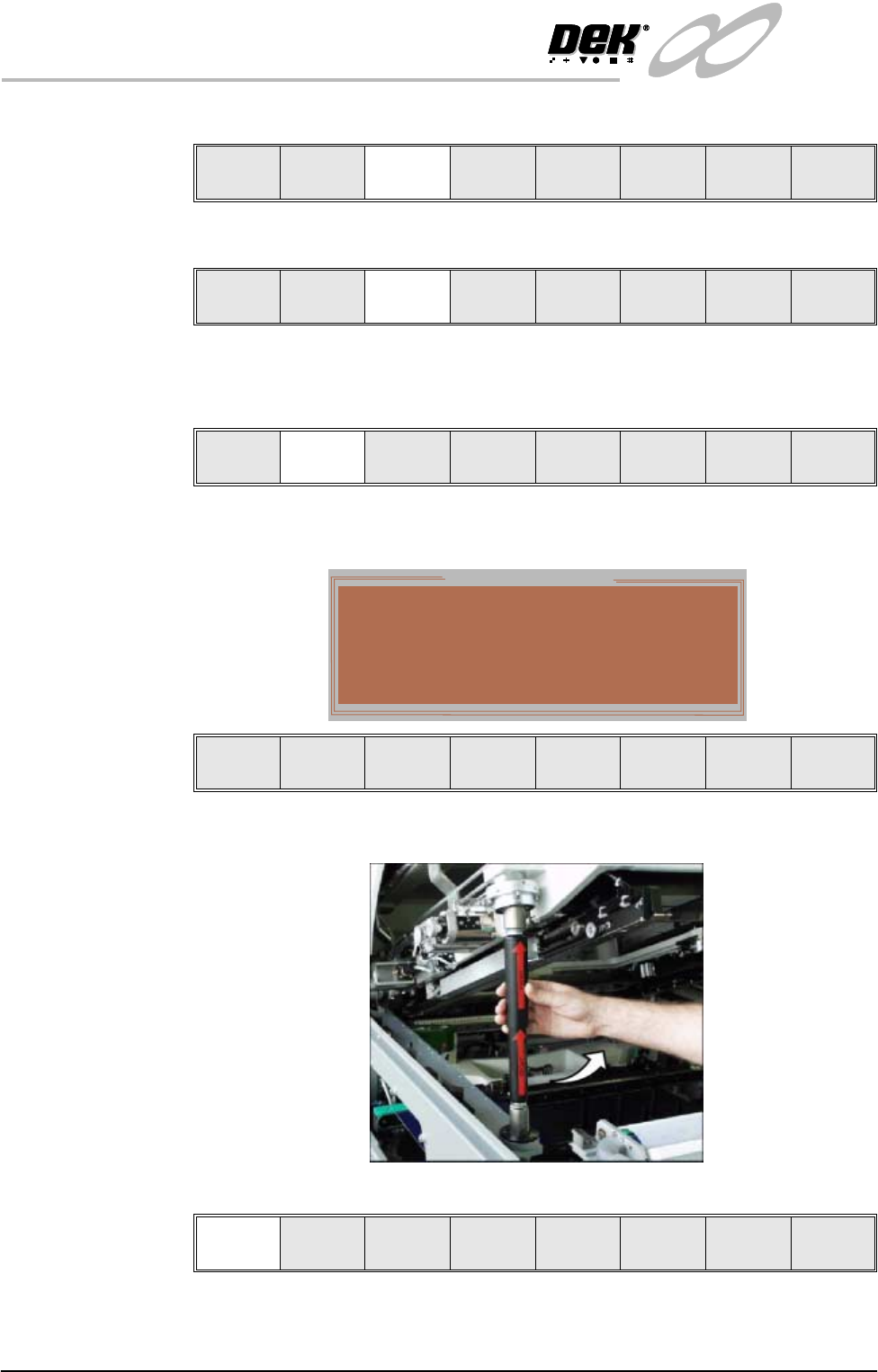

14. Select Raise Head (F7).
15. Raise the printhead using two button control.
The following window and menu bar is displayed:
16. Fit the head prop.
17. Press Confirm (F1).
18. Position the outermost support pins on the rising table under the board.
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6A - MAGNETIC PILLARS TOOLING
1.30 User Manual
19. Select Board Clamps (F3) to open the clamps.
20. Remove the board and select Board Clamps (F3) to close the clamps.
21. Complete the positioning of the support pins.
22. Select Lower Head (F2).
The following window and menu bar is displayed:
23. Remove the head prop.
24. Select Confirm (F1).
25. Lower the printhead using two button control.
26. Close the front printhead cover.
Lower
Head
Board
Clamps
Lower
Head
Board
Clamps
Lower
Head
Board
Clamps
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
Confirm Cancel
