INFINITY
MACHINE PROGRAMMING
STAGE 6A - MAGNETIC PILLARS TOOLING
User Manual 1.31
27. Press the System button.
28. Place the board on the input sensor of the upline conveyor of the machine.
29. Select Load (F1).
30. Select Auto Board (F1).
31. Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
32. Select Contact Height (F3).
The following window and menu bar is displayed:
33. Select Continue (F1). The message ‘Table at Contact Height. Check
Tooling Clearance’ is displayed.
34. Select Raise Head (F7).
35. Raise the printhead using two button control.
36. Fit the head prop.
Load
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Auto
Board
Manual
Board
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Contact
Height
Trans pr t
Height
Change
Screen
Raise
Head
Exit
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
Vision
Height
Raise
Head
Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6A - MAGNETIC PILLARS TOOLING
1.32 User Manual

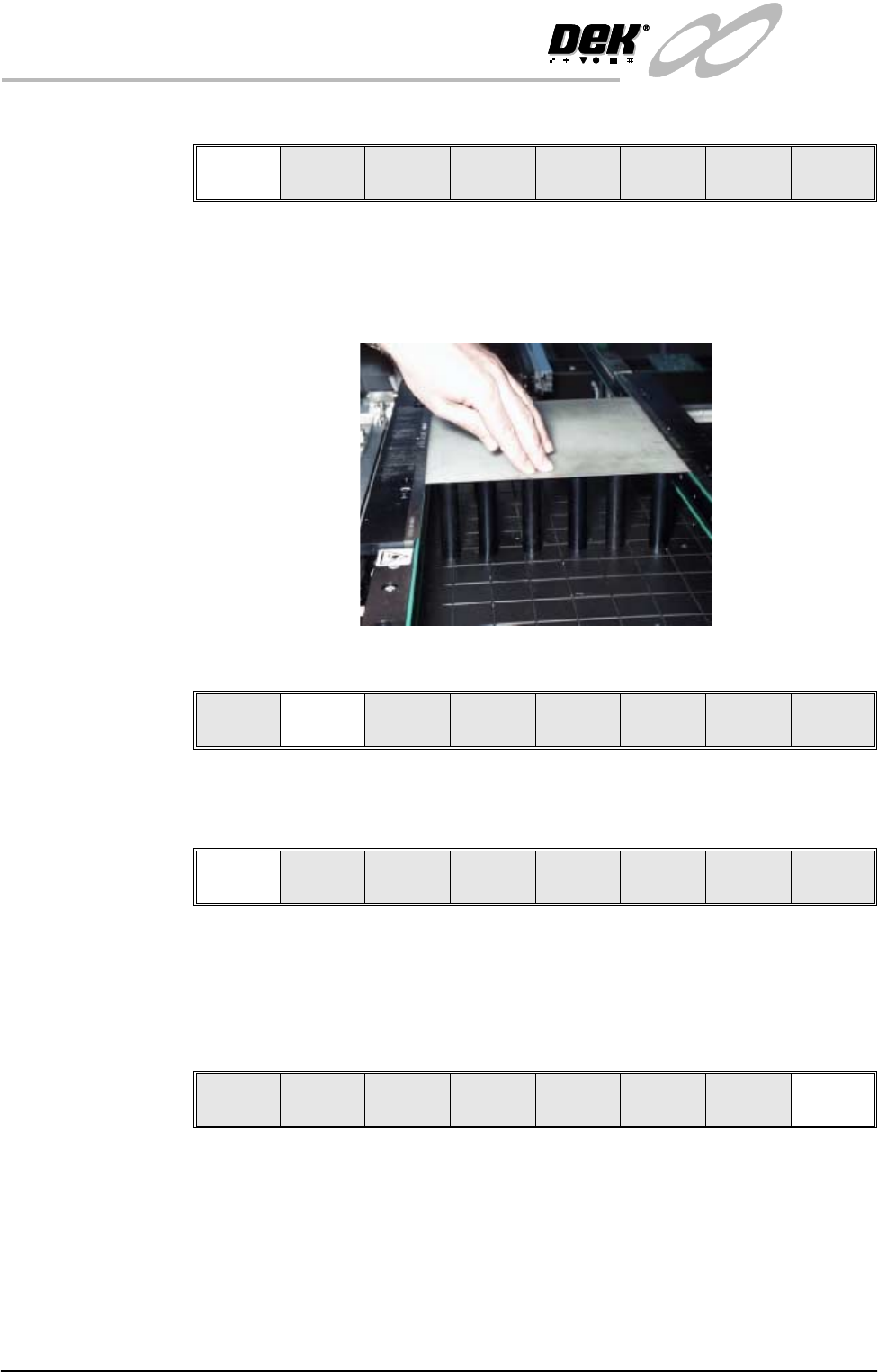

37. Press Confirm (F1).
38. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
NOTE
If adjustment is required, this can be carried out at Transport Height.
39. Select Lower Head (F2).
40. Remove the head prop.
41. Select Confirm (F1).
42. Lower the printhead using two button control.
43. Close the front printhead cover.
44. Press the System button.
45. Select Exit (F8).
Confirm
Lower
Head
Lower
Head
Confirm Cancel
Vision
Height
Raise
Head
Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6A - MAGNETIC PILLARS TOOLING
User Manual 1.33
The following window and menu bar is displayed:
46. Select Continue (F1).
47. Select Auto Board (F1).
48. Remove the board from the rails.
49. Select Continue (F1).
50. Go to Stage 7.
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
Auto
Board
Manual
Board
Continue Head
