INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
User Manual 1.67

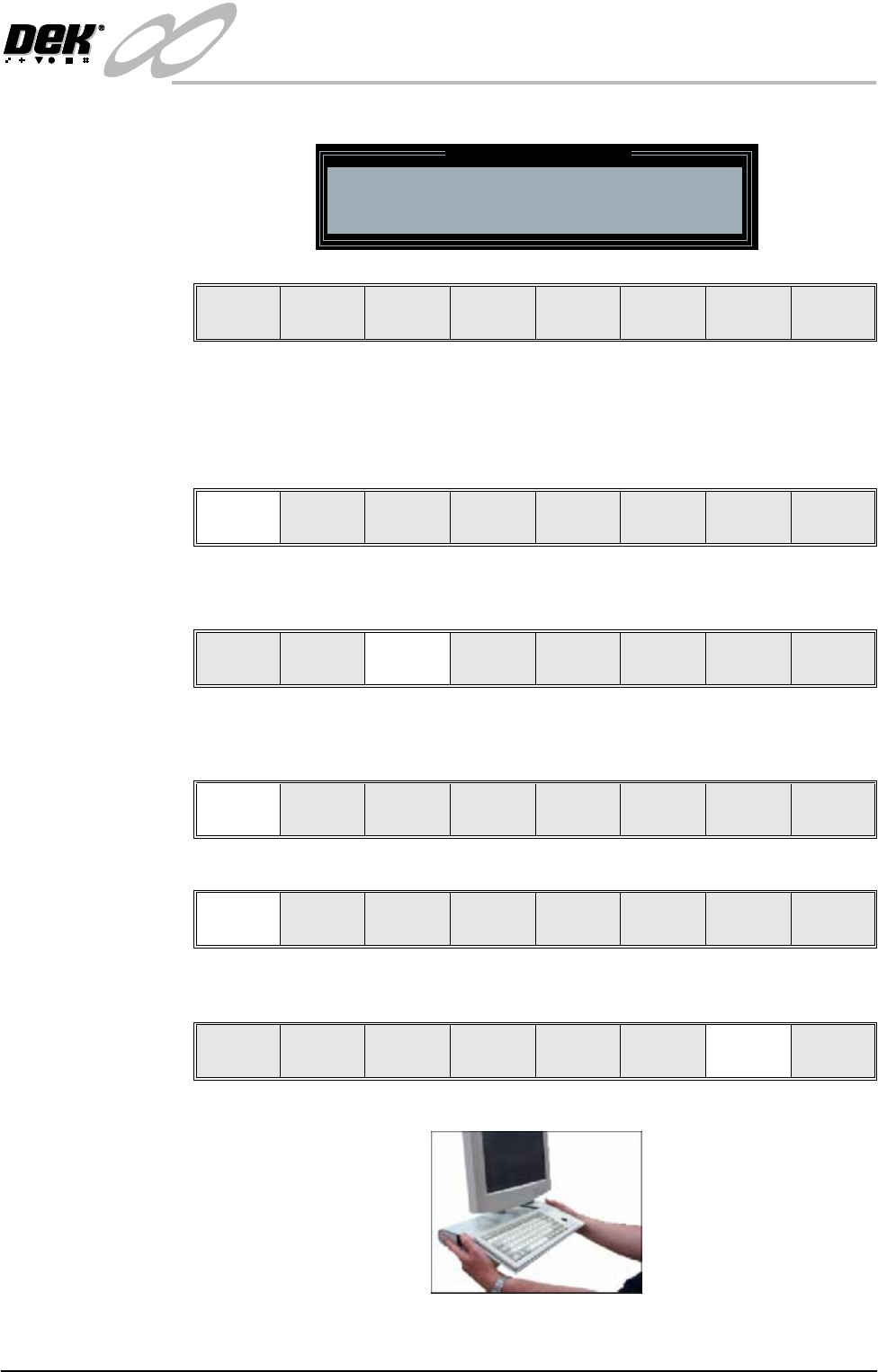

The following window and menu bar are displayed:
NOTE
If contaminated squeegees are fitted, these should be replaced at this point.
21. Select Continue (F1). The print carriage travels to the rear of the machine
and the following message is displayed ‘Table at Home Height’.
22. Select Transprt Height (F3), the message ‘Table at Transport Height’ is
displayed.
23. Place a board at the input sensor of the upline conveyor.
24. Select Load (F1).
25. Select Auto Board (F1).
26. Select Raise Head (F7).
27. Raise the head using two button control.
Generic Tooling Warning
WARNING Paste may drip into the machine
Remove Squeegees NOW
Continue
Open
Cover
No
Continue
Open
Cover
No
Load
Transprt
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Load
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
Auto
Board
Manual
Board
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Raise
Head
Exit
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
1.68 User Manual

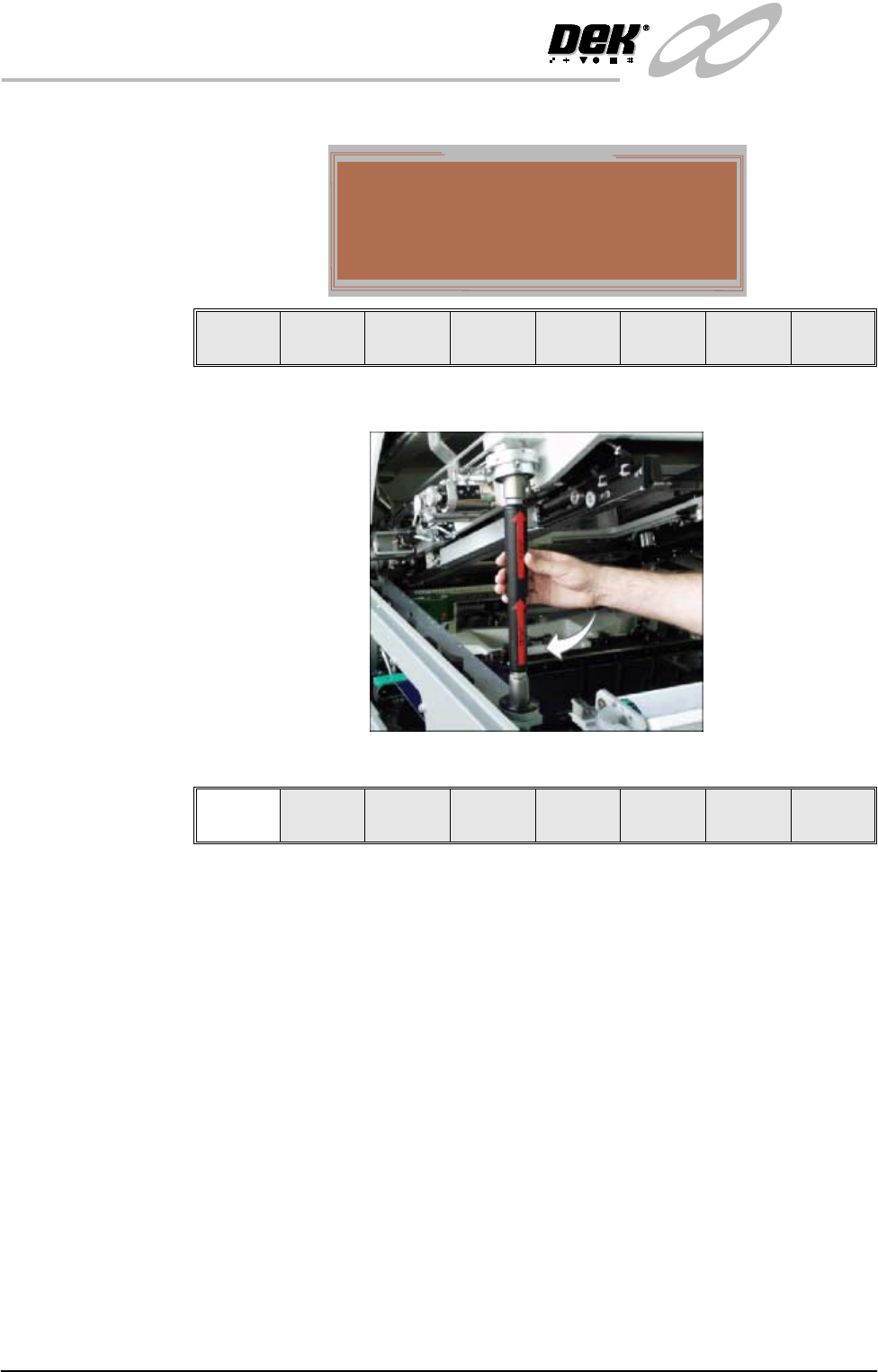

The following window and menu bar are displayed:
28. Fit the head prop.
29. Press Confirm (F1).
30. Slide the appropriate size and number of FormFlex blanking plates on to the
tooling modules outside the area of the squeegees/ProFlow transfer head.
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6E - FORMFLEX TOOLING
User Manual 1.69

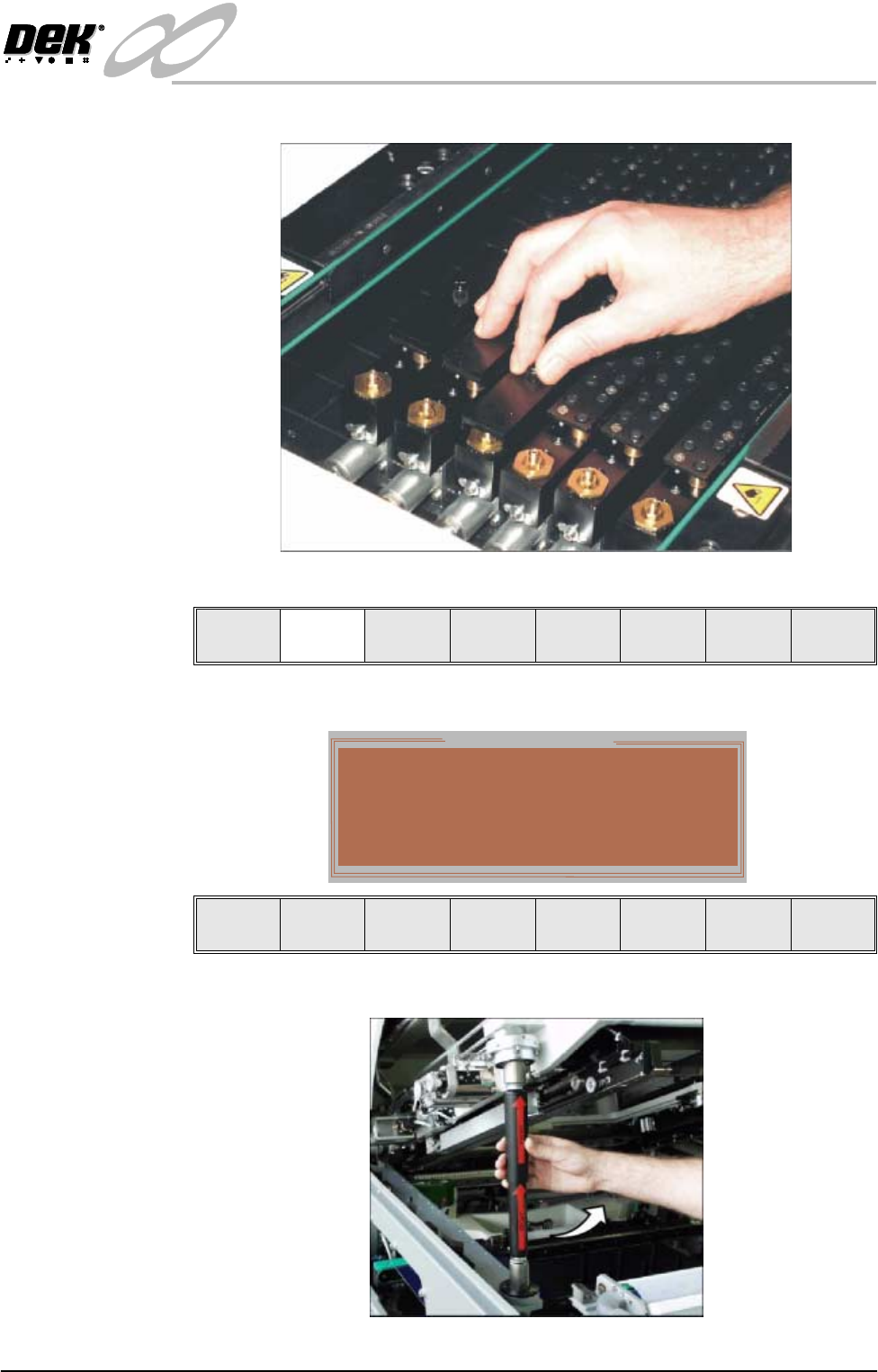

Secure the plates using the thumbscrews.
31. Select Lower Head (F2).
The following window and menu bar is displayed:
32. Remove the head prop.
Lower
Head
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
