INFINITY
MACHINE PROGRAMMING
STAGE 6D - MULTIFLEX TOOLING
1.50 User Manual
12. Select Exit (F8).
13. Select Full Width (F5). The message ‘Checking for a board on the belts’
is displayed. Whilst the rear rail is moving the following message ‘Rail
moving...’ is displayed.
14. Select Raise Head (F2).
15. Raise the printhead using two button control.
The following window and menu bar is displayed:
Save Next Previous Incr. Decr. Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Toolin g
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Toolin g
Exit
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6D - MULTIFLEX TOOLING
User Manual 1.51

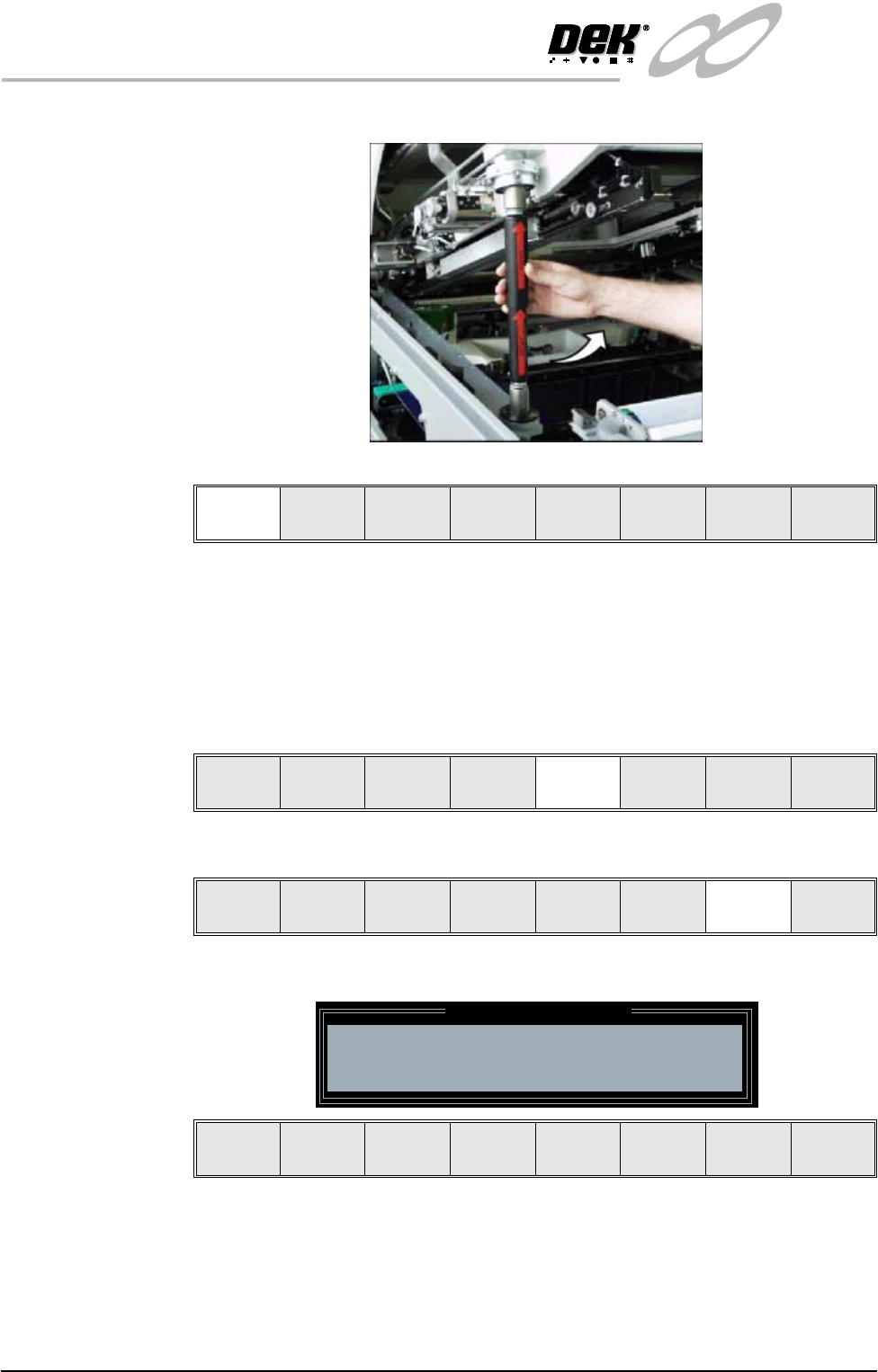

16. Fit the head prop.
17. Press Confirm (F1).
18. The MultiFlex tooling can now be fitted into the appropriate location holes in
the tooling plate. Ensure that the tooling is placed into the correct set of
holes, taking regard of the type of screen being used and hence the position
of the fixed rail.
19. Select Lower Head (F2).
The following window and menu bar is displayed:
Confirm
Lower
Head
Adjust
Lower
Head
Board
Clamps
Set
Stop
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
INFINITY
MACHINE PROGRAMMING
STAGE 6D - MULTIFLEX TOOLING
1.52 User Manual
20. Remove the head prop.
21. Select Confirm (F1).
22. Lower the printhead using two button control.
23. Close the front printhead cover.
24. Press the System button.
25. Select Board Width (F5). The message ‘Checking for a board on the
belts’ is displayed. Whilst the rear rail is moving the following message ‘Rail
Moving...’ is displayed.
26. Select Generic Tooling (F7).
The following window and menu bar is displayed:
NOTE
If contaminated squeegees are fitted, these should be replaced at this point.
27. Select Continue (F1). The print carriage travels to the rear of the machine
Confirm Cancel
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Toolin g
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Tooling
Exit
Generic Tooling Warning
WARNING Paste may drip into the machine
Remove Squeegees NOW
Continue
Open
Cover
Exit
