INFINITY
MACHINE PROGRAMMING
STAGE 6C - DEDICATED TOOLING
1.42 User Manual
6. Select Save (F2). The message ‘Saving fiducial data - Please wait Board
data file saved’ is displayed.
7. Select Exit (F8).
8. Select Full Width (F5). The message ‘Checking for a board on the belts’
is displayed. Whilst the rear rail is moving the following message ‘Rail
Moving...’ is displayed.
9. Select Raise Head (F2).
10. Raise the printhead using two button control.
The following window and menu bar is displayed:
Save Next Previous Incr. Decr. Exit
Save Next Previous Incr. Decr. Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Generic
Toolin g
Exit
Adjust
Raise
Head
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Generic
Toolin g
Exit
Hazardous Operation
The head must be propped while it is
raised
Insert the Head Prop.
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6C - DEDICATED TOOLING
User Manual 1.43

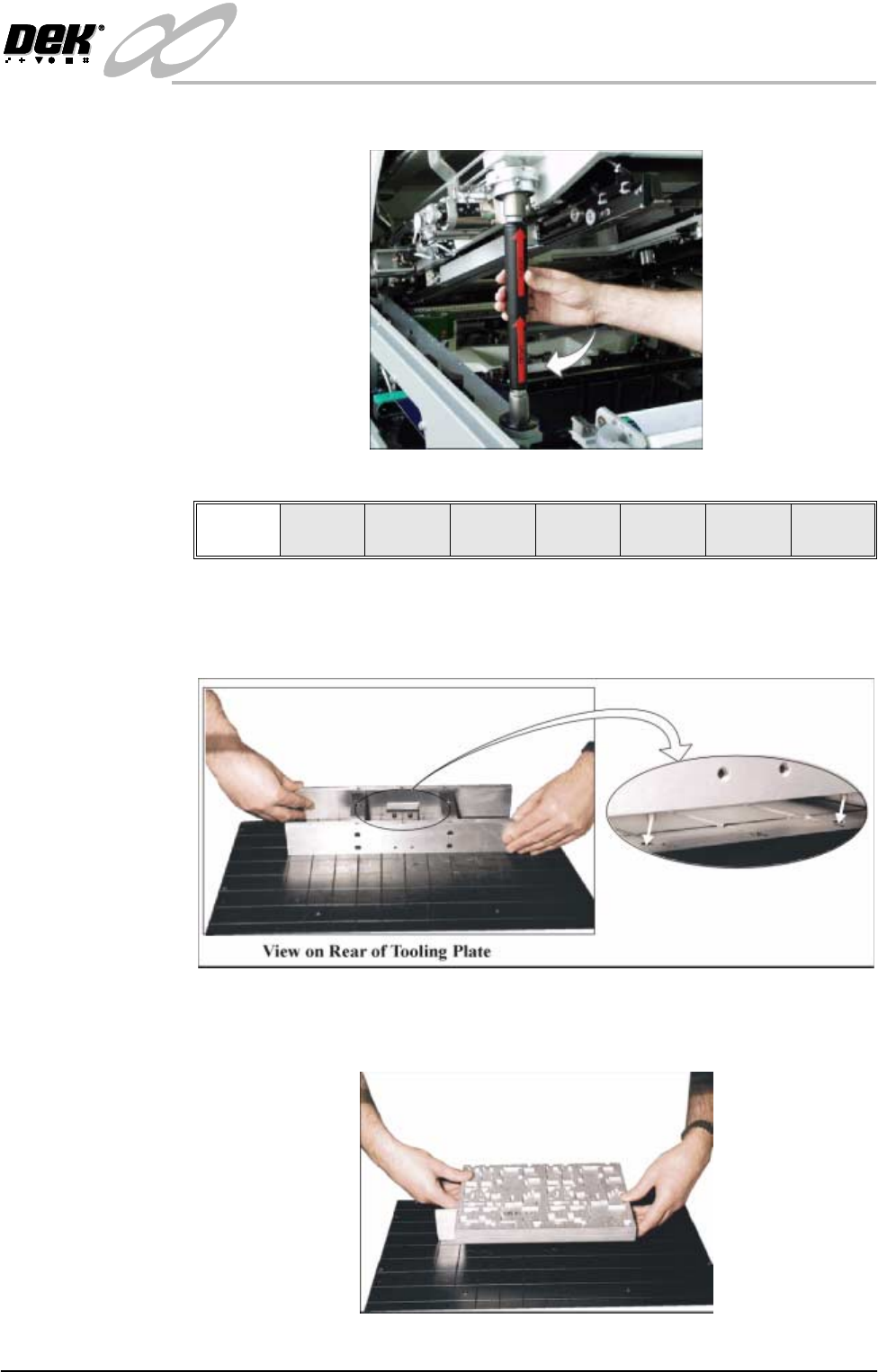

11. Fit the head prop.
12. Press Confirm (F1).
13. Fit the tooling tower to the manual tooling plate. Ensure the dowels on the
front edge of the tooling tower base are correctly seated in the holes in the
front edge of the manual tooling plate.
14. Verify the plate assembly orientation and fit the assembly to the tooling
tower. Ensure the dowels of the plate assembly are correctly seated in the
holes in the tooling tower.
Confirm
Lower
Head
INFINITY
MACHINE PROGRAMMING
STAGE 6C - DEDICATED TOOLING
1.44 User Manual

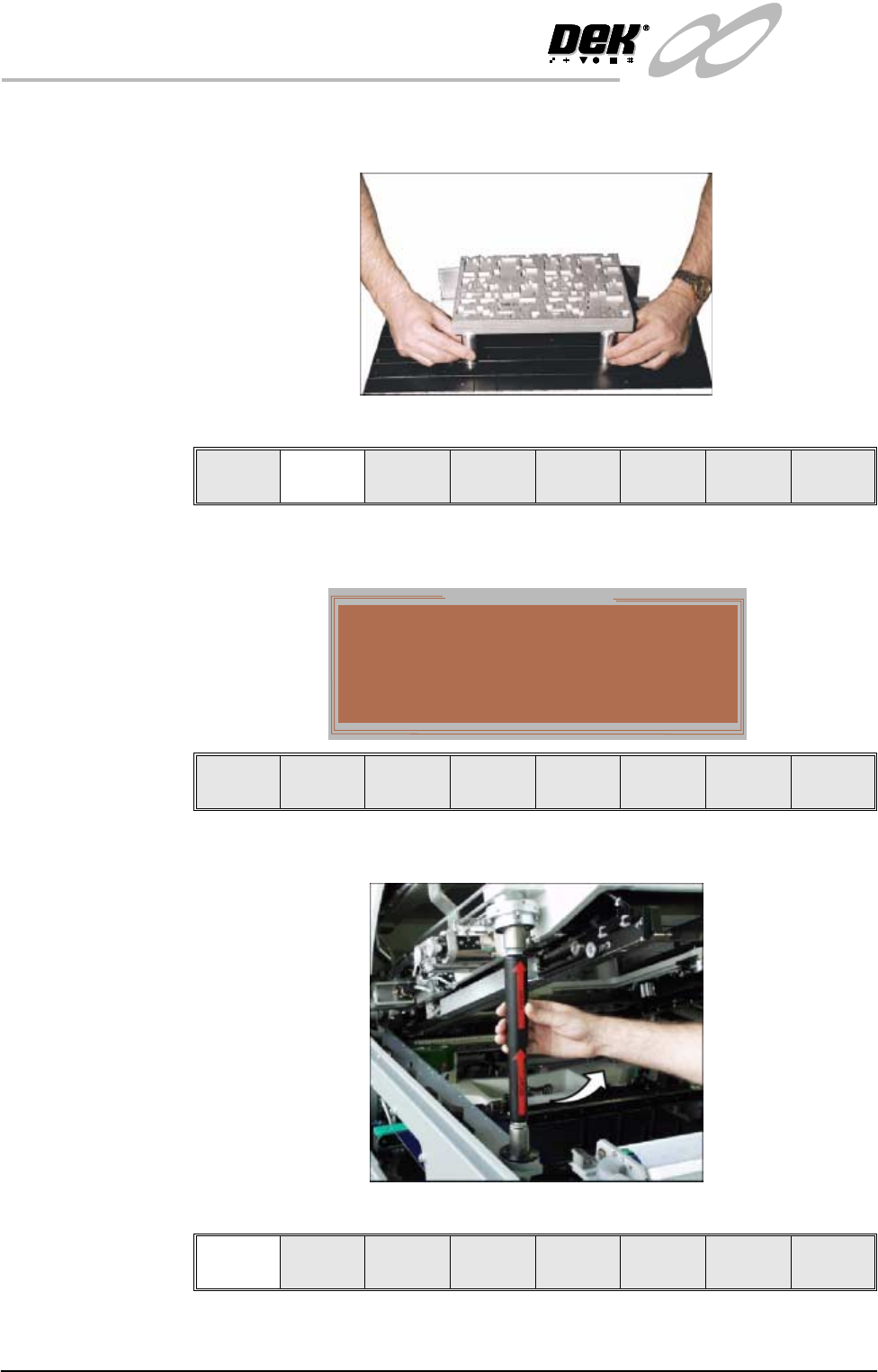

15. If required, slide additional magnetic pins beneath the plate assembly to fully
support it when printing wide boards.
16. Select Lower Head (F2).
The following window and menu bar is displayed:
17. Remove the head prop.
18. Select Confirm (F1).
19. Lower the printhead using two button control.
Adjust
Lower
Head
Board
Clamps
Set
Stop
Hazardous Operation
The head is about to be lowered
Remove the Head Prop and confirm that
everyone is standing clear.
Confirm Cancel
Confirm Cancel
