15.2.2 Installation of the stoppers
Caution: Before the stopper is mounted in the machine, it should be adjusted with the guide strip
and the shims. Care should be taken to ensure that the stopper is not too loose or too tight. The
graduation of the shims is 0.1mm.
(See also Fig. 209, page - 232.)
O Clean the conveyor tub in the area of the guide strip with a lint-free cloth moistened with ethyl
alcohol.
O Push the guide strip into the conveyor from outside.
O Push the stopper units carefully onto the guide strip.
Be careful not to damage the sliding guides when pushing onto the guide rail!
Fig. 184 Push the guide strip into the conveyor
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
205
O Attach the guide strip to the holders with two cylinder head bolts (hexagon socket head
M5 x 20 DIN 912).
O Test whether the trailing cable can move freely by pushing it to the end from the side.
O For the HF-/X-Series (mounting tub 604 mm) with dual and single conveyor, the following dis-
tances must be observed:
Fig. 185 Distances for the trailing cable distance blocks (HF, X-Series)
For a dual conveyor, stick an additional "Distance block for energy chain, complete" in the mid-
dle between the two energy chain distance blocks for better movement of the trailing cable.
[03043432-xx]. 15
O Using the adhesive tape, stick the distance block of the trailing cable onto the mounting tub
under the second conveyor side parallel to the guide rail (or to the width adjustment) in such a
way that the trailing cable stands vertical when the guide rail is installed.
Conveyor track 2 Conveyor track 1
Distance block for energy chain
Left
conveyor side
Right
conveyor side
340 mm 260 mm
440 mm
160 mm
Transport direction
Left side of
mounting tub
Right side of
mounting tub
604 mm
Assembly Instructions PCB Stopper Single Conveyor SIPLACE S-27HM / HS-60 / D4 / D3 / HF- / X-Series
Edition 06/2007
206
O For a single conveyor, stick the distance block onto the position of conveyor track 1. The stop-
per must be able to slide over the entire conveyor width. The distance block stuck on the floor
of the mounting tub must be positioned so that the trailing cables run parallel to the guide strip
of the stopper. If other cables prevent this, they must be repositioned.

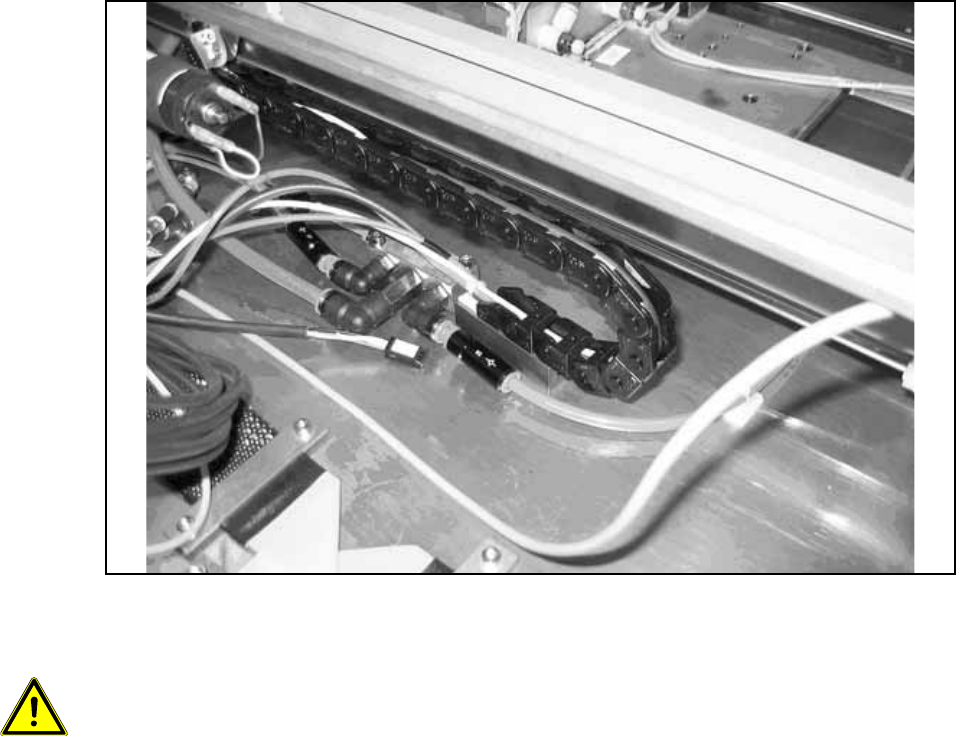

Fig. 186
15
Caution, crash hazard:
– It is essential to ensure that the stopper and the trailing cables do not collide with the width
adjustment or its conveyor belt.
– The stoppers must be able to slide over the entire conveyor width.
– The trailing cable of conveyor track 1 must run exactly on the trailing cable of the stopper in
conveyor track 2 and must not tilt to the side.
– The distance between the two distance blocks should be approx. 100 mm.
– The laying of cables and tubing are described in a later section for functional reasons.
