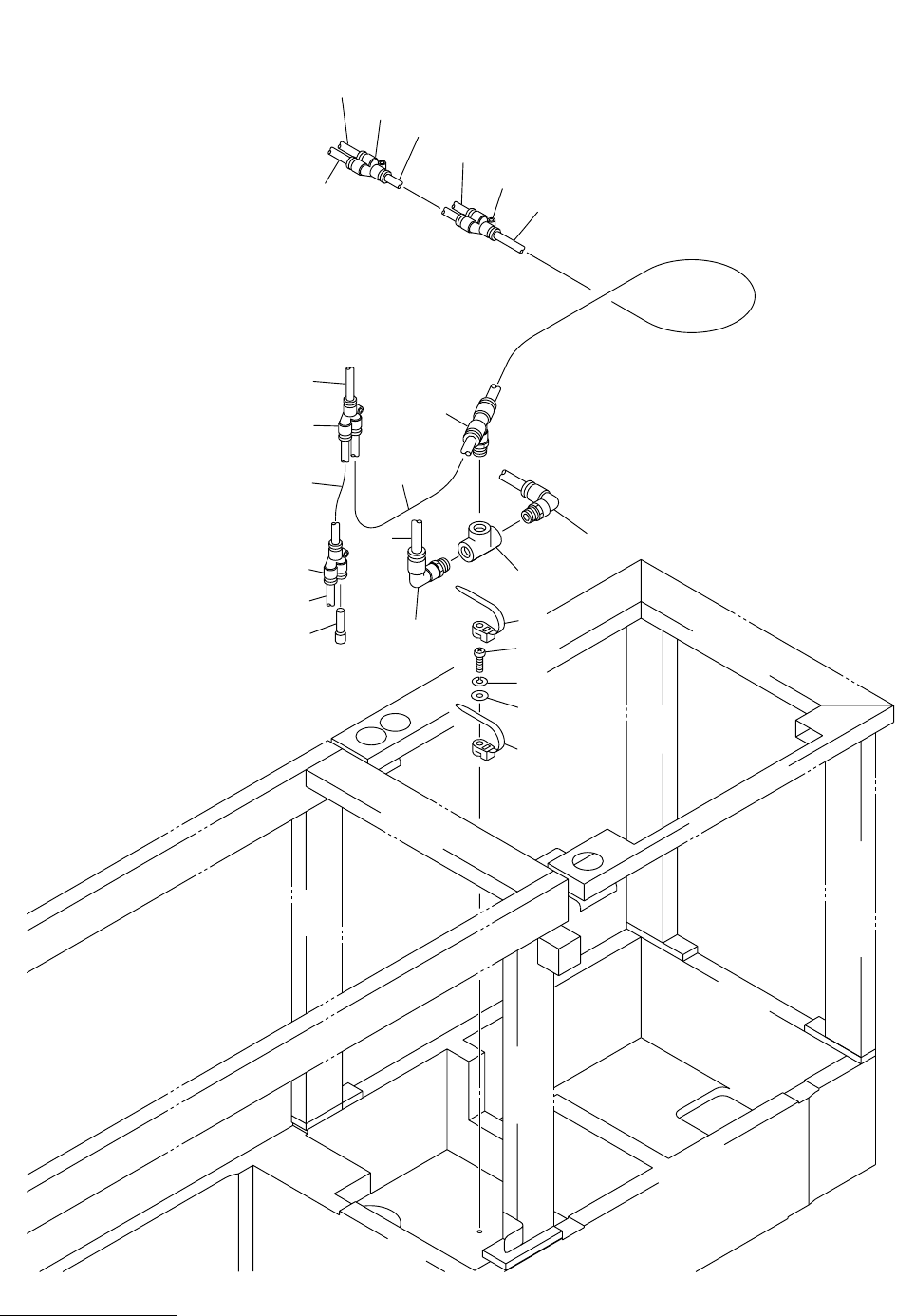

MODEL TDM-3000E-2 0208-001 104 空圧制御部 PNEUMA TIC SECTION Fig. 7-3 エア配管２ Air Piping-2 Fig.7-3 111 103 105 106 109 106 108 107 110 112 112 113 116 115 114 97 100 99 98 97 101 102 102 104 TDM-3000E-2
103
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
7-2
1 630 053 8540 SOLENOID VALVE 1 #SS5Y3-X188 645F--04H-030
1 -2 630 081 3593 SOLENOID VALVE 2 SV10A,10B,SV11A,11B
1 -3 630 003 6541 AIR LINE EQPT 2
1 -4 630 052 1993 PIPE FITTINGS 1
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
MODEL TDM-3000E-2
0208-001
104
空圧制御部 PNEUMATIC SECTION
Fig. 7-3 エア配管２ Air Piping-2
Fig.7-3
111
103
105
106
109
106
108
107
110
112
112
113
116
115
114
97
100
99
98
97
101
102
102
104
TDM-3000E-2
105
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
7-3
97 630 000 1174 ACCESSORY,WIRING 2
98 411 088 1702 WASHER V 5X10X1 1 FW5 F
99 411 008 2109 WASHER SPR 5 1 SW5 F
100 411 113 2803 SCR PAN 5X8 1 M5X8 PAN
101 630 003 8071 PIPE FITTINGS 1
102 630 003 7364 PIPE FITTINGS 2
103 630 003 7548 PIPE FITTINGS 1
106 630 003 7708 PIPE FITTINGS 2
107 630 003 7791 PIPE FITTINGS 1
112 630 003 7708 PIPE FITTINGS 2
