MODEL TDM-3000E-2 0208-001 82 R コンベア部 R CONVEYOR SECTION Fig. 5-3 ドライブシャフト Driving Shaft 5 4 5 50 4 3 12 11 2 1 6 6-1 7 8 9 6 6-1 7 8 9 14 13 22 22 2 1 Fig.5-3 TDM-3000E-2
81
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
5-2
1 630 053 5396 BRACKET(MOTOR) 1 645H--04B-010
2 630 003 2574 GEAR,REDUCTION 1 645H--04H-016
3 630 049 0831 MOTOR,REVERSIBLE 1 M2,3RK15GN-AUL 100V
645H--04H-015
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7824 BOLT,HEX-SCT 2 M5X45
7 630 009 2684 PULLEY,TIMING 2 645H--04H-017
8 630 000 8944 SET SCREW 4 M5X6 SET
9 630 053 4351 BELT,TIMING 1 645H--04H-018
10 411 141 4107 WASHER V 5X10X1 1 FW5
11 411 141 6705 WASHER SPR 5 1 SW5
12 630 000 7749 BOLT,HEX-SCT 1 M5X10
13 630 001 0220 WASHER 1 645H--04H-027
14 411 141 6705 WASHER SPR 5 1 SW5
15 630 000 7756 BOLT,HEX-SCT 1 M5X12
MODEL TDM-3000E-2
0208-001
82

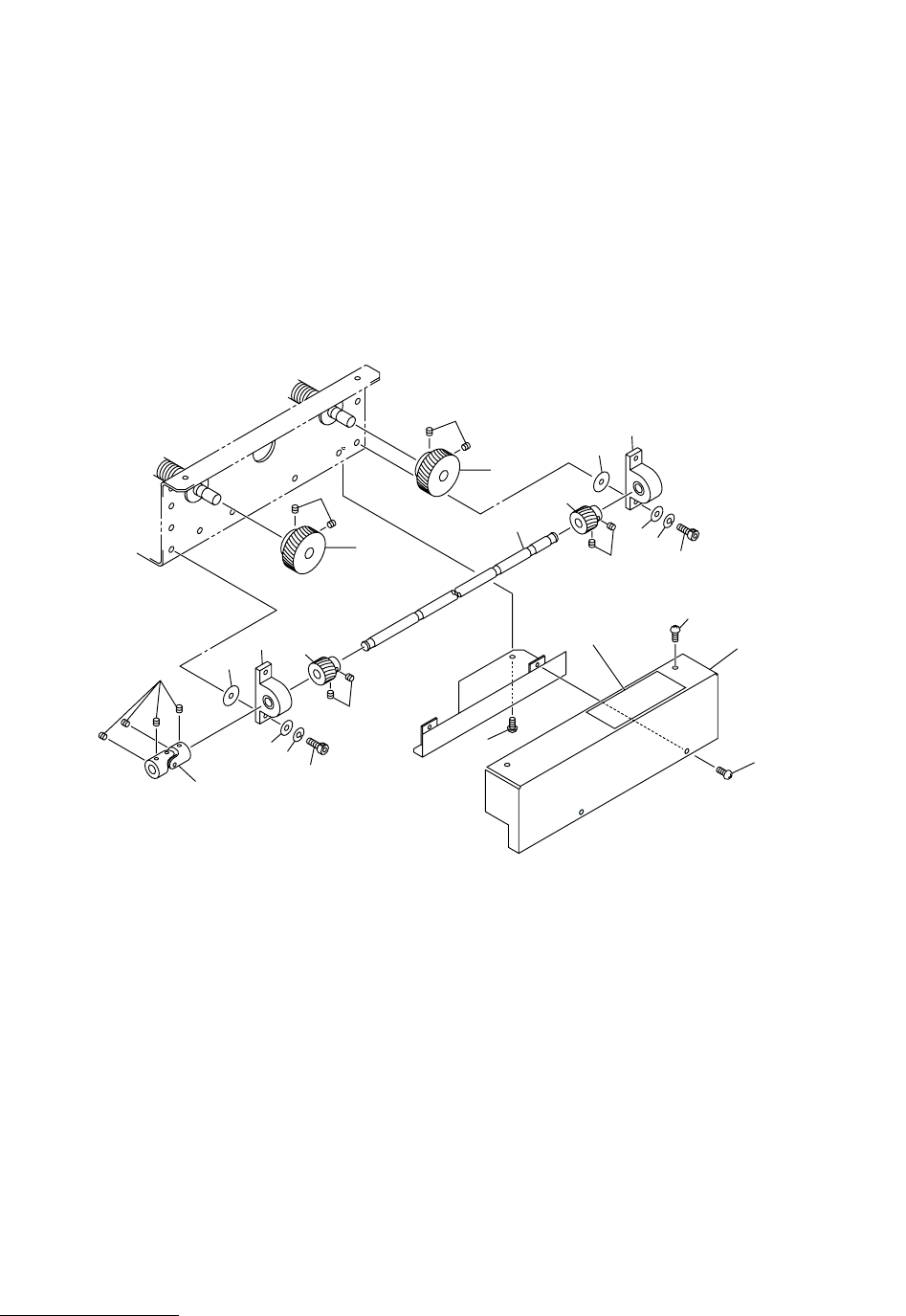

R コンベア部 R CONVEYOR SECTION
Fig. 5-3 ドライブシャフト Driving Shaft
5
4
5
50
4
3
12
11
2
1
6
6-1
7
8
9
6
6-1
7
8
9
14
13
22
22
2
1
Fig.5-3
TDM-3000E-2
83
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
5-3
1 630 028 9493 GEAR 2 645H--04H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 053 4122 SHAFT 1 645H--04B-009
4 630 028 9480 GEAR 2 645H--04H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 2 645H--04H-005
6 -1 630 042 2115 WASHER 4 645H--04H-014
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7770 BOLT,HEX-SCT 4 M5X20
11 630 008 1268 COUPLING 1 645H--04H-008
12 630 000 8944 SET SCREW 4 M5X6 SET
13 630 063 2989 COVER 1 645H--04B-018
14 630 000 8920 SET SCREW 2 M4X6 SET
21 630 063 2965 COVER 1 645H--04B-034
22 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
50 630 082 6159 NAME PLATE,PARTS 1 645H--04B-037
