P-0222-001.pdf - 第150页
MODEL TDM-3000E-2 0210-001 148 1 9 12 12 11 10 9 8-1 8 9 6 3 7 2 4 7 5 Fig.9-2 TDM-3000E-2 カバー部 COVER SECTION Fig. 9-2 本体カバー Body Cover
147
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
9-1
1 630 067 5474 STAY 1 645R--04B-027
2 630 001 0237 WASHER 2 BW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7916 BOLT,HEX-SCT 2 M6X30
6 630 058 4899 BRACKET 1 645R--04B-028
7 630 058 4844 BRACKET 2 645R--04B-024
8 411 141 4107 WASHER V 5X10X1 8 FW5
9 411 141 6705 WASHER SPR 5 8 SW5
10 630 000 7749 BOLT,HEX-SCT 8 M5X10
11 630 059 2924 COVER 1 645R--04B-026
12 630 050 7461 BRACKET 1 645R--04B-036
13 630 001 0220 WASHER 6 BW5
14 411 141 6705 WASHER SPR 5 6 SW5
15 630 000 7756 BOLT,HEX-SCT 6 M5X12
16 630 001 0220 WASHER 2 BW5
17 411 141 6705 WASHER SPR 5 2 SW5
18 630 000 7756 BOLT,HEX-SCT 2 M5X12
19 411 141 4107 WASHER V 5X10X1 3 FW5
20 411 141 6705 WASHER SPR 5 3 SW5
21 630 000 7749 BOLT,HEX-SCT 3 M5X10
30 630 030 0031 MECH PARTS(BRACKET) 4 645R--04H-008
30 -1 630 074 7447 BRACKET 2 645R--04H-050
31 411 141 4107 WASHER V 5X10X1 12 FW5
32 411 141 6705 WASHER SPR 5 12 SW5
33 630 000 7763 BOLT,HEX-SCT 12 M5X16
34 630 058 9412 COVER 1 645R--04B-025
35 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
41 630 038 9698 COLLAR 2 645R--04B-023
42 630 028 9909 MECH PARTS(URETHANES) 2 645R--04H-004
43 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
44 411 141 3001 WASHER SPR 6 2 SW6
45 630 000 7916 BOLT,HEX-SCT 2 M6X30
MODEL TDM-3000E-2
0210-001
148
1
9
12
12
11
10
9
8-1
8
9
6
3
7
2
4
7
5

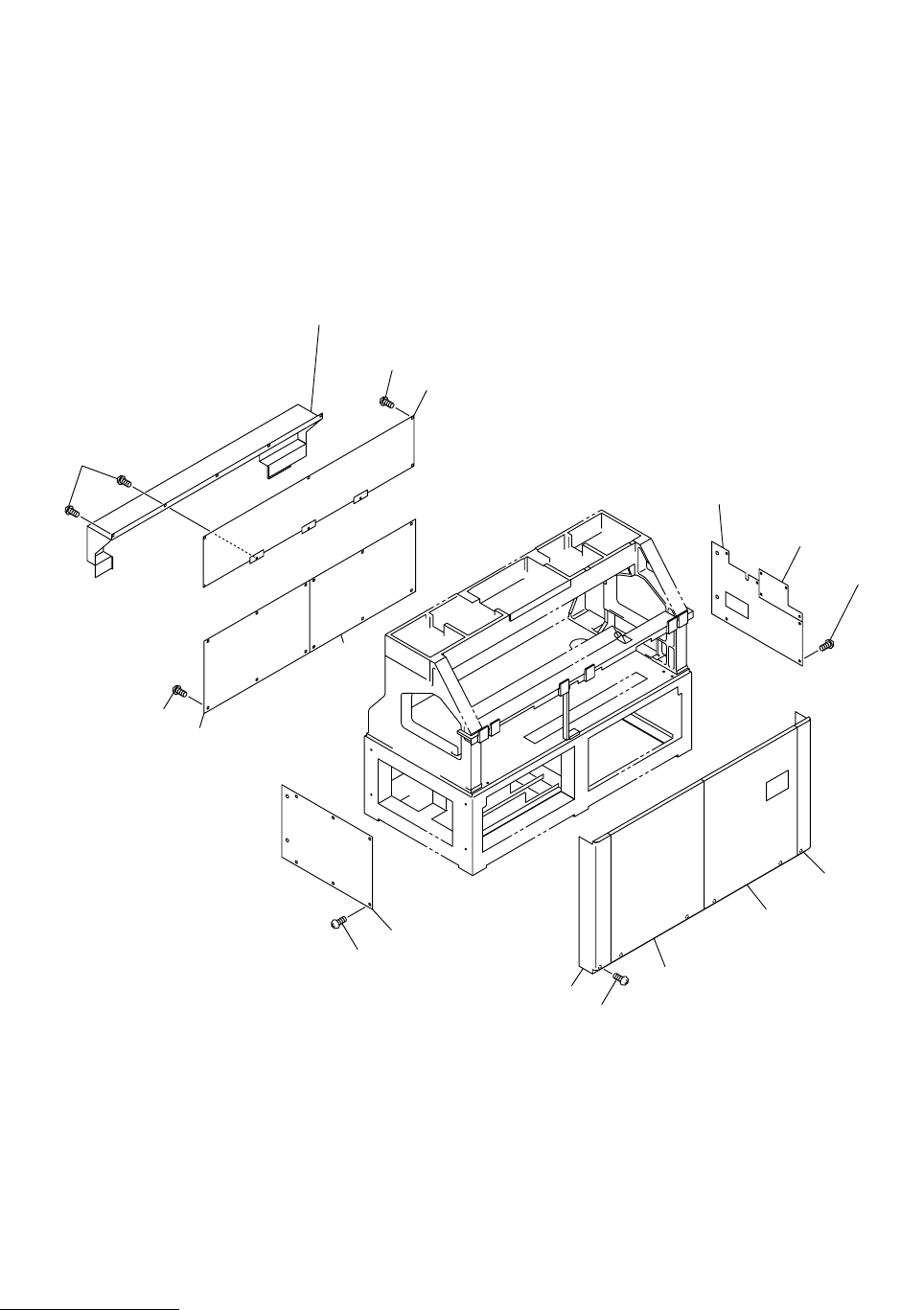

Fig.9-2
TDM-3000E-2
カバー部 COVER SECTION
Fig. 9-2 本体カバー Body Cover
149
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
9-2
1 630 058 3168 COVER 1 645R--04B-029
2 630 058 3137 COVER 1 645R--04B-032
3 630 058 3151 COVER 1 645R--04B-030
4 630 058 3144 COVER 1 645R--04B-031
5 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
6 630 061 5647 COVER 1 645R--04B-034
7 630 061 5654 COVER 2 645R--04B-035
8 630 062 7251 COVER 1 645R--04B-033
8 -1 630 060 6423 COVER 1 645R--04B-046
9 411 113 9109 SCR TRS 5X10 27 M5X10 TRS
10 630 059 5765 COVER 1 645R--04B-043
11 630 061 7160 COVER 1 645R--04B-044
12 411 113 9109 SCR TRS 5X10 15 M5X10 TRS
