95 Key No. P AR T No. P A R T NAME Q’ty REMARKS NOTE MODEL TDM-3000E-2 0208-001 6-3 1 630 053 5082 BRACKET(MOTOR) 1 645F--04B-003 2 630 005 7980 MOTOR,STEPPING 1 PM1(TR),#103-8573-5040 645F--04H-010 3 411 1 4 1 4 1 0 7 W…
MODEL TDM-3000E-2
0208-001
94
トランスファ部 TRANSFER SECTION

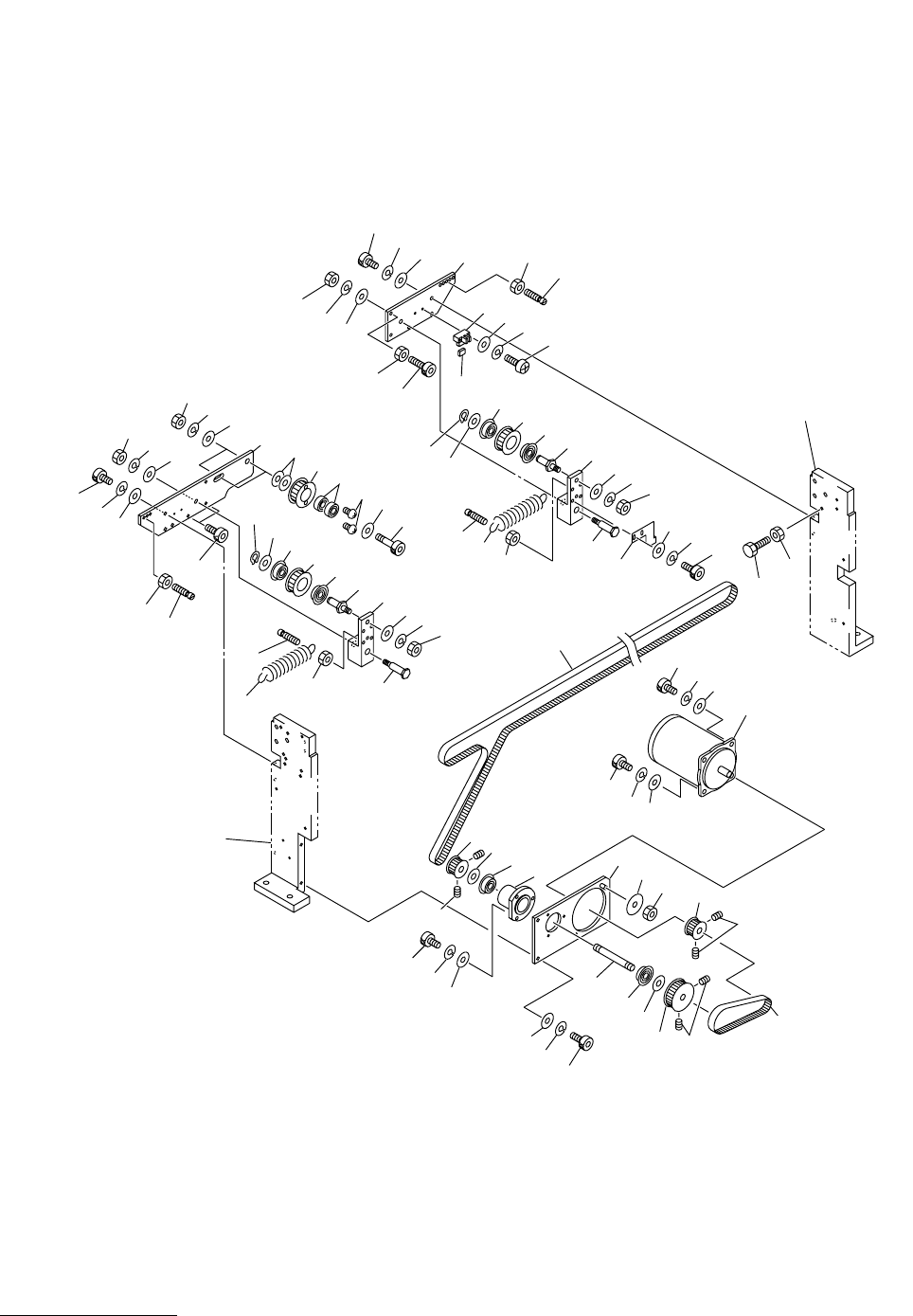

Fig. 6-3 トランスファ駆動部 Transfer Driver
Fig.6-3
TDM-3000E-2
See Fig.6-1
Key No.2
See Fig.6-1
Key No.1
6
4
3
2
5
4
3
1
7
8
9
63
64
59
10
20
22
21
16
14
23
26
25
24
15
16
17
18
19
11
12
13
29
30
31
32
33
52
53
43
41
42
40
41
39
62
61
60
62
61
60
44
45
46
47
34
38
50
49
48
37
36
35
27
50
49
54
55
48
43
41
42
40
41
55
58
54
39
44
45
46
47
65
55
57
54
51
38
66
67
68
69
55
5428
70
71
72
73
95
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
6-3
1 630 053 5082 BRACKET(MOTOR) 1 645F--04B-003
2 630 005 7980 MOTOR,STEPPING 1 PM1(TR),#103-8573-5040
645F--04H-010
3 411 141 4107 WASHER V 5X10X1 2 FW5
4 411 141 6705 WASHER SPR 5 2 SW5
5 630 000 7756 BOLT,HEX-SCT 1 M5X12
6 630 000 7770 BOLT,HEX-SCT 1 M5X20
7 630 001 0220 WASHER 1 645F--04H-021
8 411 141 0505 NUT HEX 5 1 M5
9 630 049 3894 PULLEY,TIMING(10L050) 1 645F--04H-007
10 630 000 8951 SET SCREW 2 M5X8 SET
11 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
12 411 141 3001 WASHER SPR 6 2 SW6
13 630 000 7893 BOLT,HEX-SCT 2 M6X20
14 630 053 5105 HOLDER(BEARING) 1 645F--04B-005
15 630 048 8739 SHAFT(1) 1 645F--04B-004
16 630 001 1432 BEARING,RADIAL 2 645F--04H-012
17 411 141 6507 WASHER F 12X21X2.5 1 FWS12
18 630 049 3887 PULLEY,TIMING(16L050) 1 645F--04H-006
19 630 000 8951 SET SCREW 2 M5X8 SET
20 630 053 7529 BELT,TIMING 1 645F--04H-008
21 411 141 6507 WASHER F 12X21X2.5 1 FWS12
22 630 049 3900 PULLEY,TIMING(10L050) 1 645F--04H-023
23 630 000 8944 SET SCREW 2 M5X6 SET
24 411 141 4107 WASHER V 5X10X1 3 FW5
25 411 141 6705 WASHER SPR 5 3 SW5
26 630 000 7763 BOLT,HEX-SCT 3 M5X16
27 630 053 5136 PLATE(L) 1 645F--04B-007
28 630 053 5143 PLATE(R) 1 645F--04B-017
29 411 141 6309 WASHER F 10X18X2 4 FWS10
30 630 048 8777 PULLEY(IDLE) 2 645F--04B-006
31 630 001 1272 BEARING,RADIAL 4 645F--04H-011
32 411 050 5004 SCR TRS 3X6 4 M3X6 TRS
33 411 141 6309 WASHER F 10X18X2 2 FWS10
34 630 000 8159 BOLT,HEX-SCT 2 M10X40
35 411 141 4701 WASHER V 10X21X2 2 FW10
36 411 141 3209 WASHER SPR 10 2 SW10
37 411 141 1106 NUT HEX 10 2 M10
38 630 048 8890 LEVER 2 645F--04B-009
39 630 048 8883 SHAFT(2) 2 645F--04B-008
40 630 049 3870 PULLEY,TIMING(14L050) 2 645F--04H-002
41 630 001 1425 BEARING,RADIAL 4 645F--04H-018
42 411 141 6309 WASHER F 10X18X2 2 FWS10
43 411 000 7102 RING C 10 2 645F--04H-027
44 411 141 6101 WASHER F 8X15.5X1.6 2 FWS8
45 411 141 3100 WASHER SPR 8 2 SW8
46 411 141 0901 NUT HEX 8 2 M8
47 630 048 8906 SHAFT(LEVER) 2 645F--04B-010
48 411 141 6101 WASHER F 8X15.5X1.6 2 FWS8
49 411 141 3100 WASHER SPR 8 2 SW8
MODEL TDM-3000E-2
0208-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
96
50 411 141 0901 NUT HEX 8 2 M8
51 630 000 7855 BOLT,HEX-SCT 2 M6X8
52 411 141 0703 NUT HEX 6 1 M6
53 630 000 7923 BOLT,HEX-SCT 1 M6X35
54 411 141 0703 NUT HEX 6 4 M6
55 630 042 2122 HOOK 4 645F--04H-031
57 630 003 0310 SPRING,TENSION 1 645F--04H-016
58 630 003 0587 SPRING,TENSION 1 645F--04H-014
59 630 053 8762 BELT,TIMING 1 645F--04H-009
60 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
61 411 141 3001 WASHER SPR 6 4 SW6
62 630 000 7893 BOLT,HEX-SCT 4 M6X20
63 411 004 5104 NUT HEX 6 1 M6 F
64 630 044 4469 BOLT,HEX 1 645F--04H-029
65 630 048 8807 PLATE(SHADE A) 1 645F--04B-016
66 411 141 4008 WASHER V 4X9X0.8 2 FW4
67 411 141 2905 WASHER SPR 4 2 SW4
68 630 000 7619 BOLT,HEX-SCT 2 M4X8
69 630 000 0252 SENSOR,PHOTO 1 PHS4 645F--04H-005
70 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 645F--04H-025
71 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
72 411 086 4408 WASHER SPR 3 2 SW3 F
73 411 113 0502 SCR PAN 3X14 2 M3X14 PAN
6-3
