MODEL TDM-3000E-2 0208-001 142 電気制御部 ELECTRICAL SECTION Fig. 8-15 L コンベア部 L Conveyor Section 26-1 29 42 1 13 12 11 14 8 9 34 33 30 32 31 30 35 23 22 21 24 42 41 28 27 26 10 10-1 . See Fig.4-1 Key No.2 Fig.8-15 TDM-3000E-…
141
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
1 630 057 8799 BOX 1 645FB-04V-002
2 630 000 3963 CONNECTOR 2 CN303,CN304 645FB-04D-013
3 411 002 2600 SCR FLT 3X6 6 M3X6 FLT
4 630 001 0220 WASHER 2 BW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7756 BOLT,HEX-SCT 2 M5X12
12 630 000 3970 CONNECTOR 2 645FB-04D-014
20 630 062 3185 NAME PLATE,PARTS 1 645M--04D-016
8-14
MODEL TDM-3000E-2
0208-001
142
電気制御部 ELECTRICAL SECTION

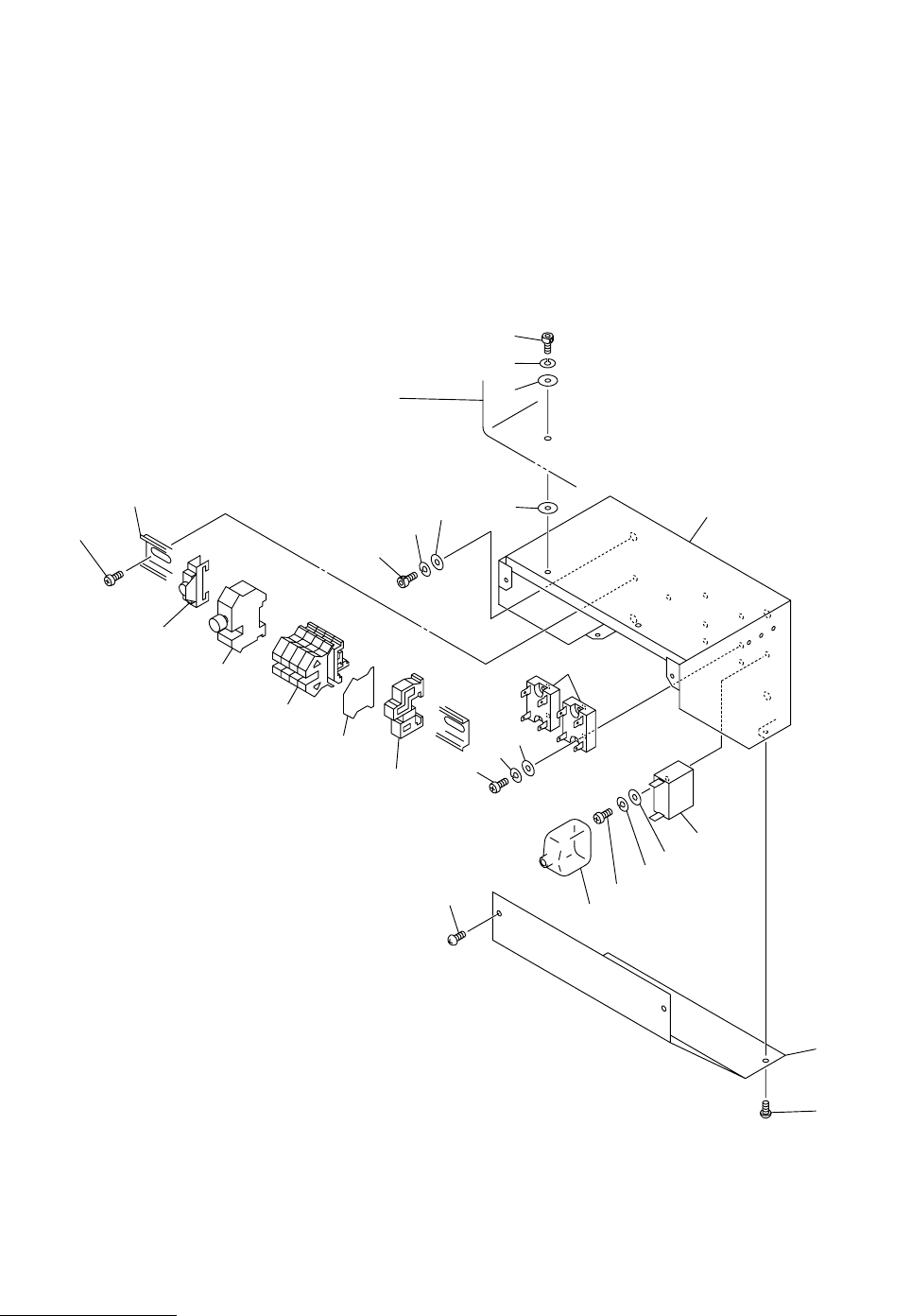

Fig. 8-15 L コンベア部 L Conveyor Section
26-1
29
42
1
13
12
11
14
8
9
34
33
30
32
31
30
35
23
22
21
24
42
41
28
27
26
10
10-1
.
See Fig.4-1
Key No.2
Fig.8-15
TDM-3000E-2
143
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
8-15
1 630 063 2354 BRACKET 1 645G--04B-026
9 411 051 2804 SCR TRS 4X8 2 M4X8 TRS
10 630 083 5496 FUSE HOLDER 1 645FD-04D-009
10 -1 423 025 1904 FUSE 250V 1.6A 1 F107 645FD-04D-008
11 630 049 3801 TERMINAL 4 645FD-04D-006
12 630 049 3733 ACCESSORY,WIRING 1 645FD-04D-003
13 630 049 3672 BRACKET,WIRING 1 645FD-04D-005
14 630 000 1051 BRACKET,WIRING 1
21 630 099 1345 RELAY 2 SSR1,SSR2 645FD-04D-001
22 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
23 411 008 1706 WASHER SPR 4 4 SW4 F
24 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
27 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
28 411 008 1706 WASHER SPR 4 1 SW4 F
29 411 113 1400 SCR PAN 4X6 1 M4X6 PAN
30 630 001 0237 WASHER 4 645G--04H-025
31 411 141 3001 WASHER SPR 6 2 SW6
32 630 000 7886 BOLT,HEX-SCT 2 M6X16
33 630 001 0220 WASHER 4 645G--04H-027
34 411 141 6705 WASHER SPR 5 4 SW5
35 630 000 7770 BOLT,HEX-SCT 4 M5X20
41 630 059 2375 COVER(L) 1 645G--04B-024
42 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
