P-0222-001.pdf - 第73页
71 Key No. P AR T No. P A R T NAME Q’ty REMARKS NOTE MODEL TDM-3000E-2 0208-001 4-3 1 630 028 9493 GEAR 2 645G--04H-006 2 630 000 8951 SET SCREW 4 M5X8 SET 3 630 053 4122 SHAFT 1 645G--04B-009 4 630 028 9480 GEAR 2 645G-…
MODEL TDM-3000E-2
0208-001
70
L コンベア部 L CONVEYOR SECTION

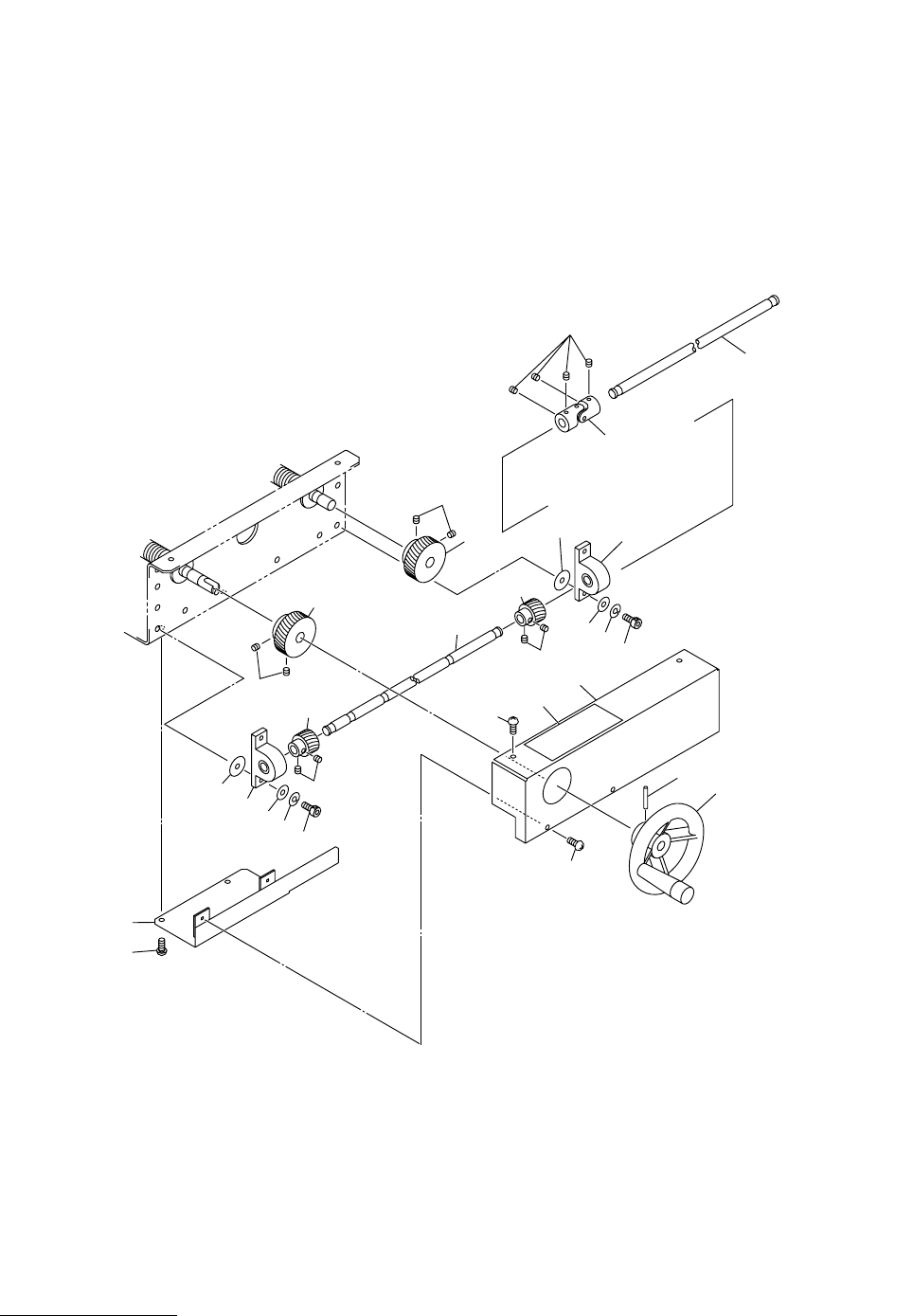

Fig. 4-3 ドライブシャフト Driving Shaft
7
8
9
7
8
9
5
4
3
6
6
6-1
12
11
10
6-1
5
4
Fig.4-3
TDM-3000E-2
22
2
2
1
1
14
50
13
22
21
16
15
71
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
4-3
1 630 028 9493 GEAR 2 645G--04H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 053 4122 SHAFT 1 645G--04B-009
4 630 028 9480 GEAR 2 645G--04H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 2 645G--04H-005
6 -1 630 042 2115 WASHER 4 645G--04H-014
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7770 BOLT,HEX-SCT 4 M5X20
10 630 053 4177 SHAFT(JOINT) 1 645G--04B-017
11 630 008 1268 COUPLING 1 645G--04H-008
12 630 000 8944 SET SCREW 4 M5X6 SET
13 630 063 2958 COVER 1 645G--04B-018
14 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
15 630 053 0766 HANDLE 1 645G--04B-020
16 630 001 0343 SPRING PIN 1 645G--04H-032
21 630 063 2996 COVER 1 645G--04B-034
22 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
50 630 082 6142 NAME PLATE,PARTS 1 645G--04B-037
MODEL TDM-3000E-2
0208-001
72
L コンベア部 L CONVEYOR SECTION

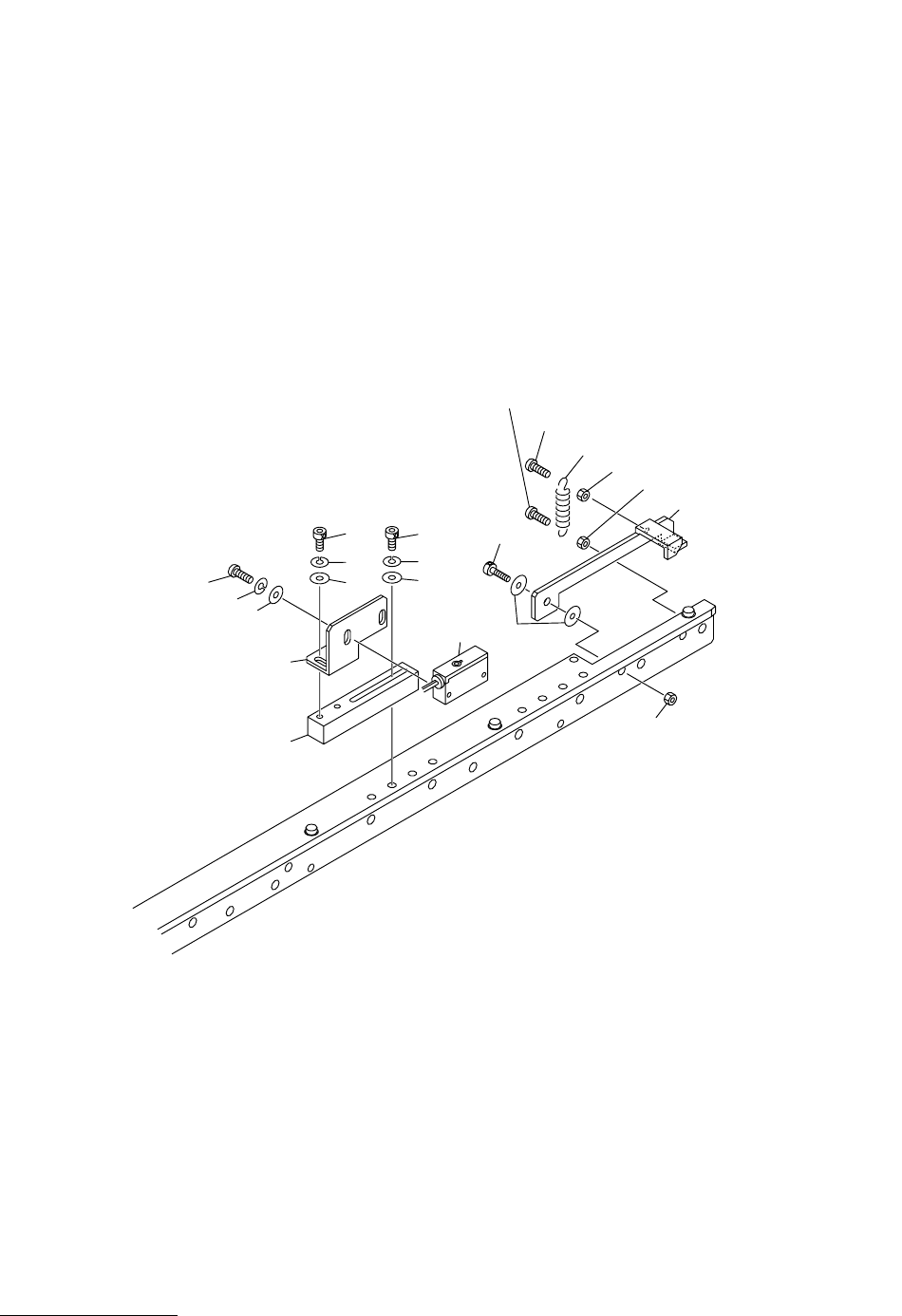

Fig. 4-4 基板検出部, 基板ストッパ P.C.B. Detector, P.C.B. Stopper
1
8
7
6
9-3
9-2
9-1
2
16
12
14
13
18
19
15
17
11
3
4
5
1-1
Fig.4-4
TDM-3000E-2
