電気制御部 ELECTRICAL SECTION

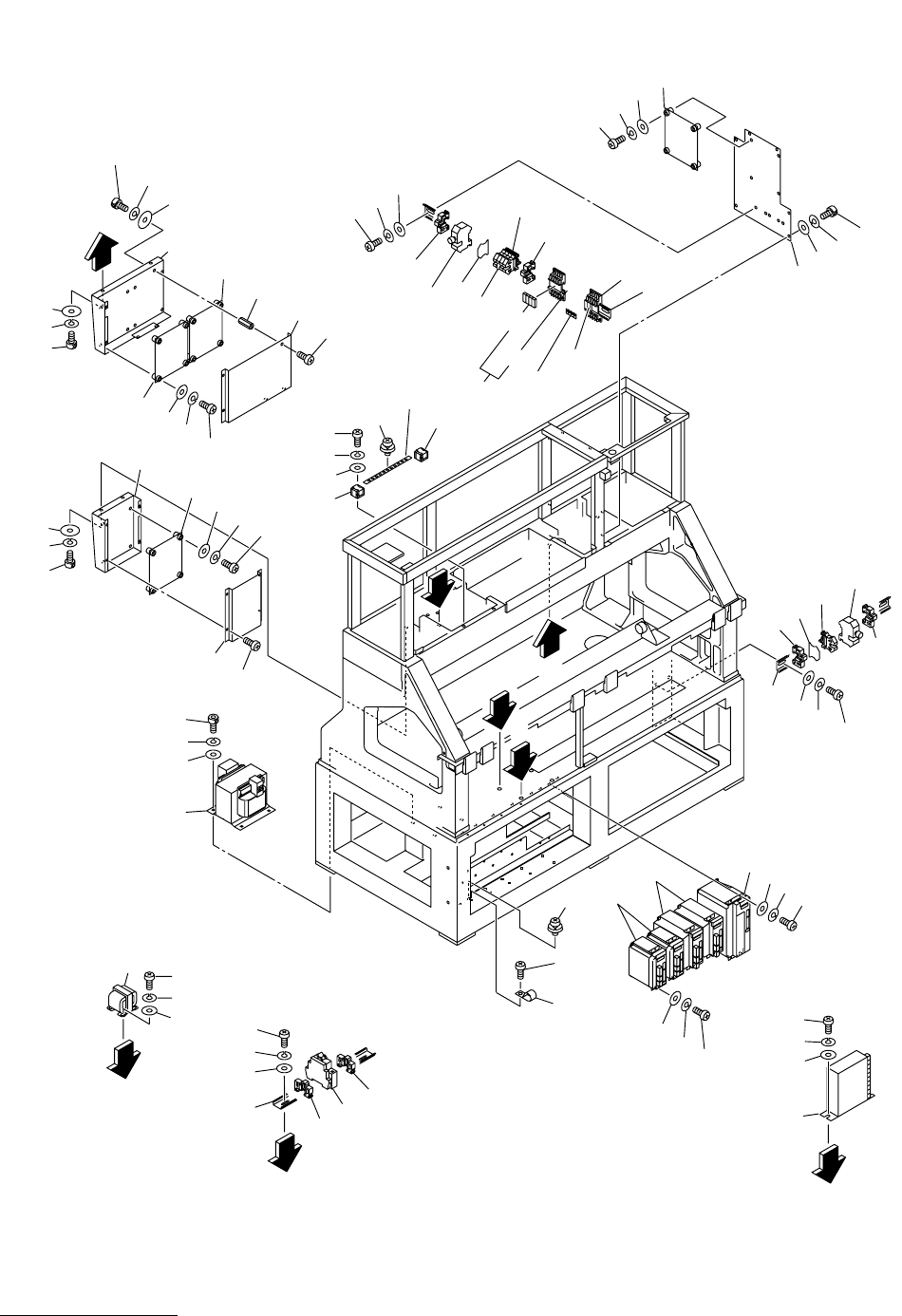

Fig. 8-11 機械廻り Miscellaneous Parts
1
2
3
4
81
B
A
82
83
84
86
86
Fig.8-11
51
52
53
54
58
57
56
55
45
49
50
41
50-1
50-2
50-3
A
42
43
44
45
46
47
48
35
31
32
33
34
39
40
36
37
38
114
113
112
111
116
115
111
67
66
65
73
73
74-2
74
74-1
75-2
75-3
.
68
68-1
.
71
69
72
70
.
85
87
85-1
49-1
C
D
21
22
23
24
B
79
78
77
76
C
TDM-3000E-2
88
64
75-1
5
6
7
8
18
19
20
16
17
107
106
108
D
30
25
26
27
28
30
29
133
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
8-11
1 630 105 2564 TRANSFORMER,POWER 1 T1 645BC-04D-003
2 630 001 0237 WASHER 4 BW6
3 411 141 3001 WASHER SPR 6 4 SW6
4 630 000 7879 BOLT,HEX-SCT 4 M6X12
5 630 091 1558 UNIT,DRIVER 1 SMD1(X) 645BC-04D-009
6 411 088 1702 WASHER V 5X10X1 4 FW5 F
7 411 008 2109 WASHER SPR 5 4 SW5 F
8 411 043 6803 SCR PAN 5X12 4 M5X12 PAN
16 630 091 1565 UNIT,DRIVER 2 SMD2(Y),SMD3(SZ) 645BC-04D-010
17 630 097 9848 UNIT,DRIVER 2 SMD4(HZ),SMD5(THETA)
645BC-04D-008
18 411 088 1702 WASHER V 5X10X1 8 FW5 F
19 411 008 2109 WASHER SPR 5 8 SW5 F
20 411 043 6803 SCR PAN 5X12 8 M5X12 PAN
21 630 053 2654 UNIT,DRIVER 1 PMD1(TR) 645BC-04D-011
22 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
23 411 008 1706 WASHER SPR 4 2 SW4 F
24 411 003 0001 SCR PAN 4X12 2 M4X12 PAN
26 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
27 411 008 1706 WASHER SPR 4 2 SW4 F
28 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
29 630 088 9505 CIRCUIT PROTECTOR 1 CB102 645BC-04D-013
30 630 000 1051 BRACKET,WIRING 2 645BC-04D-040
31 630 060 5204 BRACKET 1 645H--04V-002
32 630 001 0220 WASHER 2 BW5
33 411 141 6705 WASHER SPR 5 2 SW5
34 630 000 7756 BOLT,HEX-SCT 2 M5X12
35 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 645FB-04U-001
36 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
37 411 086 4408 WASHER SPR 3 4 SW3 F
38 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
39 630 060 5228 COVER 1 645H--04V-007
40 411 051 2804 SCR TRS 4X8 4 M4X8 TRS
41 630 061 4350 BRACKET 1 645H--04V-001
42 630 001 0220 WASHER 2 BW5
43 411 141 6705 WASHER SPR 5 2 SW5
44 630 000 7756 BOLT,HEX-SCT 2 M5X12
45 630 096 2536 P.C.B,MOUNT(MEKAHAI) 2 645FB-04U-001
46 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
47 411 086 4408 WASHER SPR 3 8 SW3 F
48 411 162 1604 SCR PAN 3X20 8 M3X20 PAN
49 630 060 5211 COVER 1 645H--04V-006
49 -1 630 060 5235 STAY 1 645H--04V-010
50 411 051 2804 SCR TRS 4X8 5 M4X8 TRS
50 -1 411 141 4107 WASHER V 5X10X1 1 FW5
50 -2 411 141 6705 WASHER SPR 5 1 SW5
50 -3 630 000 7749 BOLT,HEX-SCT 1 M5X10
51 630 099 0690 BRACKET 1 645H--04V-003
52 411 141 4107 WASHER V 5X10X1 6 FW5
53 411 141 6705 WASHER SPR 5 6 SW5
MODEL TDM-3000E-2
0210-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
134
8-11
54 630 000 7749 BOLT,HEX-SCT 6 M5X10
55 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 645T--04U-001
56 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
57 411 086 4408 WASHER SPR 3 4 SW3 F
58 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
65 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
66 411 008 1706 WASHER SPR 4 2 SW4 F
67 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
68 630 099 1352 FUSE HOLDER 1 645DB-04D-011
68 423 026 0609 FUSE 250V 0.5A 1 F150 645DB-04D-009
69 630 049 3801 TERMINAL 5 645DB-04D-024
70 630 049 3733 ACCESSORY,WIRING 1 645DB-04D-023
72 630 049 3702 ACCESSORY,WIRING 1 645DB-04D-021
73 630 049 3672 BRACKET,WIRING 2 645DB-04D-022
74 630 061 0987 RELAY 1 645H--04D-031
74 -1 630 061 0994 SOCKET 1 645H--04D-034
74 -2 630 051 2304 RELAY 4 CR21,38,27,28 645H--04D-033
75 -1 630 061 0994 SOCKET 1 645H--04D-034
75 -2 630 051 2304 RELAY 2 CR39,29 645H--04D-033
75 -3 630 061 1427 ACCESSORY,WIRING 1 645H--04D-032
76 630 057 2094 TRANSFORMER,POWER 1 T2 645H--04D-005
77 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
78 411 008 1706 WASHER SPR 4 2 SW4 F
79 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
82 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
83 411 008 1706 WASHER SPR 4 2 SW4 F
84 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
85 630 099 1352 FUSE HOLDER 1 645FB-04D-036
85 -1 423 022 8005 FUSE 250V 1A 1 F113 645FB-04D-037
86 630 049 3672 BRACKET,WIRING 2 645FB-04D-055
87 630 049 3801 TERMINAL 1 645FB-04D-054
88 630 049 3733 ACCESSORY,WIRING 1 645FB-04D-056
106 411 036 8609 SCR PAN+SW+W 5X12 5
107 630 117 2057 WIRE PARTS 5 645FB-04D-080
108 411 042 3001 SCR PAN 4X10 5 M4X10 PAN
111 630 051 5763 WIRE PARTS 2 645FB-04D-016
112 411 088 1702 WASHER V 5X10X1 2 FW5 F
113 411 008 2109 WASHER SPR 5 2 SW5 F
114 411 140 6409 SCR PAN 5X16 2 M5X16 PAN
116 411 036 8609 SCR PAN+SW+W 5X12 6
