MODEL TDM-3000E-2 0208-001 80 R コンベア部 R CONVEYOR SECTION Fig. 5-2 コンベア駆動部 Conveyor Driver Fig.5-2 TDM-3000E-2 See Fig.5-1 Key No.2 6 5 4 9 1 2 3 7 8 8 13 14 15 10 11 12 7
MEMO
MODEL TDM-3000E-2
0208-001
80
R コンベア部 R CONVEYOR SECTION

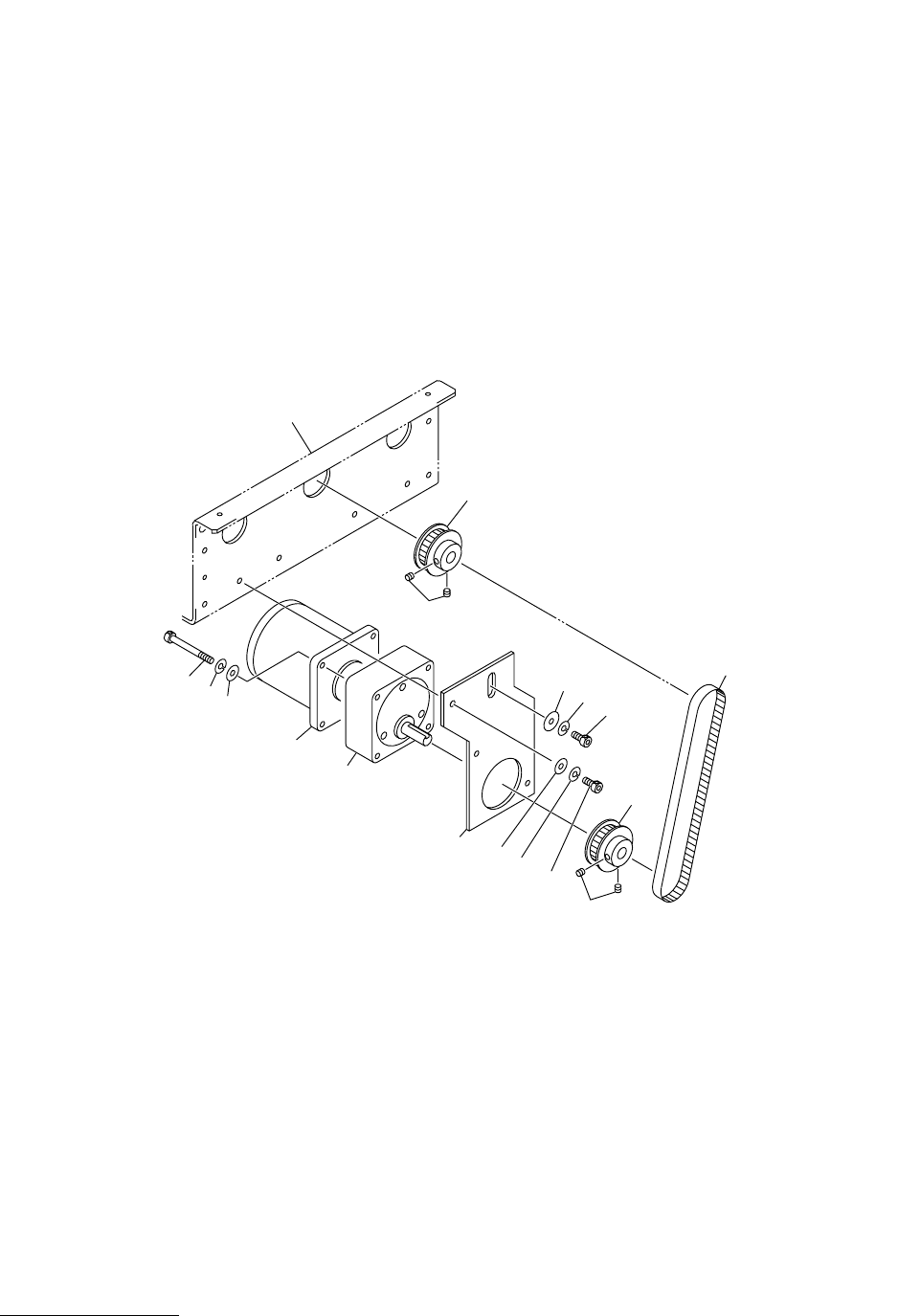

Fig. 5-2 コンベア駆動部 Conveyor Driver
Fig.5-2
TDM-3000E-2
See Fig.5-1
Key No.2
6
5
4
9
1
2
3
7
8
8
13
14
15
10
11
12
7
81
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
5-2
1 630 053 5396 BRACKET(MOTOR) 1 645H--04B-010
2 630 003 2574 GEAR,REDUCTION 1 645H--04H-016
3 630 049 0831 MOTOR,REVERSIBLE 1 M2,3RK15GN-AUL 100V
645H--04H-015
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7824 BOLT,HEX-SCT 2 M5X45
7 630 009 2684 PULLEY,TIMING 2 645H--04H-017
8 630 000 8944 SET SCREW 4 M5X6 SET
9 630 053 4351 BELT,TIMING 1 645H--04H-018
10 411 141 4107 WASHER V 5X10X1 1 FW5
11 411 141 6705 WASHER SPR 5 1 SW5
12 630 000 7749 BOLT,HEX-SCT 1 M5X10
13 630 001 0220 WASHER 1 645H--04H-027
14 411 141 6705 WASHER SPR 5 1 SW5
15 630 000 7756 BOLT,HEX-SCT 1 M5X12
