145 Key No. P AR T No. P A R T NAME Q’ty REMARKS NOTE MODEL TDM-3000E-2 0208-001 8-16 1 630 063 2361 BRACKET 1 645H--04B-026 9 4 1 1 0 5 1 2 8 04 SCR TRS 4X8 2 M4X8 TRS 1 0 630 083 5496 FUSE HOLDER 1 645FD-04D-009 10 -1 …
MODEL TDM-3000E-2
0208-001
144
電気制御部 ELECTRICAL SECTION

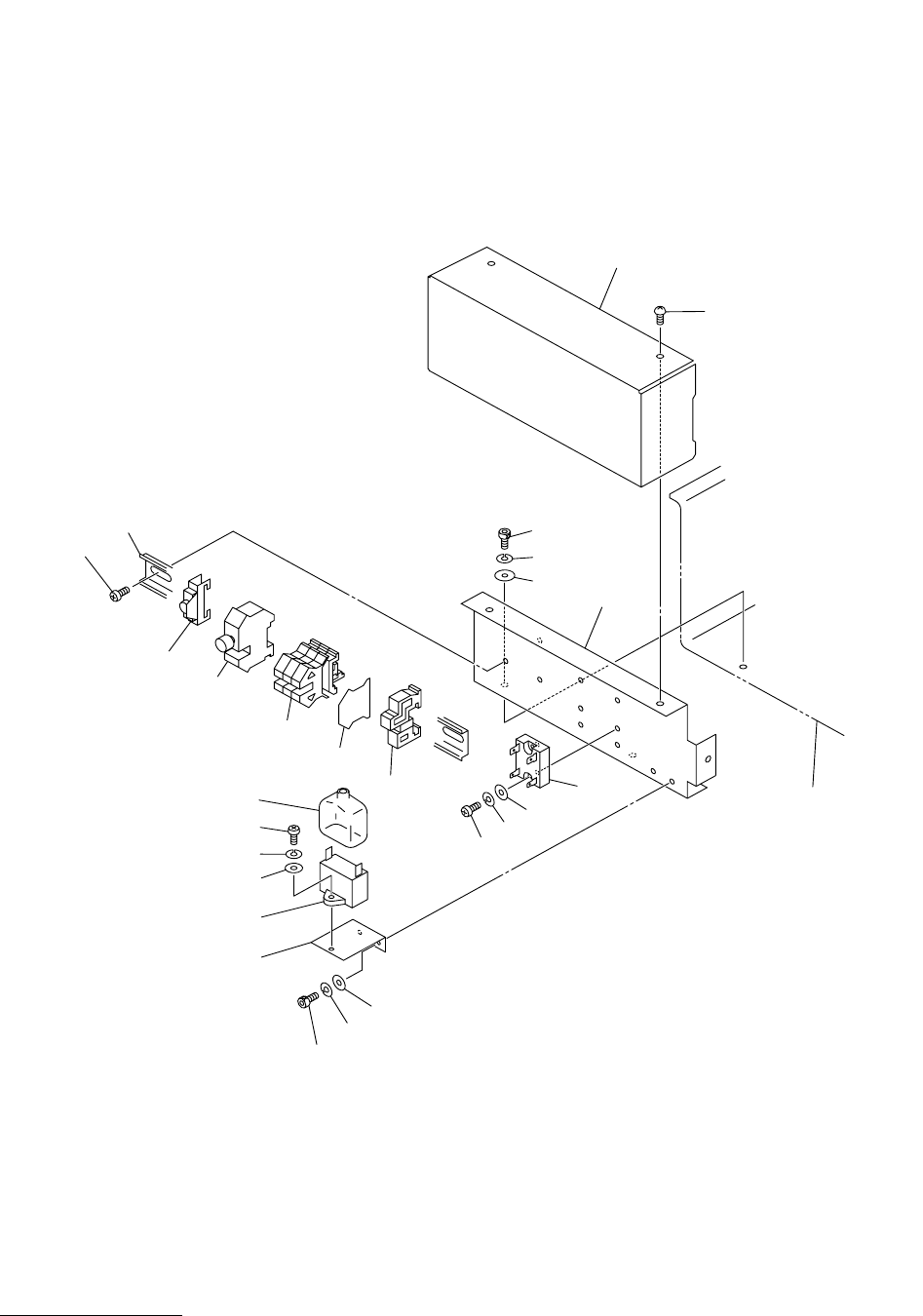

Fig. 8-16 R コンベア部 R Conveyor Section
9
8
41
1
42
29
28
27
26-1
14
11
12
13
34
33
35
26
25
23
22
21
24
25-2
25-1
25-3
10
10-1
.
See Fig.5-1
Key No.2
Fig.8-16
TDM-3000E-2
145
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
8-16
1 630 063 2361 BRACKET 1 645H--04B-026
9 411 051 2804 SCR TRS 4X8 2 M4X8 TRS
10 630 083 5496 FUSE HOLDER 1 645FD-04D-009
10 -1 423 025 1904 FUSE 250V 1.6A 1 F109 645FD-04D-008
11 630 049 3801 TERMINAL 3 645FD-04D-006
12 630 049 3733 ACCESSORY,WIRING 1 645FD-04D-003
13 630 049 3672 BRACKET,WIRING 1 645FD-04D-005
14 630 000 1051 BRACKET,WIRING 1
21 630 099 1345 RELAY 1 SSR3 645FD-04D-001
22 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
23 411 008 1706 WASHER SPR 4 2 SW4 F
24 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
25 630 063 3016 BRACKET 1 645H--04B-036
25 -1 411 141 4008 WASHER V 4X9X0.8 2 FW4
25 -2 411 141 2905 WASHER SPR 4 2 SW4
25 -3 630 000 7626 BOLT,HEX-SCT 2 M4X10
27 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
28 411 008 1706 WASHER SPR 4 1 SW4 F
29 411 113 1400 SCR PAN 4X6 1 M4X6 PAN
33 411 141 4107 WASHER V 5X10X1 2 FW5
34 411 141 6705 WASHER SPR 5 2 SW5
35 630 000 7749 BOLT,HEX-SCT 2 M5X10
41 630 063 3009 COVER 1 645H--04B-035
42 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
MODEL TDM-3000E-2
0210-001
146
35
35
13
8
9
10
14
15
1
31
30
32
33
31
30
32
33
31
30
32
33
31
30
32
33
13
7
7
14
15
33
32
31
30-1
13
14
15
19
20
21
4
3
2
8
6
9
10
10
9
8
16
17
18
21
20
19
41
42
43
44
45
45
44
43
42
41
12
31
30-1
32
33
A
B
A
B
Fig.9-1
TDM-3000E-2
カバー部 COVER SECTION
Fig. 9-1 手すり Handrail
