MEMO
MODEL TDM-3000E-2
0208-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
96
50 411 141 0901 NUT HEX 8 2 M8
51 630 000 7855 BOLT,HEX-SCT 2 M6X8
52 411 141 0703 NUT HEX 6 1 M6
53 630 000 7923 BOLT,HEX-SCT 1 M6X35
54 411 141 0703 NUT HEX 6 4 M6
55 630 042 2122 HOOK 4 645F--04H-031
57 630 003 0310 SPRING,TENSION 1 645F--04H-016
58 630 003 0587 SPRING,TENSION 1 645F--04H-014
59 630 053 8762 BELT,TIMING 1 645F--04H-009
60 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
61 411 141 3001 WASHER SPR 6 4 SW6
62 630 000 7893 BOLT,HEX-SCT 4 M6X20
63 411 004 5104 NUT HEX 6 1 M6 F
64 630 044 4469 BOLT,HEX 1 645F--04H-029
65 630 048 8807 PLATE(SHADE A) 1 645F--04B-016
66 411 141 4008 WASHER V 4X9X0.8 2 FW4
67 411 141 2905 WASHER SPR 4 2 SW4
68 630 000 7619 BOLT,HEX-SCT 2 M4X8
69 630 000 0252 SENSOR,PHOTO 1 PHS4 645F--04H-005
70 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 645F--04H-025
71 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
72 411 086 4408 WASHER SPR 3 2 SW3 F
73 411 113 0502 SCR PAN 3X14 2 M3X14 PAN
6-3
MEMO
MODEL TDM-3000E-2
0208-001
98
トランスファ部 TRANSFER SECTION

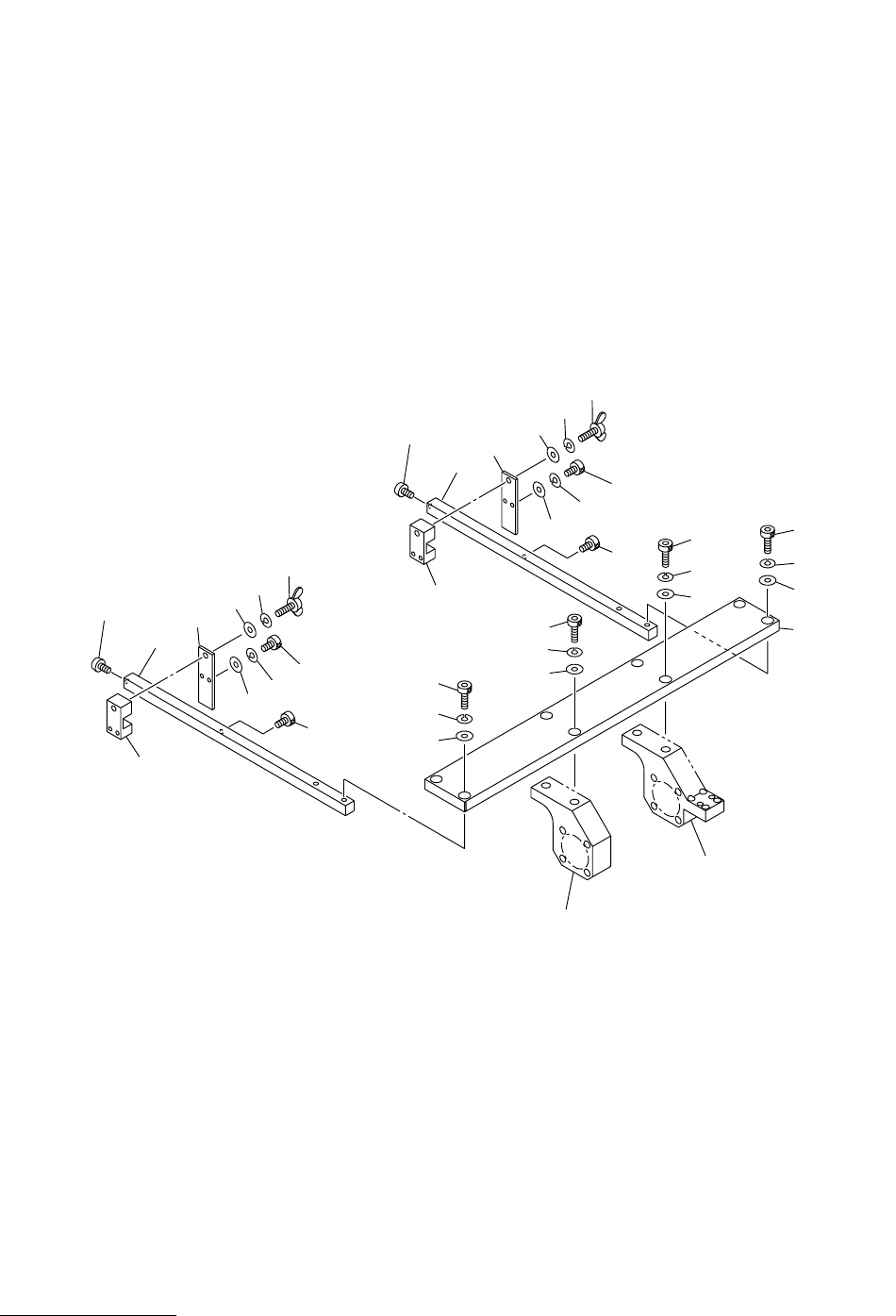

Fig. 6-4 送り竿 Transfer Rod
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
See Fig.6-1
Key No.6
See Fig.6-1
Key No.6-1
16
16
Fig.6-4
TDM-3000E-2
