MEMO
MODEL TDM-3000E-2
0208-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
30
57 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
58 411 141 3001 WASHER SPR 6 3 SW6
59 630 000 7909 BOLT,HEX-SCT 3 M6X25
60 630 055 3253 SEAL 3 645K--04H-048
61 630 060 3101 CAP 3 645K--04B-052
62 630 055 3338 SEAL 3 645K--04H-047
63 630 055 3345 BUSH,BEARING 3 645K--04H-046
66 630 054 8457 CAP 3 645K--04B-051
67 630 003 3908 SEAL 3 645K--04H-050
68 630 003 3434 SEAL 3 645K--04H-049
69 630 004 1194 MECH PARTS(SYRINGE) 3 645S--04H-001
70 630 063 4136 MECH PARTS 3 645S--04B-001
75 630 063 3962 NAME PLATE,INDEX 3 645M--04D-017
2-5
MEMO
MODEL TDM-3000E-2
0208-001
32

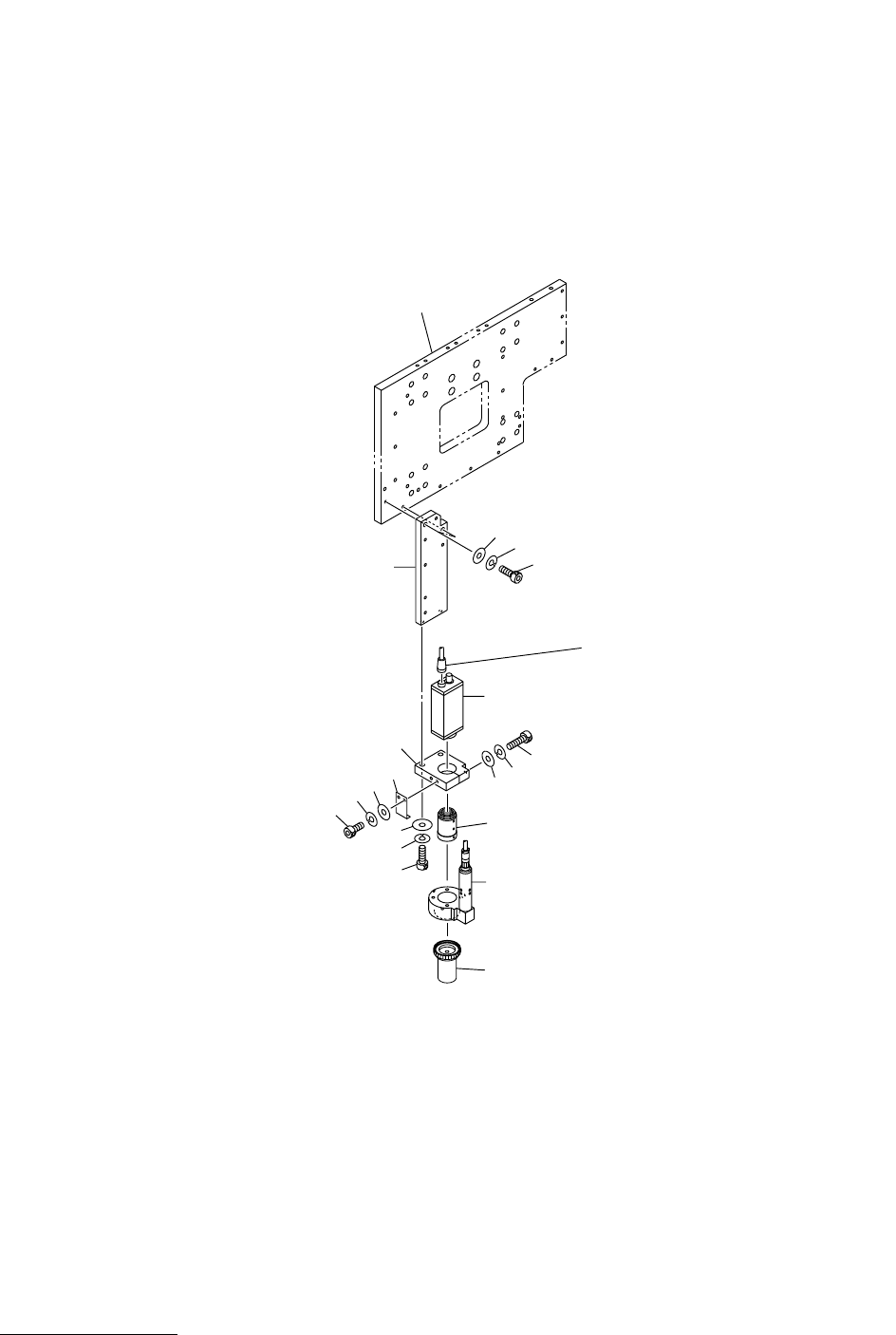

ヘッド部 HEAD SECTION
Fig. 2-6 認識カメラ Recognition Camera
2
1
3
4
See Fig.2-1
Key No.51
See Fig.8-8
Key No.57
13
17
15 15-1
20
21
10
11
12
22
23
9
18
19
16
14
Fig.2-6
