MEMO
MODEL TDM-3000E-2
0208-001
118
電気制御部 ELECTRICAL SECTION

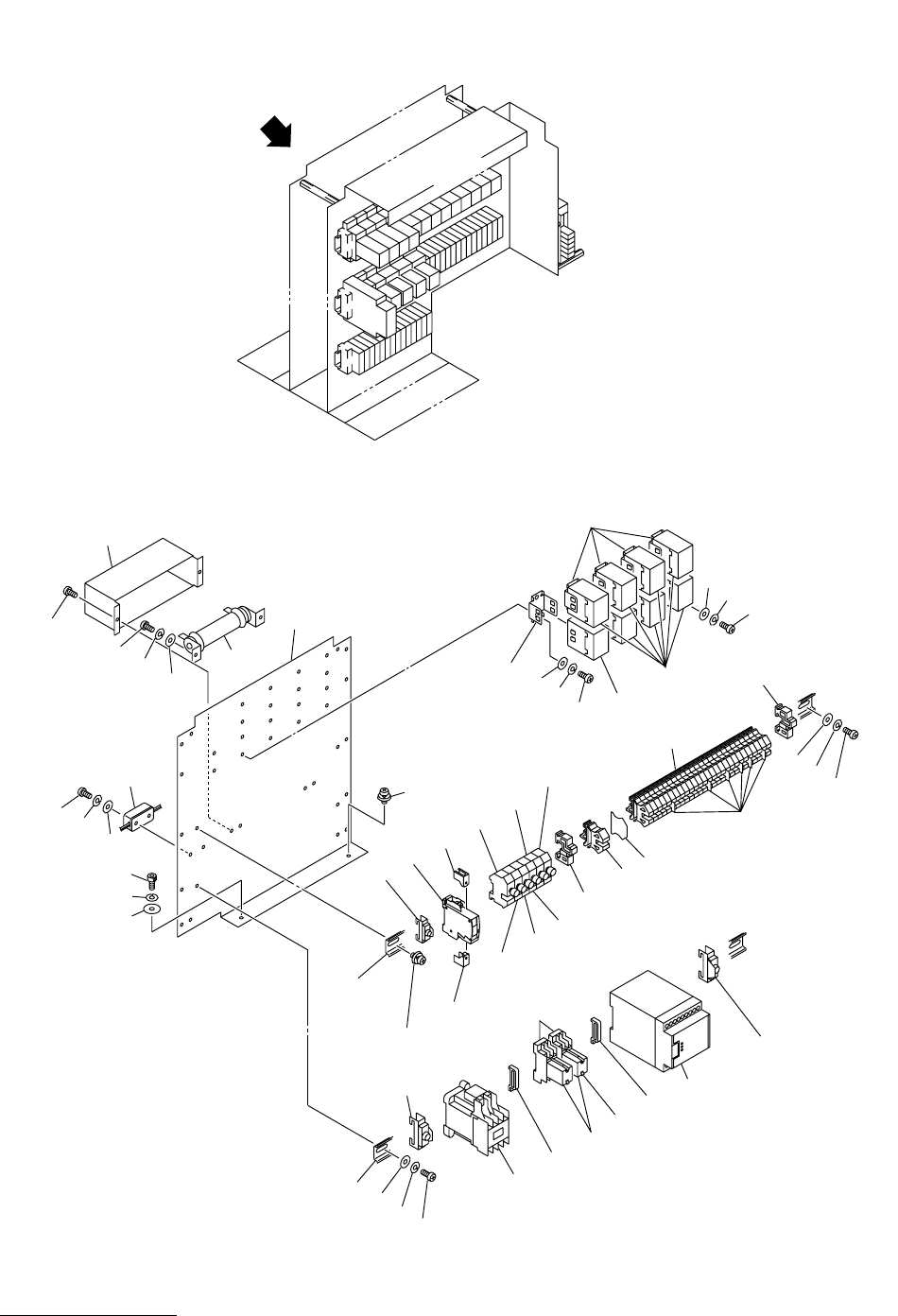

Fig. 8-5 リレーシーケンス部２ Relay Sequence Section-2
79
79-1
.
91
93
.
65
61
83
81-1
83-1
.
84
84-1
85-1
.
87
87-1
.
85
108
107
106
110
101
104
103
102
105
98
97
96
74-1
60
67
68
69
62
63
64
70
66
88
81
88
100
92
94
95
78
80-1
77
76
75
80-1
80
71
72
73
74
80
71
109
.
A
VIEW A
Fig.8-5
86
86-1
.
82
82-1
81-1
98-1
.
TDM-3000E-2
72
73
74
119
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
8-5
60 630 099 0577 BRACKET 1 645BD-04V-002
61 630 049 2422 BRACKET,WIRING 7 645BD-04D-002
62 411 119 2104 WASHER V 4X9X0.8 14 FW4 F
63 411 008 1706 WASHER SPR 4 14 SW4 F
64 411 042 3001 SCR PAN 4X10 14 M4X10 PAN
65 630 049 2439 RELAY 7 CR1,5,12,13,32,34,33
645BD-04D-001
66 630 053 8625 BRACKET,WIRING 1 645BD-04D-022
67 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
68 411 008 1706 WASHER SPR 4 2 SW4 F
69 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
70 630 053 8557 RELAY 1 CR10 645BD-04D-021
72 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
73 411 008 1706 WASHER SPR 4 3 SW4 F
74 411 042 3001 SCR PAN 4X10 3 M4X10 PAN
74 -1 411 114 7807 SCR PAN+SW+W 4X10 1
75 630 094 4716 RELAY 1 CR30 645BD-04D-020
76 630 045 4260 SOCKET 2 645BD-04D-006
77 630 000 1020 BRACKET,WIRING 2 645BD-04D-024
78 630 049 2125 RELAY 2 CR23,20 645BD-04D-005
79 630 053 8588 EM-CONTACTOR 1 MC10 645BD-04D-027
79 -1 407 178 3800 VARISTOR SZ-Z2 1 645BD-04D-028
80 630 000 1051 BRACKET,WIRING 2 645BD-04D-030
80 -1 630 000 1273 ACCESSORY,WIRING 2 645BD-04D-029
81 630 093 7978 CIRCUIT PROTECTOR 1 CB110 645BC-04D-068
81 -1 630 071 3343 COVER 2 645BC-04D-069
82 630 083 5496 FUSE HOLDER 1 645H--04D-016
82 -1 423 022 8104 FUSE 250V 2A 1 F103 645H--04D-024
83 630 083 5496 FUSE HOLDER 1 645H--04D-016
83 -1 423 022 8104 FUSE 250V 2A 1 F112 645H--04D-024
84 630 083 5496 FUSE HOLDER 1 645H--04D-016
84 -1 423 025 1904 FUSE 250V 1.6A 1 F105 645H--04D-014
85 630 083 5496 FUSE HOLDER 1 645H--04D-016
85 -1 423 025 1904 FUSE 250V 1.6A 1 F104 645H--04D-013
86 630 083 5496 FUSE HOLDER 1 645H--04D-016
86 -1 423 025 2208 FUSE 250V 0.8A 1 F102 645H--04D-015
87 630 099 1352 FUSE HOLDER 1 645H--04D-037
87 -1 423 022 8005 FUSE 250V 1A 1 F152 645H--04D-036
88 630 000 1051 BRACKET,WIRING 1 645BD-04D-030
91 630 049 3801 TERMINAL 27 645BD-04D-012
92 630 049 3733 ACCESSORY,WIRING 1 645BD-04D-017
94 630 049 3702 ACCESSORY,WIRING 6 645BD-04D-015
95 630 049 3733 ACCESSORY,WIRING 2 645BD-04D-011
96 411 141 4107 WASHER V 5X10X1 1 FW5
97 411 141 6705 WASHER SPR 5 1 SW5
98 630 000 7749 BOLT,HEX-SCT 1 M5X10
98 -1 411 036 8609 SCR PAN+SW+W 5X12 1
100 630 053 7376 TERMINAL 1 645BC-04D-019
101 630 054 5357 UNIT,POWER 1 PSU9,LPDE-1H01 645H--04D-022
102 411 119 2104 WASHER V 4X9X0.8 2 FW3 F
