149 Key No. P AR T No. P A R T NAME Q’ty REMARKS NOTE MODEL TDM-3000E-2 0208-001 9-2 1 630 058 3168 COVER 1 645R--04B-029 2 630 058 3137 COVER 1 645R--04B-032 3 630 058 3151 COVER 1 645R--04B-030 4 630 058 3144 COVER 1 6…
MODEL TDM-3000E-2
0210-001
148
1
9
12
12
11
10
9
8-1
8
9
6
3
7
2
4
7
5
Fig.9-2
TDM-3000E-2
カバー部 COVER SECTION
Fig. 9-2 本体カバー Body Cover
149
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
9-2
1 630 058 3168 COVER 1 645R--04B-029
2 630 058 3137 COVER 1 645R--04B-032
3 630 058 3151 COVER 1 645R--04B-030
4 630 058 3144 COVER 1 645R--04B-031
5 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
6 630 061 5647 COVER 1 645R--04B-034
7 630 061 5654 COVER 2 645R--04B-035
8 630 062 7251 COVER 1 645R--04B-033
8 -1 630 060 6423 COVER 1 645R--04B-046
9 411 113 9109 SCR TRS 5X10 27 M5X10 TRS
10 630 059 5765 COVER 1 645R--04B-043
11 630 061 7160 COVER 1 645R--04B-044
12 411 113 9109 SCR TRS 5X10 15 M5X10 TRS
MODEL TDM-3000E-2
0210-001
150
57
58
57
58
58-1
58-1
DETAIL "A"
71
72
73
90
74
90
90
Fig.9-3
32
32-1
35
34
33
31
56
56
1
2
55
55-2
55-1
55-3
55-4
56
5
6
7
27
20
24
25
26
28
29
30
10
11
12
83
84
82
81
85
8
21
22
23
4
17
16
9
18
19
13
14
15
54
56
37
38
36
3
53
56
51
52
40
43
42
41
39
TDM-3000E-2
DETAIL "B"
81
85
83
84
82
A
B
カバー部 COVER SECTION

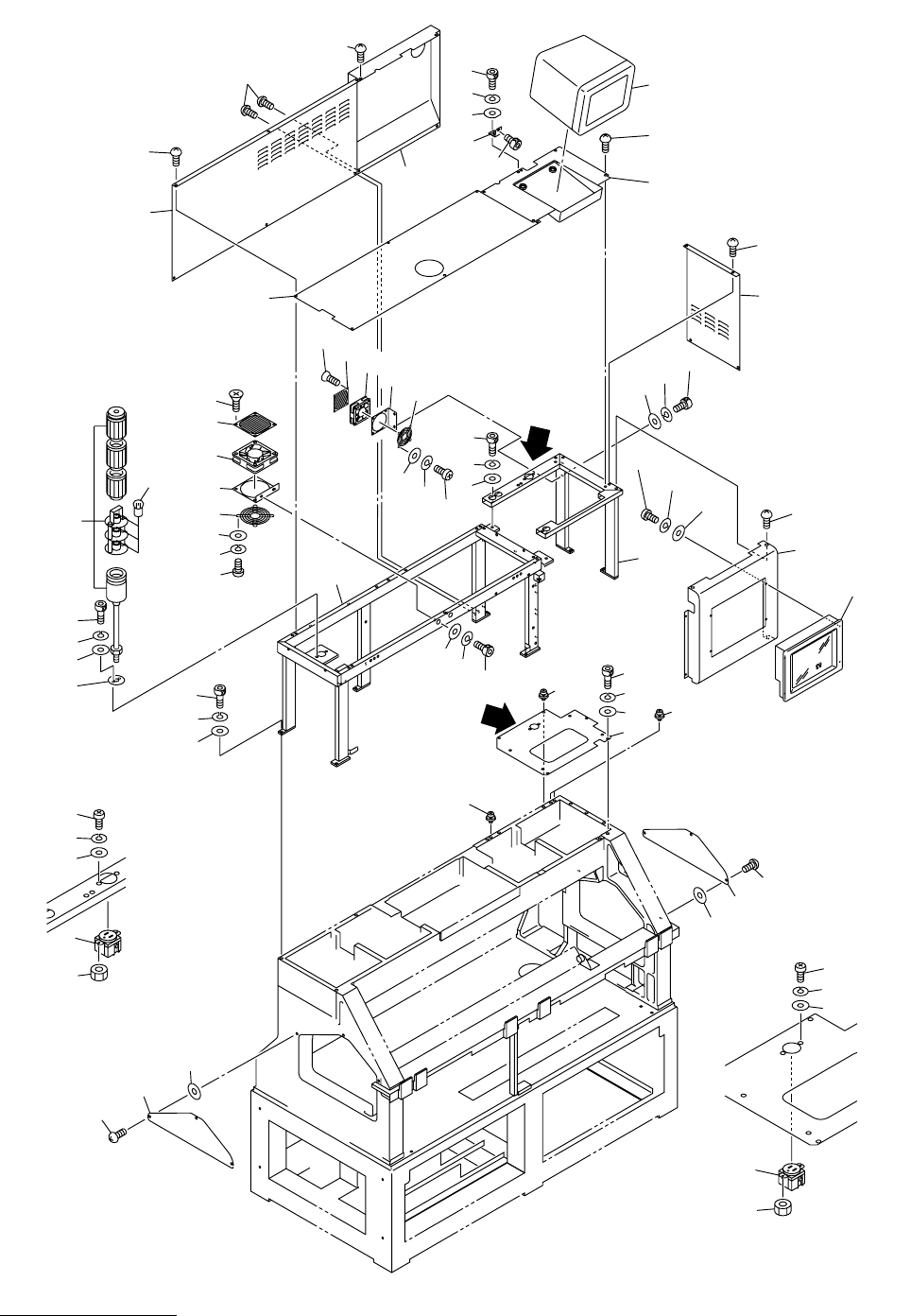

Fig. 9-3 上部カバー Upper Cover
