107 Key No. P AR T No. P A R T NAME Q’ty REMARKS NOTE MODEL TDM-3000E-2 0210-001 8-1 1 630 099 0492 B O X 1 645BC-04V-005 2 630 099 0508 COVER 1 645BC-04V-006 3 630 001 0220 WASHER 1 BW 5 4 4 1 1 1 41 67 05 WASHER SPR 5 …
MODEL TDM-3000E-2
0210-001
106
電気制御部 ELECTRICAL SECTION

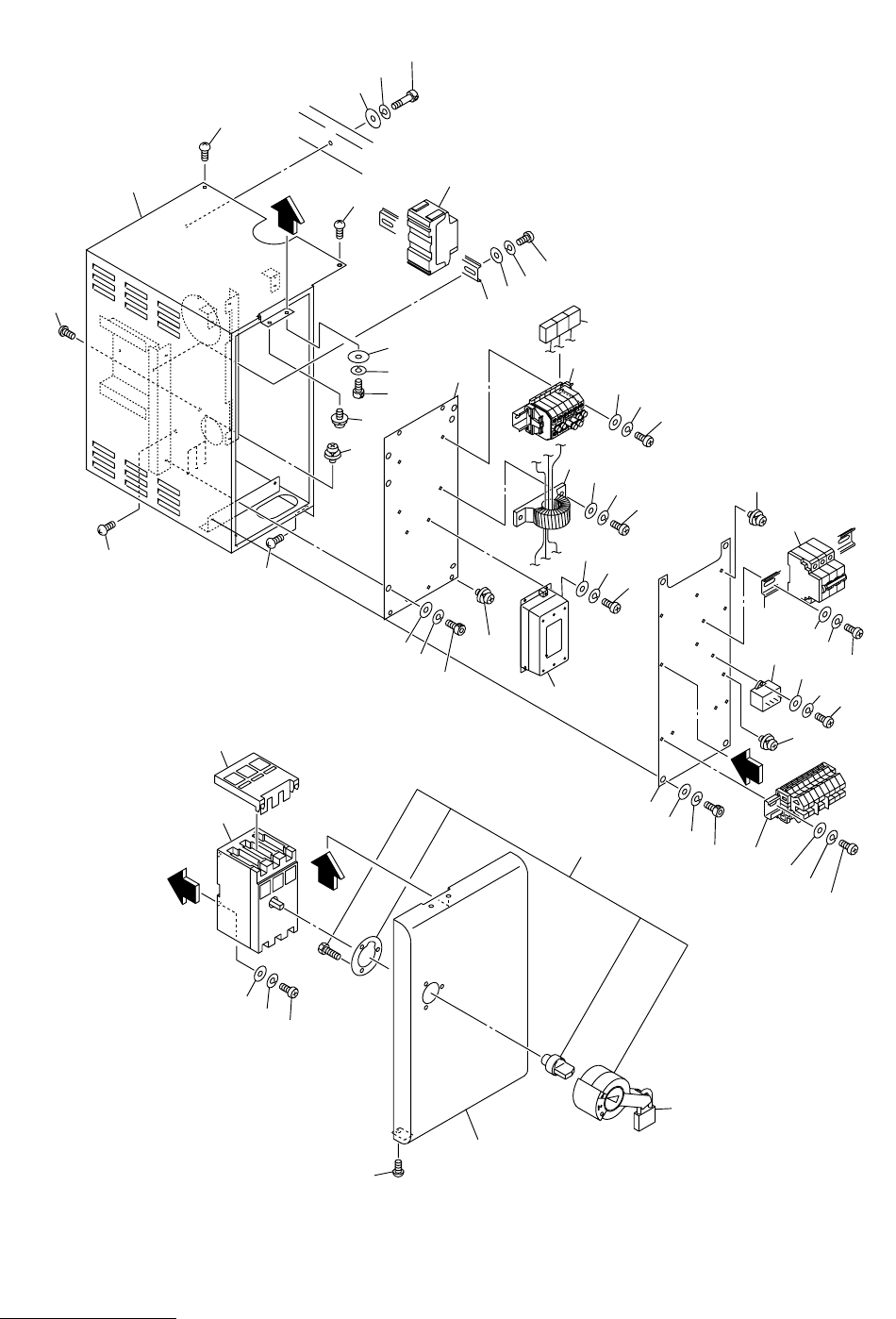

Fig. 8-1 ブレーカボックス Breaker Box
Fig.8-1
10
11
15-1
85
85
85
13
12
14
15
31
82
83
84
85
1
2
3
4
5
5-1
6
7
8
9
A
A
B
B
32
33
34
41
42
37
36
38
39
40
86
65
66
67
68
71
72
73
74
75
51
55
75
52
53
54
85
TDM-3000E-2
97
96
98
99
92
91
95
93
94
16
17
18
19
107
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0210-001
8-1
1 630 099 0492 BOX 1 645BC-04V-005
2 630 099 0508 COVER 1 645BC-04V-006
3 630 001 0220 WASHER 1 BW5
4 411 141 6705 WASHER SPR 5 1 SW5
5 630 000 7756 BOLT,HEX-SCT 1 M5X12
5 -1 411 036 8609 SCR PAN+SW+W 5X12 1
7 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
8 411 008 1706 WASHER SPR 4 2 SW4 F
9 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
10 630 099 3233 CIRCUIT PROTECTOR 1 CB201 645BC-04D-026
11 411 114 7807 SCR PAN+SW+W 4X10 3
12 630 117 2101 PLATE 1 645BC-04V-008
13 411 141 4107 WASHER V 5X10X1 3 FW5
14 411 141 6705 WASHER SPR 5 3 SW5
15 630 000 7756 BOLT,HEX-SCT 3 M5X12
15 411 036 8609 SCR PAN+SW+W 5X12 1
16 630 114 2906 FILTER,NOISE 1 NF1 645BC-04D-006
17 411 088 1702 WASHER V 5X10X1 4 FW5 F
18 411 008 2109 WASHER SPR 5 4 SW5 F
19 411 043 6803 SCR PAN 5X12 4 M5X12 PAN
31 630 099 6272 PLATE 1 645BC-04V-007
32 411 141 4107 WASHER V 5X10X1 4 FW5
33 411 141 6705 WASHER SPR 5 4 SW5
34 630 000 7756 BOLT,HEX-SCT 4 M5X12
36 630 099 2090 BREAKER 1 CB200 645BC-04D-036
37 630 049 1241 COVER 1 645BC-04D-041
38 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
39 411 008 1706 WASHER SPR 4 3 SW4 F
40 630 000 9286 MACHINE SCREW 3 M4X50 PAN
41 630 049 1234 HANDLE 1 645BC-04D-037
42 630 054 9676 MECH PARTS 1 645BC-04D-038
52 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
53 411 008 1706 WASHER SPR 4 2 SW4 F
54 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
55 630 088 9543 CIRCUIT PROTECTOR 1 CB202 645BC-04D-051
65 630 094 3283 TERMINAL 1 645BC-04D-039
66 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
67 411 008 1706 WASHER SPR 4 2 SW4 F
68 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
71 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 645BC-04D-043
72 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
73 411 008 1706 WASHER SPR 4 1 SW4 F
74 411 043 5004 SCR PAN 4X8 1 M4X8 PAN
75 411 114 7807 SCR PAN+SW+W 4X10 2
82 630 001 0220 WASHER 2 BW5
83 411 141 6705 WASHER SPR 5 2 SW5
84 630 000 7787 BOLT,HEX-SCT 2 M5X25
85 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
86 411 113 9109 SCR TRS 5X10 1 M5X10 TRS
91 630 117 2361 TERMINAL 1 645BC-04D-076
MODEL TDM-3000E-2
0208-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
108
8-1
92 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
93 411 008 1706 WASHER SPR 4 2 SW4 F
94 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
95 630 094 5737 CAPACITOR,SPECIAL 3 645BC-04D-074
96 630 118 6740 ACCESSORY,WIRING 1 645BC-04D-075
97 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
98 411 008 1706 WASHER SPR 4 2 SW4 F
99 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
