83 Key No. P AR T No. P A R T NAME Q’ty REMARKS NOTE MODEL TDM-3000E-2 0208-001 5-3 1 630 028 9493 GEAR 2 645H--04H-006 2 630 000 8951 SET SCREW 4 M5X8 SET 3 630 053 4122 SHAFT 1 645H--04B-009 4 630 028 9480 GEAR 2 645H-…
MODEL TDM-3000E-2
0208-001
82
R コンベア部 R CONVEYOR SECTION
Fig. 5-3 ドライブシャフト Driving Shaft
5
4
5
50
4
3
12
11
2
1
6
6-1
7
8
9
6
6-1
7
8
9
14
13
22
22
2
1
Fig.5-3
TDM-3000E-2
83
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3000E-2
0208-001
5-3
1 630 028 9493 GEAR 2 645H--04H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 053 4122 SHAFT 1 645H--04B-009
4 630 028 9480 GEAR 2 645H--04H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 2 645H--04H-005
6 -1 630 042 2115 WASHER 4 645H--04H-014
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7770 BOLT,HEX-SCT 4 M5X20
11 630 008 1268 COUPLING 1 645H--04H-008
12 630 000 8944 SET SCREW 4 M5X6 SET
13 630 063 2989 COVER 1 645H--04B-018
14 630 000 8920 SET SCREW 2 M4X6 SET
21 630 063 2965 COVER 1 645H--04B-034
22 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
50 630 082 6159 NAME PLATE,PARTS 1 645H--04B-037
MODEL TDM-3000E-2
0208-001
84
R コンベア部 R CONVEYOR SECTION

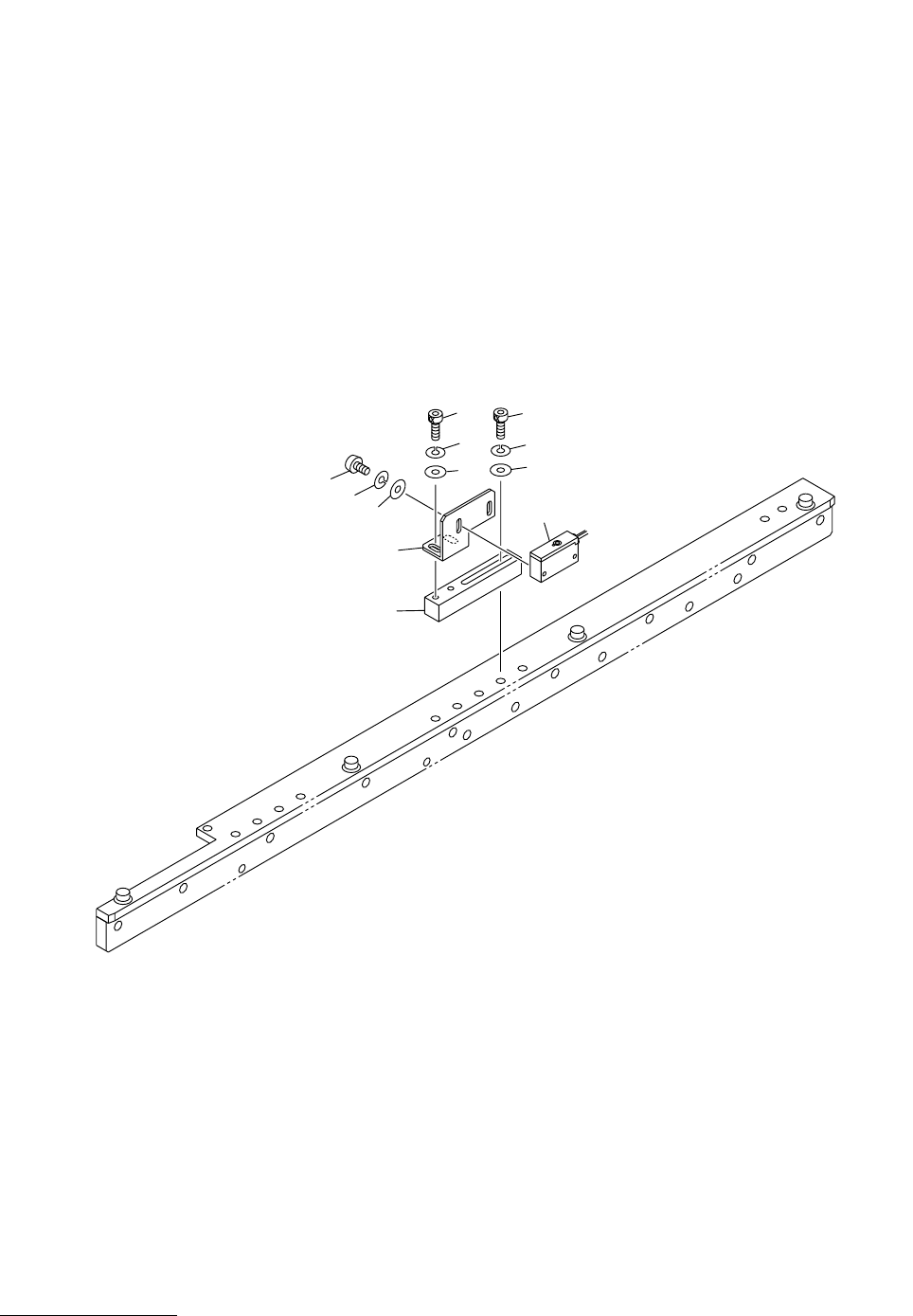

Fig. 5-4 基板検出部、基板ストッパ P.C.B.Detector, P.C.B.Stopper
9-1
9-2
9-3
2
6
7
1-1
8
3
4
5
1
Fig.5-4
TDM-3000E-2
