MEMO
MODEL TDM-3000E-2
0210-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
134
8-11
54 630 000 7749 BOLT,HEX-SCT 6 M5X10
55 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 645T--04U-001
56 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
57 411 086 4408 WASHER SPR 3 4 SW3 F
58 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
65 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
66 411 008 1706 WASHER SPR 4 2 SW4 F
67 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
68 630 099 1352 FUSE HOLDER 1 645DB-04D-011
68 423 026 0609 FUSE 250V 0.5A 1 F150 645DB-04D-009
69 630 049 3801 TERMINAL 5 645DB-04D-024
70 630 049 3733 ACCESSORY,WIRING 1 645DB-04D-023
72 630 049 3702 ACCESSORY,WIRING 1 645DB-04D-021
73 630 049 3672 BRACKET,WIRING 2 645DB-04D-022
74 630 061 0987 RELAY 1 645H--04D-031
74 -1 630 061 0994 SOCKET 1 645H--04D-034
74 -2 630 051 2304 RELAY 4 CR21,38,27,28 645H--04D-033
75 -1 630 061 0994 SOCKET 1 645H--04D-034
75 -2 630 051 2304 RELAY 2 CR39,29 645H--04D-033
75 -3 630 061 1427 ACCESSORY,WIRING 1 645H--04D-032
76 630 057 2094 TRANSFORMER,POWER 1 T2 645H--04D-005
77 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
78 411 008 1706 WASHER SPR 4 2 SW4 F
79 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
82 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
83 411 008 1706 WASHER SPR 4 2 SW4 F
84 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
85 630 099 1352 FUSE HOLDER 1 645FB-04D-036
85 -1 423 022 8005 FUSE 250V 1A 1 F113 645FB-04D-037
86 630 049 3672 BRACKET,WIRING 2 645FB-04D-055
87 630 049 3801 TERMINAL 1 645FB-04D-054
88 630 049 3733 ACCESSORY,WIRING 1 645FB-04D-056
106 411 036 8609 SCR PAN+SW+W 5X12 5
107 630 117 2057 WIRE PARTS 5 645FB-04D-080
108 411 042 3001 SCR PAN 4X10 5 M4X10 PAN
111 630 051 5763 WIRE PARTS 2 645FB-04D-016
112 411 088 1702 WASHER V 5X10X1 2 FW5 F
113 411 008 2109 WASHER SPR 5 2 SW5 F
114 411 140 6409 SCR PAN 5X16 2 M5X16 PAN
116 411 036 8609 SCR PAN+SW+W 5X12 6
MEMO
MODEL TDM-3000E-2
0208-001
136
電気制御部 ELECTRICAL SECTION

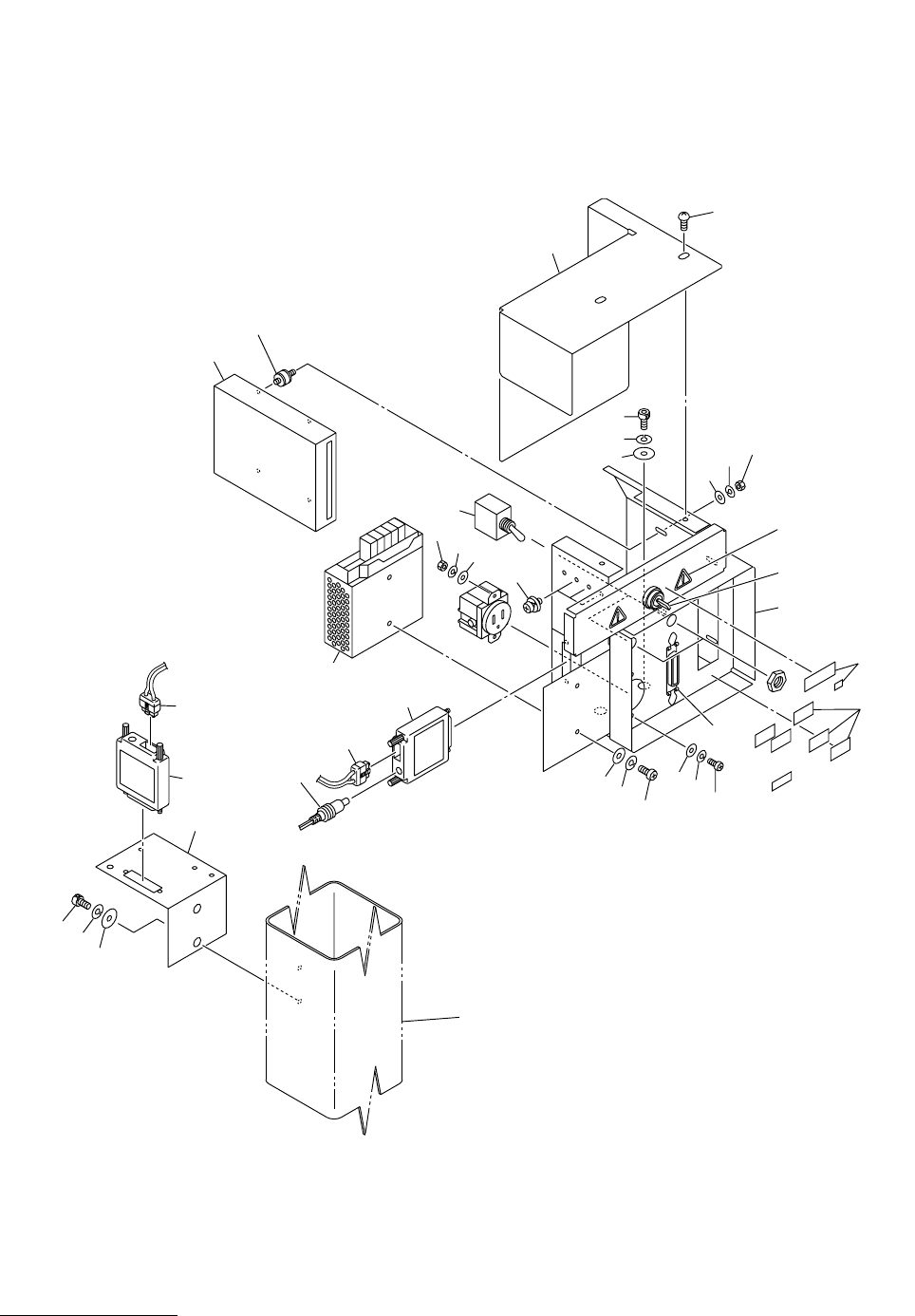

Fig. 8-12 コンソールボックス Console Box
10
4
5
6
1
27
50
49
27-1
38
37
36
7
8
9
23
24
25
28
29
30
41
39
41
42
42
43
51
52
53
54
35
21
22
32
31
2
See Fig.1-1
Key No.1
Fig.8-12
TDM-3000E-2
