MEMO
MODEL TDM-3000E-2
0208-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
66
53 630 031 0399 BEARING,RADIAL 36 645G--04H-001
53 -1 630 089 7845 COVER 16 645G--04B-038
54 630 067 6839 BELT,ROUND 2 645G--04H-002
56 630 064 0731 GUIDE(OKU) 1 645G--04B-013
57 630 065 6503 GUIDE 1 645G--04B-014
58 411 141 4008 WASHER V 4X9X0.8 10 FW4
59 411 141 2905 WASHER SPR 4 10 SW4
60 630 000 7633 BOLT,HEX-SCT 10 M4X12
61 630 053 0773 SUPPORT 1 645G--04B-021
62 411 141 4008 WASHER V 4X9X0.8 2 FW4
63 411 141 2905 WASHER SPR 4 2 SW4
64 630 000 7626 BOLT,HEX-SCT 2 M4X10
91 630 001 0237 WASHER 3 645G--04H-025
92 411 141 3001 WASHER SPR 6 3 SW6
93 630 000 7886 BOLT,HEX-SCT 3 M6X16
4-1
MEMO
MODEL TDM-3000E-2
0208-001
68
L コンベア部 L CONVEYOR SECTION

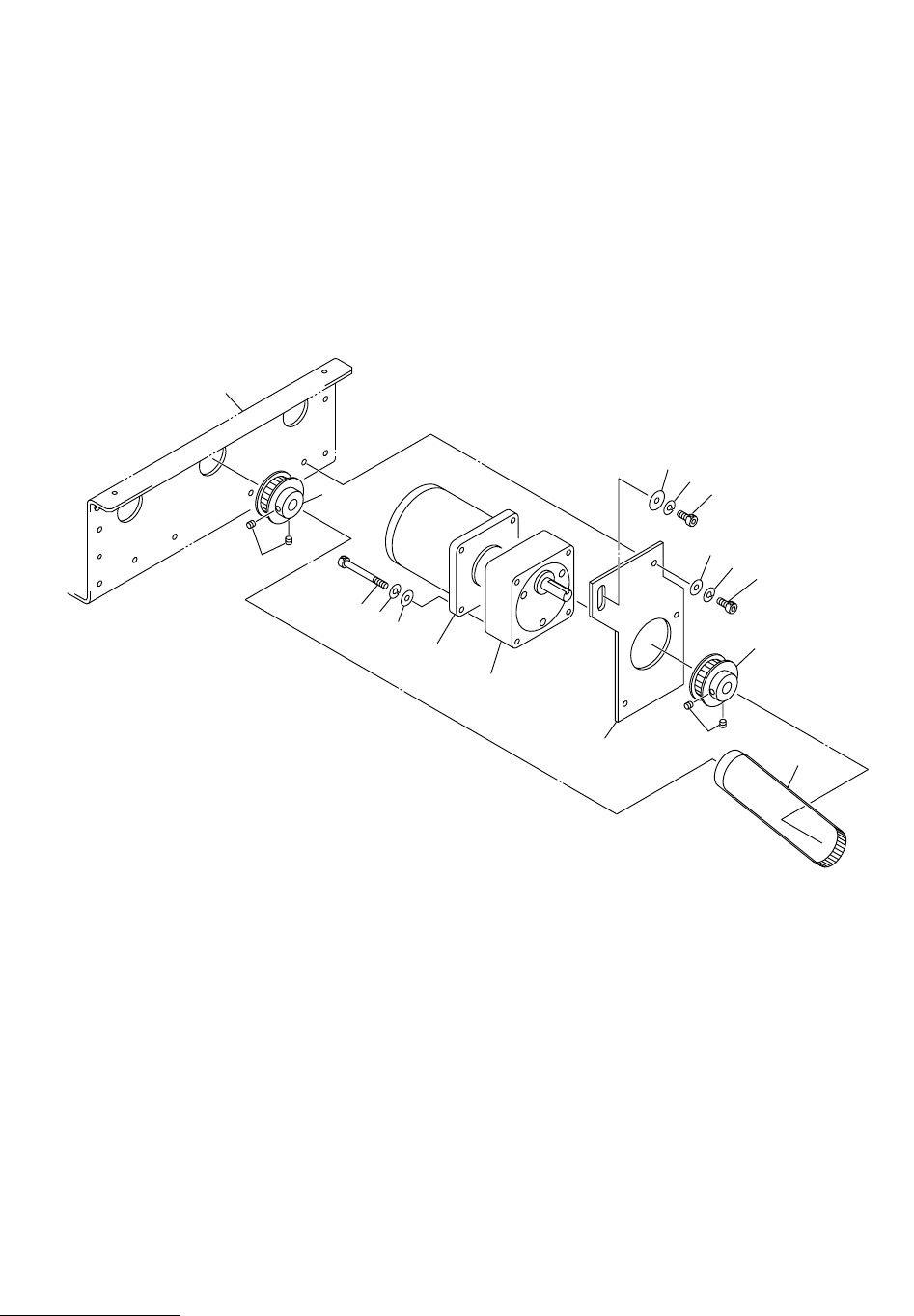

Fig. 4-2 コンベア駆動部 Conveyor Driver
Fig.4-2
TDM-3000E-2
See Fig.4-1
Key No.2
9
1
7
7
8
8
13
14
15
10
11
12
5
2
6
3
4
