4.0 COMPONENT DIMENSIONS

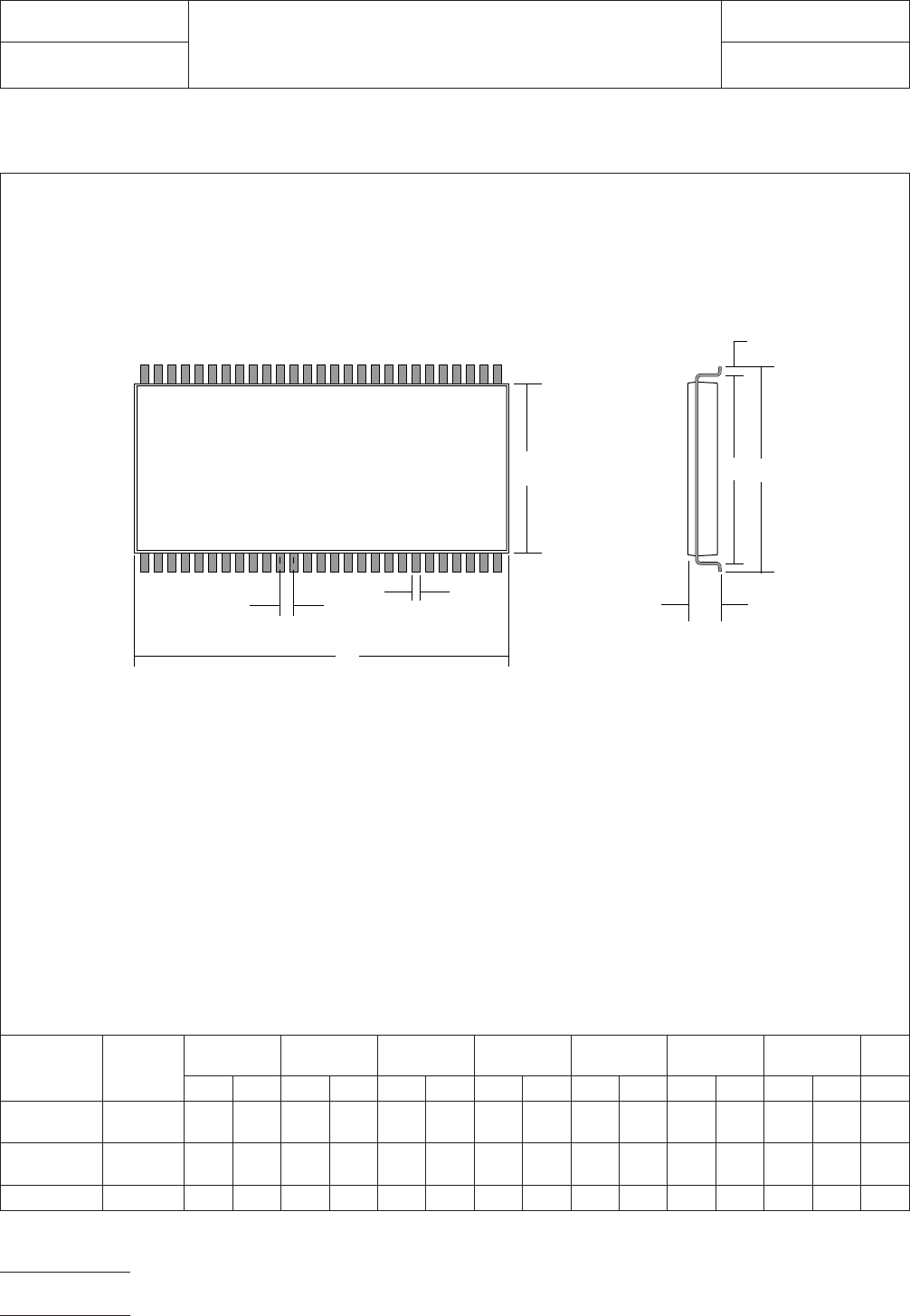

Figure 2 provides the component dimensions for SSOIC components.
Component
Identifier
JEDEC
Number
L (mm) S (mm) W (mm) A (mm) B (mm) H (mm) T (mm)
P
(mm)
min max min max min max min max min max min max min max basic
SS048 M0118
AA
10.03 10.67 7.99 8.95 0.20 0.30 7.40 7.60 15.75 16.00 2.41 2.20 0.51 1.02 0.635
SS056 M0118
AB
10.03 10.67 7.99 8.95 0.20 0.30 7.40 7.60 18.29 18.54 2.41 2.20 0.51 1.02 0.635
S064 M0117 14.00 14.50 12.40 13.05 0.30 0.45 11.90 12.10 26.17 26.43 1.92 2.00 0.51 0.80 0.800
Figure 2 SSOIC component dimensions
▼
▼
▼
▼
▼
▼
W
B
P
▼
▼
A S
▼
▼
▼
▼
H
▼
T
L
▼
▼
IPC-782-9-2-2
IPC-SM-782
Subject
SSOIC
Date
5/96
Section
9.2
Revision
A
Page2of4
5.0 LAND PATTERN DIMENSIONS
Figure 3 provides the land pattern dimensions for SSOIC
components. These numbers represent industry consensus
on the best dimensions based on empirical knowledge of fab-
ricated land patterns.
In the table, the dimensions shown are at maximum material
condition (MMC). The least material condition (LMC) should
not exceed the fabrication (F) allowance shown on page 4.
The LMC and the MMC provide the limits for each dimension.

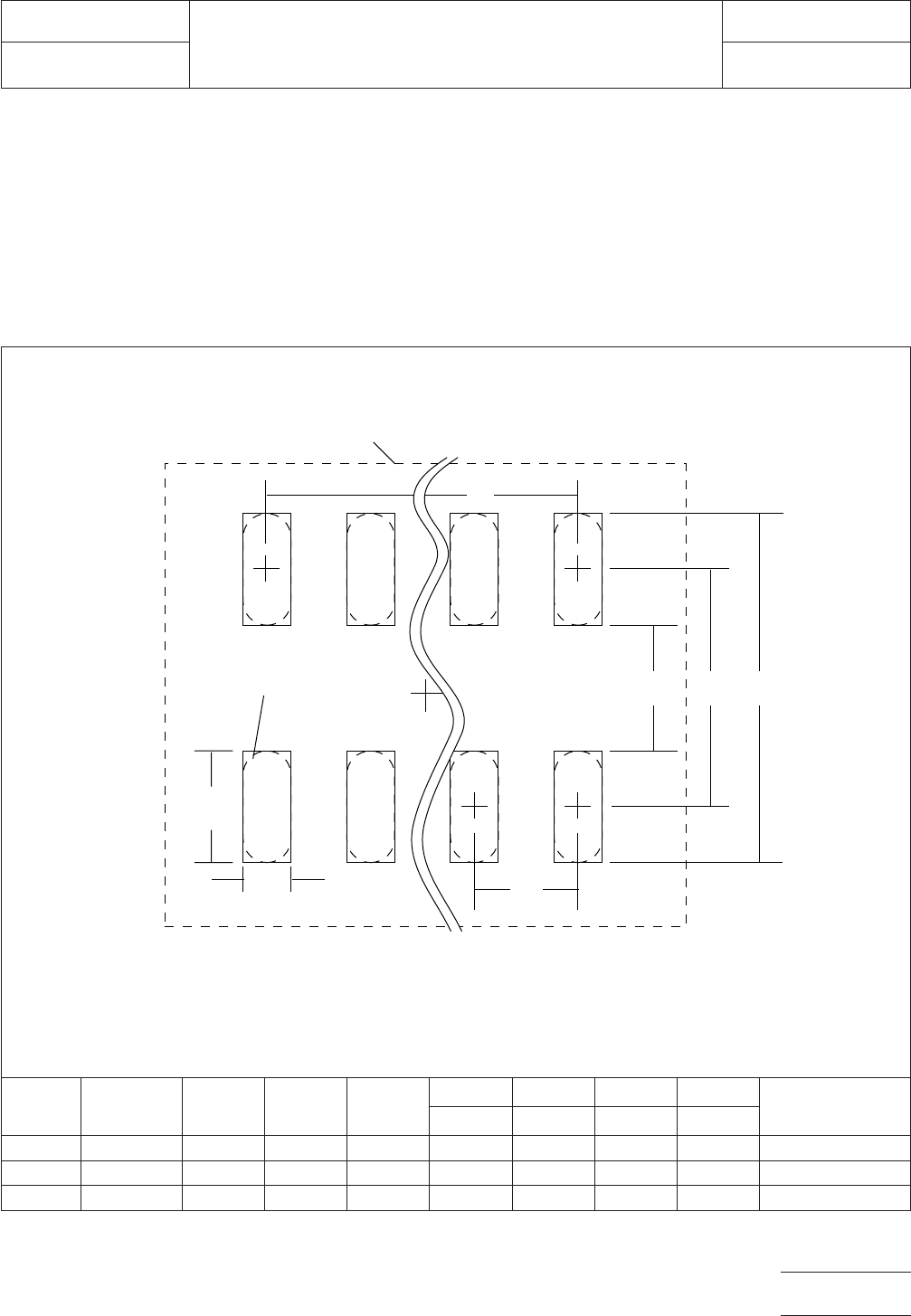

The dotted line in Figure 3 shows the grid placement court-
yard which is the area required to place land patterns and
their respective components in adjacent proximity without
interference or shorting. Numbers in the table represent the
number of grid elements (each element is 0.5 by 0.5 mm) in
accordance with the international grid detailed in IEC publica-
tion 97.
RLP No.
Component
Identifier Z (mm) G (mm) X (mm)
YCDE
Placement Grid
(No. Grid
Elements)ref (mm) ref (mm) ref (mm) ref (mm)
330A SS048 11.60 7.20 0.40 2.20 9.40 14.61 0.64 24x34
331A SS056 11.60 7.20 0.40 2.20 9.40 17.15 0.64 24x38
332A S064 15.40 11.40 0.50 2.00 13.40 24.80 0.80 32x54
Figure 3 SSOIC land pattern dimensions
▼
D
X
▼
▼
E
▼
▼
GCZ
▼
▼
▼
▼
▼
▼
▼
Full radius typical
Grid placement courtyard
▼
▼
Y
▼
▼
IPC-782-9-2-3
IPC-SM-782
Subject
SSOIC
Date
5/96
Section
9.2
Revision
A
Page3of4
6.0 TOLERANCE AND SOLDER JOINT ANALYSIS

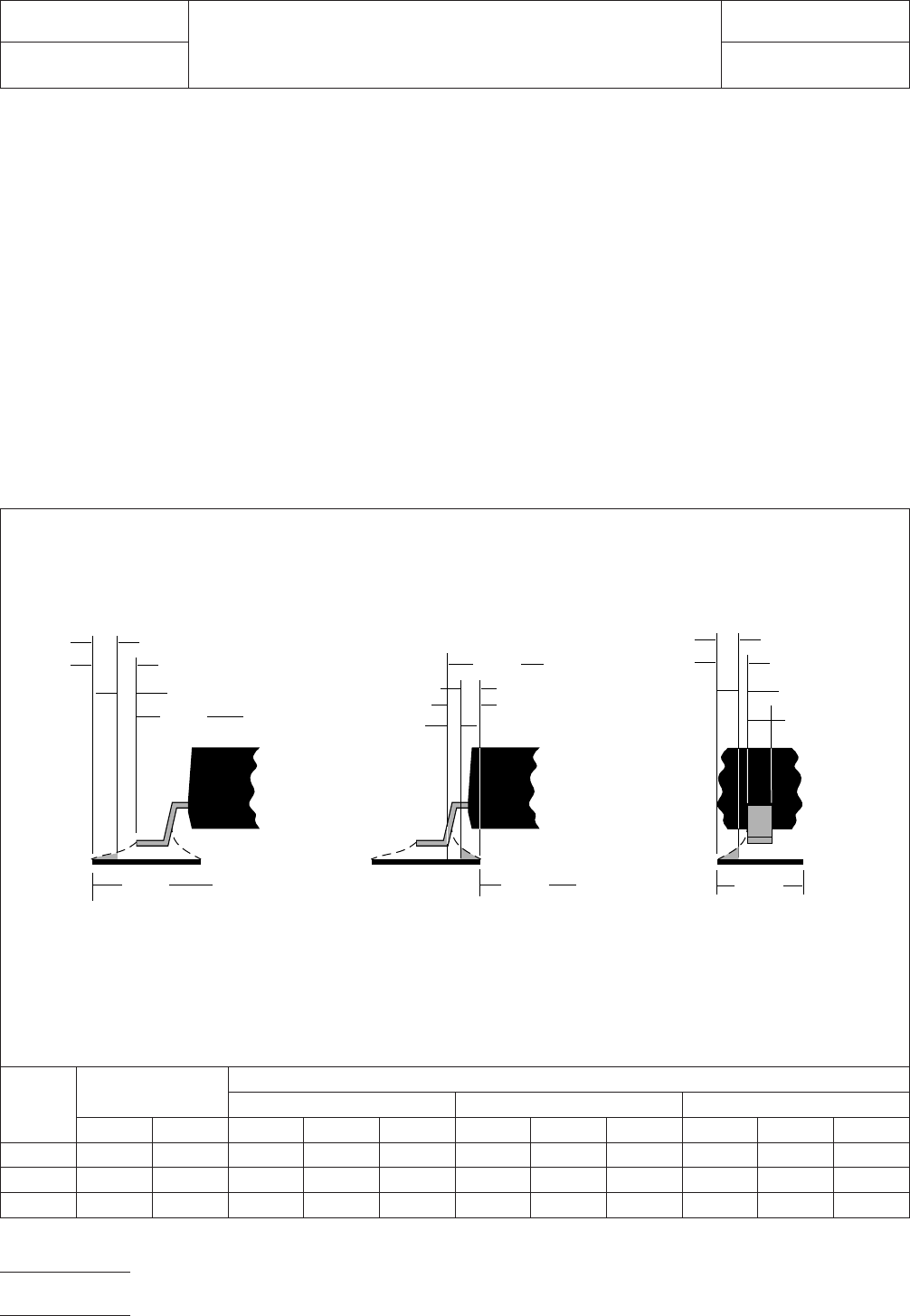

Figure 4 provides an analysis of tolerance assumptions and
resultant solder joints based on the land pattern dimensions
shown in Figure 3. Tolerances for the component dimensions,
the land pattern dimensions (fabrication tolerances on the
interconnecting substrate), and the component placement
equipment accuracy are all taken into consideration.
Figure 4 provides the solder joint minimums for toe, heel, and
side fillets, as discussed in Section 3.3. The tolerances are
addressed in a statistical mode, and assume even distribution
of the tolerances for component, fabrication, and placement
accuracy.
Individual tolerances for fabrication (‘‘F’’) and component
placement equipment accuracy (‘‘P’’) are assumed to be as
given in the table. These numbers may be modified based on
user equipment capability or fabrication criteria. Component
tolerance ranges (C
L
,C
S
, and C
W
) are derived by subtracting
minimum from maximum dimensions given in Figure 2. The
user may also modify these numbers, based on experience
with their suppliers. Modification of tolerances may result in
alternate land patterns (patterns with dimensions other than
the IPC registered land pattern dimensions).
The dimensions for minimum solder fillets at the toe, heel, or
side (J
T
,J
H
,J
S
) have been determined based on industry
empirical knowledge and reliability testing. Solder joint
strength is greatly determined by solder volume. An observ-
able solder fillet is necessary for evidence of proper wetting.
Thus, the values in the table usually provide for a positive sol-
der fillet. Nevertheless, the user may increase or decrease the
minimum value based on process capability.
RLP No.
Tolerance
Assumptions (mm)
Solder Joint
Toe (mm) Heel (mm) Side (mm)
FPC
L
T
T
min J
T
max C
S
J
H
min J
H
max C
W
J
S
min J
S
max
330A 0.10 0.10 0.64 0.46 0.79 0.96 0.39 0.88 0.10 0.01 0.10
331A 0.10 0.10 0.64 0.46 0.79 0.96 0.39 0.88 0.10 0.01 0.10
332A 0.10 0.10 0.50 0.44 0.70 0.65 0.49 0.82 0.15 0.00 0.10
Figure 4 Tolerance and solder joint analysis
Zmax
Lmin
▼
▼
▼
▼
1
/2 T
T
J
T
min
Zmax = Lmin + 2J
T
min + T
T
Where:
J
T
min = Minimum toe fillet
T
T
= Combined tolerances
at toe fillet
Smax
J
H
min
Gmin = Smax - 2J
H
min - T
H
Where:
J
H
min = Minimum heel fillet
T
H
= Combined tolerances
at heel fillet
1
/2 T
H
Xmax
Xmax = Wmin + 2J
S
min + T
S
Where:
J
S
min = Minimum side fillet
T
S
= Combined tolerances
at side fillet
▼
▼
Toe Fillet
▼
▼
▼
Heel Fillet Side Fillet
▼
▼
▼
▼
▼
J
T
max
J
H
max
J
S
min
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
Gmin
▼
1
/2 T
S
J
S
max
▼
▼
▼
Wmin
▼
IPC-782-9-2-4
IPC-SM-782
Subject
SSOIC
Date
5/96
Section
9.2
Revision
A
Page4of4
